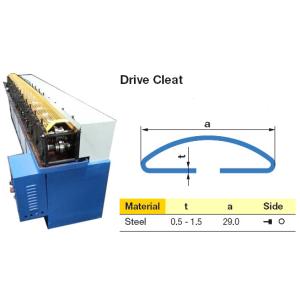

C Drive cleat Machine
Roll Forming machine for production C profile Drive cleat of duct joint
The C profile Drive cleat is as a member in this HVAC ducting
industry, manufactured by roll forming machine. We specialize in
Custom Roll Forming industry, and provide cold roll forming
machines and equipment for all types of industries, with furnished
the special metal sheet cold roll forming equipments. The scope of
supply to embrace complete roll form systems or production lines is
to be extended. It is the advantage for us to supply you the
quality machine.
Technology Specification - C profile Drive cleat Roll Forming Machine
C profile Drive cleat Roll Forming Machine mainly consists of
conic, guide equipment, leveling system, roll forming system,
cutting system, run-out table, hydraulic station, electric control
cabinet.
Main Parameter -C profile Drive cleat Roll Forming Machine
| Raw material: | GI steel strip |
| Raw material thickness capacity (mm): | 1.0mm. |
| Forming roller station quantity: | About 15 Stations |
| Forming roller material | CR12, AFTER treatment. HRC58º-60ºc |
| Roller shaft diameter | Φ40mm |
| Station side steel plate thickness | 25mm |
| Motor power | 3kw, 3xAC380v, 50HZ |
| Weight (KG): | About 2000kg |
| Line speed | Adjustable, 0-10m/min |
| Line Dimension (L*W*H)mm: | 7500x750x1500 |
C profile Drive cleat
The custom roll forming profile is welcome!
