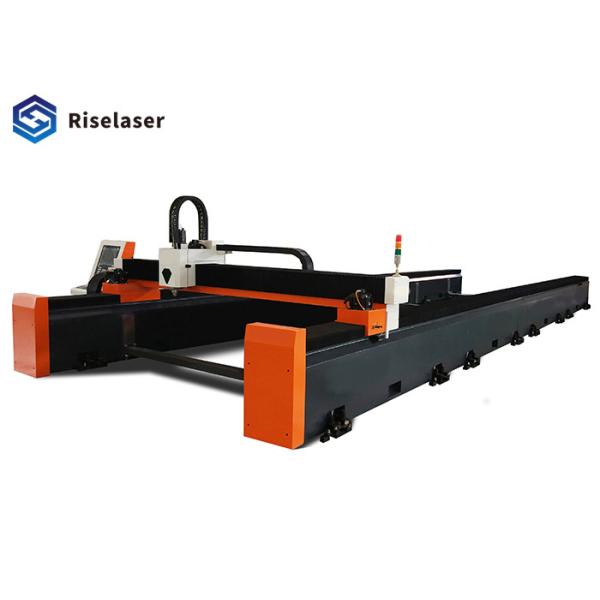

    2400x400cm Metal Fiber Laser Cutting Machine With IPG Laser Source

    Ask Lasest Price
    Brand Name : Riselaser
    Model Number : RL-24040C
    Certification : ISO, ce
    Price : Negotiable
    Supply Ability : 10 SETS/MONTH
    Delivery Time : 2-3 MONTHS
    • Product Details
    • Company Profile

    2400x400cm Metal Fiber Laser Cutting Machine With IPG Laser Source

    2400x400cm Metal Fiber Laser Cutting Machine With IPG Laser Source


    Description

    Ultra big size laser cutting machine supplier cutting machine is a set of laser cutting equipment with integration of light and machine.
    HSF24040G CNC fiber laser cutting machine is suitable for cutting and processing metal materials such as stainless steel, carbon steel, alloy steel, silicon steel, galvanized steel plate, aluminum alloy, and titanium alloy.
    The workpiece is fixed, and the gantry moving structure has good rigidity and high precision. The X-axis and Y-axis use AC servo motors to drive rack and pinion feeds. Among them, the X axis adopts gantry double drive, and the Z axis adopts AC servo motor to drive the ball screw feed. The rack and pinion are driven on both sides, with stable transmission, fast running speed, high acceleration, and good dynamic performance, which are in line with the characteristics of laser cutting technology.


    Specifications


    Cutting Area24000×4000 mm
    X-axis24100 mm
    Y-axis4050 mm
    Z-axis≥150 mm
    Max positioning speed (single axis)40 m/min(Vertical),50 m/min(Horizontal)
    Max positioning speed (XY combined)60 m/min
    Machine Tool moving accuracy0.05 mm
    Machine Tool re-positioning accuracy0.025 mm
    Machine noise level<75db
    VoltageThree phase 380V±5%/50Hz
    Machine Dimension(LxWxH))28×6×1.6m
    Machine Tool powerAbout 30kW
    Machine powerAbout 90KW
    Main components
    Cutting head: Adopting the original German Precitec brand, procutter cutting head, with automatic surface tracking, automatic focusing, high-pressure cutting, auxiliary cooling nozzle and other functions. Stable and reliable performance, easy to use. It can perform high-pressure and low-pressure cutting, and has a non-contact height automatic tracking system.

    Height tracking sensor system: Adopting the German Precitec brand, procutter high-performance non-contact capacitive sensor, which can withstand air pressure ≥2.5MPa, and has higher tracking accuracy and stability during the stainless steel plate cutting process. At the same time, the stainless steel plate with film can be cut directly.

    Supports automatic cutting of various corners

    The corner can be automatically processed according to the corner strategy;

    Outer winding, rounding, cornering process conversion, suspension, etc.


    Application

    suitable for cutting and processing metal materials such as stainless steel, carbon steel, alloy steel, silicon steel, galvanized steel plate, aluminum alloy, and titanium alloy.
