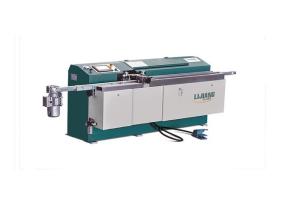

Automatic Butyl Rubber Coating Machine
Automatic Butyl Rubber Coating machine is a special equipment for
the production of making double glazing glass. The main role is to
melt butyl rubber evenly on the aluminum frame.It is the special
equipment in the aluminum groove type insulating glass production
and processing technology. As one of the important equipment of
producing insulating glass, the effect of butyl glue is directly
related to the sealing of insulating glass. The equipment is
automatic one, easy to operate and convenient to use.
Main Features:
1. Automatically identify the width of aluminum bar, the glue
nuzzle can be automatic adjust,and the integrated control of quick
opening valve ensures the consistency of double-sided gluing
2.PLC control system, touch screen interface
3. It can save the glue consumption compared with the ordinary
butyl rubber machine, and the gluing can reach 7g / m
4.The critical part of the hydraulic system using German imports of
components to ensure that the plastic evenly full
5. Unique design structure, with automatic exhaust function, to
ensure continuous glue application
6.Non adhesive synchronous belt is used, and talcum powder is not
needed for cleaning
7.Fast preheat, improve work efficiency
8.with preheating function
9.Quickly coating speed,can up to 47m/min
10. It is convenient and practical to use movable vertical and
horizontal sealant
11. It is convenient to adjust the height of the crossbeam and
solve the problem of exposed white effectively and conveniently
12. Touch screen operation, simple and practical
13. The rubber cylinder adopts pull-up structure, which is
convenient for operation
Specification parameters:
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Glue thickness | 0.3-0.5mm |
| Glue width | 3.5mm |
| Aluminum spacer width | 6A - 27A |
| Speed | 5-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5.7KW,50HZ |
| Dimension | 2800×700×900mm(L×W×H) |
| weight | 650kg |
Electrical parameters :
| Name | Original | Brand |
| PLC | China | KINCO |
| Valve | German | HAWE |
| Low voltage electrical apparatus | German | SIEMENS |
| Hydraulic and pneumatic supercharging system | German | MAXIMATOR |
| Frequency converter | China | KINCO |
| Pneumatic components | Taiwan | ARTAC |
| Quick exhaust valve/Vacuum generator | Japan SMC | SMC |
| Travel light | Japan | OMRON |
| Optical fiber | Japan | OMRON |
Optional function :
This machine with big glue barrel with 200L butyl glue, the new
butyl extruder machine will save a lot time of adding glues.
