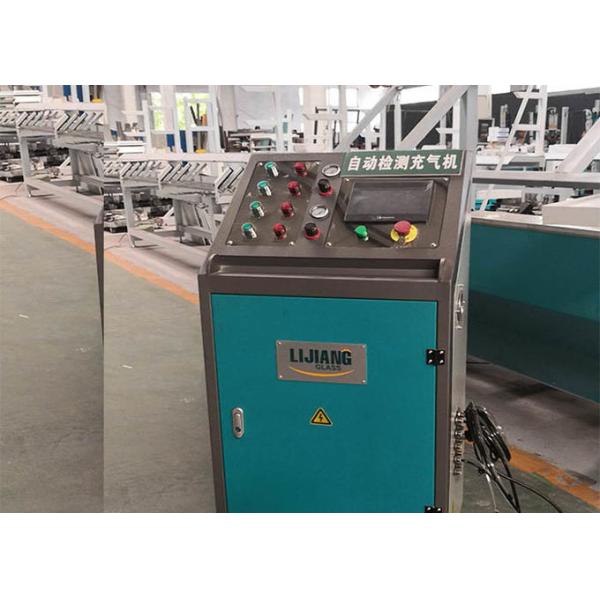

Argon gas filling machine is used to filling argon gas into double
glazing glass units.
Significance of argon filling in double glazing glass production
line
The significance of completing the argon filling of the insulating
glass in the insulating glass production line (the argon filling
operation is conducted at the pressure outlet of the laminating
plate of the insulating glass production line, and the insulating
glass enters the sealant production line after the argon filling
operation to apply structural glue to the insulating glass) is that
the argon filling process of the insulating glass is completed once
in the laminating and sealant production line of the insulating
glass. This process is relatively simple and efficient.
Features of using the argon gas filling machine in the double
glazing glass production line
It is a precise way to inflate argon in the production line of
insulating glass. This precise inflation method has a relatively
fast inflation speed, greatly reducing the argon waste, making the
cost of filling argon in the hollow glass very low. In the whole
cost composition of the hollow glass, the cost of filling argon can
almost be ignored, which is an efficient and economical inflation
method.
Equipment function:
The equipment is specially used for filling inert gas in hollow
glass, automatic inflation, automatic detection, safe and
efficient.
Main Features:
1.Four pieces IGU can be gas filled at the same time within 20s
(1m*1m glass).
2.Pressure alarm device:when the gas filling is up to adjusted
value,it will alarm and stop automatically.
3.The filling process can display on the touch screen.
4.Gas content setting: the customer can set the argon content in
the IGUs according to his own needs.
5.The whole filling process and argon gas content can be displayed
on the screen, and the argon gas content can be observed in real
time.
Main technical parameter:
| Power supply | 220V 50Hz |
| Total power | 0.2kw |
| Dimension | 650*450*1270mm |
