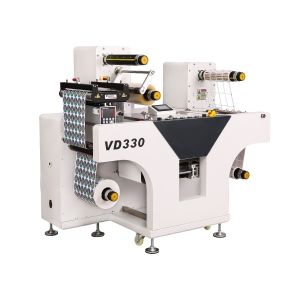

    330mm Roll Label Digital Die Cutter with Slitter and Lamination

    Ask Lasest Price
    Brand Name : EcooGraphix
    Model Number : Ecoo-VD330
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 300SET
    Delivery Time : 30 DAYS
    • Product Details
    • Company Profile

    330mm Roll Label Digital Die Cutter with Slitter and Lamination

    Roll to Roll Digital Label Die Cutter with Slitter and Lamination


    Introduction:

    With the development of society and people's pursuit of product diversification, more and more products need to be labeled and customized. Label printing company and some enterprises need digital label printers to save printing costs and time costs. Lack of labor force, the operators who are professional for traditional printing machine are becoming less and less, The advantage of digital products are that easy to operate and maintain gradually enter the label printing market, it will replace the traditional printing press step by step. Ecoo Digital Label Printer meets the different needs of various customers with suitable printing costs and lower product prices.


    Machine highlights:

    Fast and high precision with full-servo motor

    Intergrate lamination,die-cutter,waste removal,slitter and rewinder togther

    Dual head design automatically adjusts and distributes the cutter

    Sick track sensor can track single eye mark or double eye marks

    Qr code or digital automatic switch file,automatic access to cut files

    Intelligent cutting with trajectory optimization


    Specification
    NameVD330 AI digital die cutter
    ModelVD330
    TechnologyTungsten steel rotary blade
    Cut modeRoll to roll fly
    Max.roll dia.450mm
    Cut speed8m/minute(7cm *15cm) SS
    Cut Precision0.1mm(repeat)
    Media width40-340mm
    Max.Label width320mm
    Max.Label length500mm(multicut up to 4000mm)
    Cut trackCCD camera,sensor black mark/blank
    Cut head qty2set
    Laminate Width330mm
    Film roll diameter250mm
    Max. waste roll Dia.200mm
    Slit speedsame with cut speed
    Slit width10-310mm
    Slit precision0.1mm
    Slitter qty4sets (up to 15sets )
    Rewinder qty1set 3''
    Machine size1150*925*1300mm/1150*925*1420mm
    Machine weight460kgs
    Power supply110-240VAC, 2000W
    Data transfer portUSB2.0/Ethernet 10/100Base-T/GPIO
    SoftwareVorey AI SW (S version)
    File formatPLT,DXF
    Other functions and deviceAuto change cut job(digital number)
    Auto adjust head distance
    Web guide(range +25mm)
    Auto optimize file and set blade dropping point
    Based quantity label can be completed at one time
    Waste remover
    OptionsBuilt-in Film liner remove
    sheet cutter (out)

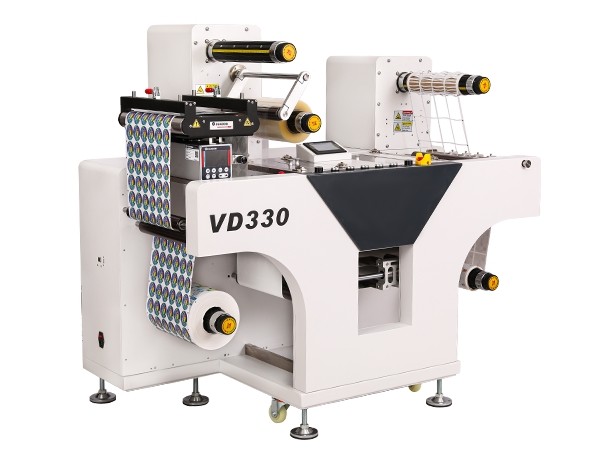

    Quality 330mm Roll Label Digital Die Cutter with Slitter and Lamination for sale
