High Definition Vehicle PTZ IP Camera 100m Night Vision 1080P for
Car Mounted
Specification
• Support kinds of resolution IP network camera max 2.0 megapixel, 5.4.~108.0mm 20x Optical zoom.
• Support IP network and analog dual video output.
• Support dual control. PTZ and camera zoom Could be controlled by RS485 and RJ45 network.
• Built in defrost and defogging device. Can be work well even the temperpature change suddenly.
• Support coordinate display and angle acceptance instructions.
• Aluminum material, Shockroof, anti-corrosion. protection grade IP66 waterproof.
• Horizontal rotation 360°, Vertical rotation -90°~+90°.
• Strong anti shaking function, Strongly anti-seismic,suitable for kinds of vehicle.
• Use powerful infrared light, nigh vision distance about 150meter.
• Vehicle power supply DC10.5V~dc18v.
• Camera with WDR option for better image.
• Local video viewing, remote video viewing and control.
• Support video playback by IE browser or OKAF Dynamic Forensics system software.

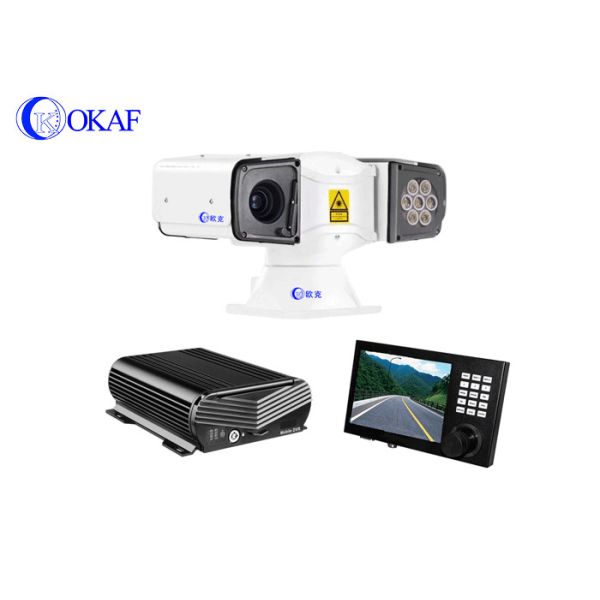

The whole system of vehicle ptz camera
Car Roof PTZ Camera
OKAF PTZ Camera has been widely applies to dynamic forensics system and urban management law enforcement system, mobile commanding
system etc. Our ptz camera is anti shaking, which is ideal for vehicle roof mounted. The IR light assure the long distance 120meter night vision. You
could view the local real time video by screen. You could also remote view and control the video on computer by OKAF software. 2.0MP, 20x or30x Optical zoom camera
movement makes the video more HD and clear.
| |
| Vehicle Screen with Joystick
♦ Integration of 8" monitor and 4-dimensional keyboard makes it
small volume, light weight and superior appearance. ♦ Used for controlling PTZ camera. ♦ 8" LCD resolution:1280*760. ♦ RS485 control output signals, convenient for controlling device
near and in distance. ♦ Input signal is 1 channel VGA HD signal and 1 channel BNC analog
signal. ♦ Baud rate:1200 bps~9600 bps; Protocol:Pelco_P,Pelco_D. ♦ Supply voltage:AC/DC 9V~12V; Power:25W
|
Vehicle 4 channel NVR • Video Input: aviation connector,digital component signal
access.NVR and PTZ camera connect by special aviation cable,
support 1 channel 1080P IP PTZ camera input and 4 channel AHD input
or analog input. • Video Output:1 channel CVBS output, 1 channel VGA output,(1
channel aviation plug). • Hard disk drive: support 1 2.5" HDD/SSD with SATA interface. The
max. storage is 2T. Support 1 SD card at the same time, the max.
storage is 128G. • Network port: RJ45 port / 3G/4G port
• GPS Port: Built in GPS for vechile position. • Power Supply: DC 8~36V. | |
Connecttion of the complete system
