75Kw Generator MAN Special Fire Truck With Telescopic Light

    Buy cheap 75Kw Generator MAN Special Fire Truck With Telescopic Light from wholesalers

    Buy cheap 75Kw Generator MAN Special Fire Truck With Telescopic Light from wholesalers
    • Buy cheap 75Kw Generator MAN Special Fire Truck With Telescopic Light from wholesalers

    75Kw Generator MAN Special Fire Truck With Telescopic Light

    Ask Lasest Price
    Brand Name : CXFIRE
    Model Number : SXF5141TXFZM75
    Certification : CCC, CE, EN, NFPA
    Price : USD160,000-USD200,000
    Payment Terms : T/T, L/C, D/A, D/P
    Supply Ability : 1000 units per year
    Delivery Time : 4-5 months
    • Product Details
    • Company Profile

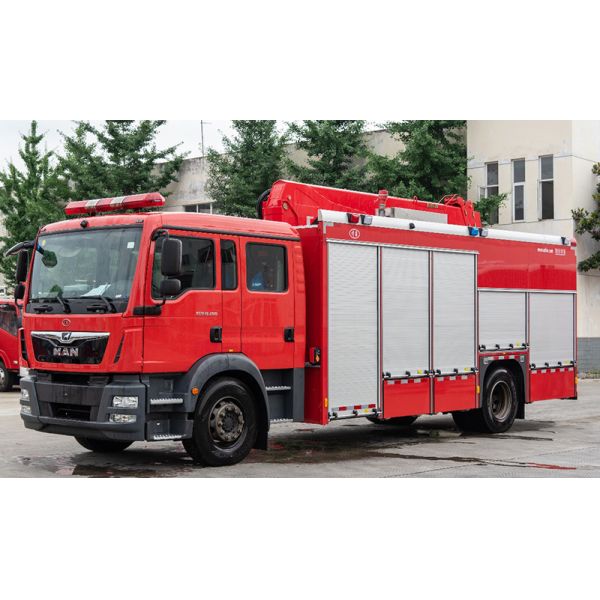

    75Kw Generator MAN Special Fire Truck With Telescopic Light

    MAN Special Lighting Vehicle with Generator and Telescopic Light

    • CXFIRE, founded in the year of 1963, is the biggest fire fighting vehicles manufacturer in China. The annual output is 1000 units fire fighting trucks. The main factory is located in Chengdu of China with an area of 200,000 square meters and 600 employees.
    • CXFIRE exports hundreds of fire trucks every year, and its main markets are Europe, Asia, the Middle East, South America, Africa, etc. Its excellent product quality and perfect after-sales service have won a good reputation.

    1. MAN Special Lighting Vehicle with Generator and Telescopic Light

    1.1 Dimensions: 9650mm×2500mm×3800mm
    1.2 The total mass of full load: 14000kg
    1.3 Number of crew: 6
    1.4 Maximum speed: 90km/h
    1.5 Emission Standard: National V
    1.6 Rated power of on-board generator: 75kW
    1.7 Lighting power: 12×2kW

    2. Chassis

    2.1 Manufacturer: MAN Commercial Vehicle AG
    2.2 Model: MAN TGM 18.290
    2.3 Drive form: 4×2
    2.4 Wheelbase: 5775mm
    2.5 Cab: MAN TGM DK cab, four-door double-row seat
    2.6 Engine model: MAN D0836LFLAL
    2.7 Engine type: inline 6-cylinder, turbocharged, inter-cooled diesel engine
    2.8 Rated power: 213/2400 (kW/rpm)

    3. Superstructure

    No.Main ItemsTechnical Parameters
    3.1Cabin
    3.1.1StructureDouble row cabin with 4 doors
    3.1.2Seats2+4, with 3-point safety belt, the rear 4 seats with SCBA bracket for 6-9L air cylinders, with storage box under the rear 4 seats
    3.2Standardized Sub-frame
    3.2.1MaterialHigh-strength rectangular tube made of special steel
    3.2.2PerformanceThe liquid tank and the sub-frame are connected by elastic connecting seats
    3.3Compartment
    3.3.1MaterialHigh-strength aluminum alloy profiles (Never Rust)
    3.3.2StructureAluminum alloy welded structure. Roof railing with LED light. With aluminum alloy ladder in the rear
    3.4Roller Shutter Door
    3.4.1MaterialAluminum alloy profiles with anodized surface
    3.4.2StructureWith rain-proof groove on the top, lever-type bar, lock handle, pull strap, two-point fixed seat, LED light and sensors.
    3.5Foot Pedals
    3.5.1MaterialHigh quality aluminum alloy
    3.5.2Structure50cm width, bear more than 300kg, anti-slip design, with double lock function. Mounted on the both sides of compartment.
    3.6Superstructure Electric Appliance
    3.6.1Warning Light and SirenLong-row warning light and siren are mounted above cabin. The controller is installed in the driver's cabin.
    3.6.2Strobe LightMounted on the both sides of the compartment
    3.6.3External LightingLED lights are mounted on the both sides of the compartment
    3.6.4Roof LightingLED lights are mounted on the inside of the roof
    3.6.5Side Indicator LightInline yellow warning light is mounted on the side of the compartment and pedals
    3.7Generator
    3.7.1BrandOptional
    3.7.2ModelOptional
    3.7.3Drive TypeGasoline Generator
    3.7.4Rated Power75Kw
    3.7.5Rated Frequency50Hz
    3.7.6Rated Voltage230V
    3.7.7LocationIn storage compartment
    3.8Telescopic Light
    3.8.1BrandOptional
    3.8.2ModelOptional
    3.8.3Power12x2000W
    3.8.4LampQuartz halogen lamp
    3.8.5The Max. Height14m from the ground
    3.8.6Rotation AngleHorizontal:360°
    3.8.7Working Voltage230V
    3.8.8Installation TypeOn the roof

    4. Company Pictures
