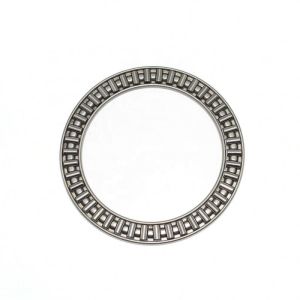

NTB 1730 Thrust Needle Roller Bearing With Washer And Outer Ring 17x30x2mm

    Buy cheap NTB 1730 Thrust Needle Roller Bearing With Washer And Outer Ring 17x30x2mm from wholesalers

    Buy cheap NTB 1730 Thrust Needle Roller Bearing With Washer And Outer Ring 17x30x2mm from wholesalers
    • Buy cheap NTB 1730 Thrust Needle Roller Bearing With Washer And Outer Ring 17x30x2mm from wholesalers
    • Buy cheap NTB 1730 Thrust Needle Roller Bearing With Washer And Outer Ring 17x30x2mm from wholesalers
    • Buy cheap NTB 1730 Thrust Needle Roller Bearing With Washer And Outer Ring 17x30x2mm from wholesalers
    • Buy cheap NTB 1730 Thrust Needle Roller Bearing With Washer And Outer Ring 17x30x2mm from wholesalers

    NTB 1730 Thrust Needle Roller Bearing With Washer And Outer Ring 17x30x2mm

    Ask Lasest Price
    Brand Name : SFT
    Model Number : NTB 1730
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 50000PCS/MONTH
    Delivery Time : 20-45DAYS
    • Product Details
    • Company Profile

    NTB 1730 Thrust Needle Roller Bearing With Washer And Outer Ring 17x30x2mm

    NTB 1730 Thrust Needle Roller Bearings

    Product Description:

    Needle roller bearing is a bearing unit composed of machined outer ring & inner ring,cage and

    needle roller assembly featuring small section height,big load capacity & rigidity,compact

    structure and small size,high rotating accuracy with the structure of disposed inner ring.

    Needle roller bearing is characterized by multiple structures,broad adaptability and easy

    installation.

    It is widely used in automobile,machine toll,lathe,metallurgical,textile,printing industry and

    etc. Various machinery equipment. With this kind of bearing,machine design can realize the

    goal of small-scale & light weight.

    • These bearings consist of a cage made from a steel plate, which is precisely press formed and surfacehardened, and needle rollers with a diameter variation within 2 μ m. They have a rigid structure and a high lubricant-retaining capacity. As they have the lowest sectional height compared with other thrust bearings, they can be used instead of conventional thrust washers and can withstand high-speed rotations with a low coefficient of friction.

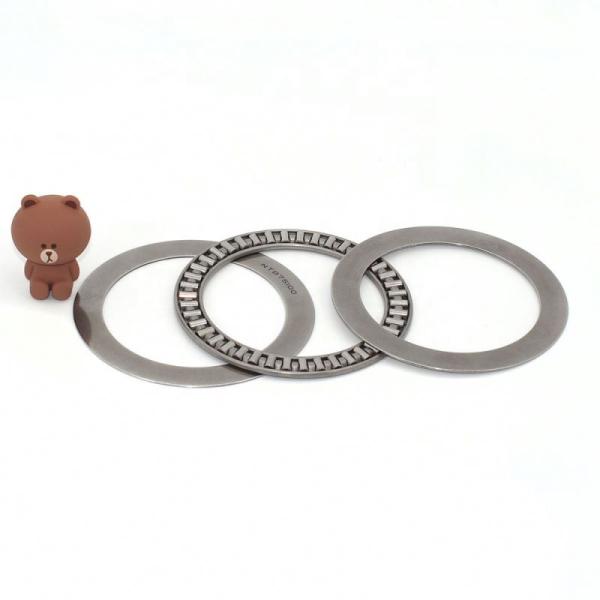

    • Specially designed thin inner rings (WS) and outer rings (GS), and especially thin (1 mm thick) thrust washers (AS), are available for use in various applications.

    • These bearings are generally used by utilizing their inner surface as the guide surface

    Shaft dia. Identification number Boundary dimensions mm
    mm Thrust
    needle roller bearing    		 Mass (Ref.) g Thrust washer Mass (Ref.) g Inner ring Outer ring Mass (Ref.) g d D Dw s B rs min Ci Ce
    10 NTB 1024 3.3 AS 1024 2.9 WS 1024 GS 1024 8 10 24 2 1 2.75 0.3 14 22
    12 NTB 1226 3.8 AS 1226 3.2 WS 1226 GS 1226 8.9 12 26 2 1 2.75 0.3 16 24
    15 NTB 1528 4.1 AS 1528 3.4 WS 1528 GS 1528 9.3 15 28 2 1 2.75 0.3 18 26
    16 NTB 1629 4.3 AS 1629 3.6 WS 1629 GS 1629 9.8 16 29 2 1 2.75 0.3 19 27
    17 NTB 1730 4.5 AS 1730 3.7 WS 1730 GS 1730 10.2 17 30 2 1 2.75 0.3 20 28
    18 NTB 1831 4.7 AS 1831 3.9 WS 1831 GS 1831 10.7 18 31 2 1 2.75 0.3 21 29
    20 NTB 2035 6.1 AS 2035 5 WS 2035 GS 2035 13.8 20 35 2 1 2.75 0.3 23 33
    25 NTB 2542 8.2 AS 2542 6.9 WS 2542 GS 2542 21 25 42 2 1 3 0.6 29 40
    30 NTB 3047 9.4 AS 3047 7.9 WS 3047 GS 3047 24 30 47 2 1 3 0.6 34 45
    35 NTB 3552 10.6 AS 3552 8.9 WS 3552 GS 3552 31.5 35 52 2 1 3.5 0.6 39 50
    40 NTB 40603 22 AS 4060 12.1 WS 4060 GS 4060 42.5 40 60 3 1 3.5 0.6 45 57
    45 NTB 4565 24.5 AS 4565 13.3 WS 4565 GS 4565 53.5 45 65 3 1 4 0.6 50 62
    50 NTB 5070 26.5 AS 5070 14.5 WS 5070 GS 5070 58.5 50 70 3 1 4 0.6 55 67
    55 NTB 5578 33.5 AS 5578 18.5 WS 5578 GS 5578 93 55 78 3 1 5 0.6 61 75
    60 NTB 6085 38.5 AS 6085 22 WS 6085 GS 6085 105 60 85 3 1 4.75 1 66 82
    65 NTB 6590 41.5 AS 6590 23.5 WS 6590 GS 6590 124 65 90 3 1 5.25 1 71 87
    70 NTB 7095 61 AS 7095 25 WS 7095 GS 7095 132 70 95 4 1 5.25 1 75 91
    75 NTB 75100 65 AS 75100 26.5 WS 75100 GS 75100 153 75 100 4 1 5.75 1 80 96
    80 NTB 80105 68.5 AS 80105 28 WS 80105 GS 80105 162 80 105 4 1 5.75 1 85 101
    85 NTB 85110 72 AS 85110 29.5 WS 85110 GS 85110 170 85 110 4 1 5.75 1 90 106
    90 NTB 90120 92 AS 90120 38 WS 90120 GS 90120 250 90 120 4 1 7 1 96 116
    100 NTB 100135 119 AS 100135 50 WS 100135 GS 100135 350 100 135 4 1 7 1 107 131
    110 NTB 110145 129 - - WS 110145 GS 110145 380 110 145 4 - 7 1 117 141
    120 NTB 120155 139 - - WS 120155 GS 120155 410 120 155 4 - 7 1 127 151
    130 NTB 130170 225 - - WS 130170 GS 130170 660 130 170 5 - 9 1 137 165
