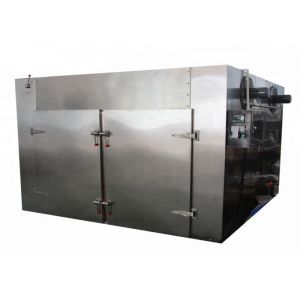

Introduction:
Nearly all hot air cycle within baker, high heating efficiency,
energy saving.
Utilizing forced heat air cycle within baker, without air
separating plate, material can be dried uniformly. vapor, heat
water, powder, FRI all can be used as heating resources.
Low noise, steady operation; temperature auto adjustment; easy
access to temperature control, repair and maintenance.
Various application; all kinds of materials drying; one of most
common drying equipment.
Feature:
Heating source: Vapor, Heat conductive oil, hot water, electric
heating pipe, FRI etc.
Operation temperature: Vapor heating ambient temperature ~140℃, Max
150 ℃.
Electric, FRI, ambient temperature~350 ℃.
Auto-control system and computer control system as option.
Common vapor pressure 0.2~0.8MPa.
Electro-heating (type 1)15kw.
Special requirements should be indicated while ordering.
No standard baker can be produced based on process parameter.
Operation ambient temperature exceed 140 ℃ or less than 60 ℃ should
be marked out while ordering.
Bake vehicle and tray's dimension are standard, changeable.
Bake tray dimension:460×640×45mm
