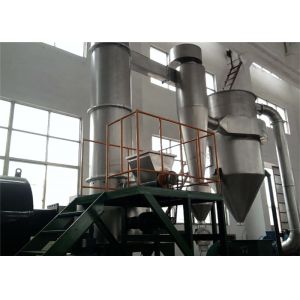

Hot Sale Cheapest Potato Starch Flash Cure Dryer with 10-2000kg/h
Water Evaporation Quantity
Company Description
Jiangsu Shengman Drying Equipment Engineering Co.,Ltd, established
in 2011, known as a local leading high-tech enterprise, is located
in Zhenglu town, Changzhou, Jiangsu, China. Shengman is a
large-scale production enterprise in China drying industry with a
registered capital of 35,000,000 RMB, specialized in designing
&manufacturing various kinds of dryers, granulators, mixers,
grinders ,dust removers, etc. Shengman owns an area of over
200,000㎡, and realizes annual sales of over 70,000,000RMB for
consecutive years. Shengman has passed European Union CE
authentication, ISO 9001 quality management system certification
and got good bank credit for AAA. Now Shengman has been one of the
largest drying equipment production enterprises in East China and
keeping leading the drying industry’s development.
Working principle
Hot air enters into drying chamber from the bottom of dryer with
appropriate spouting speed. Raw material is crushed by
dis-integrator and dried by hot air. After being crushed, raw
material could have bigger surface area, bigger surface area of raw
material and speed difference between raw material with hot air
increase drying efficiency.
Technical parameters
| type | Barrel diameter mm | main machine dimension mm | main machine power kw | treatment wind capacity m/h | water evaporation quantity kg/h |
| XSG-2 | 200 | 250*2800 | 5-9 | 300-800 | 10-20 |
| XSG-3 | 300 | 400*3300 | 8-15 | 600-1500 | 20-50 |
| XSG-5 | 500 | 600*4000 | 12-24 | 1500-4000 | 30-100 |
| XSG-6 | 600 | 700*4200 | 20-29 | 2500-5000 | 40-200 |
| XSG-8 | 800 | 900*4600 | 24-35 | 3000-8000 | 60-600 |
| XSG-10 | 1000 | 1100*5000 | 40-62 | 5000-12500 | 100-1000 |
| XSG-12 | 1200 | 1300*5200 | 50-89 | 10000-20000 | 150-1300 |
| XSG-14 | 1400 | 1500*5400 | 60-105 | 14000-27000 | 200-1600 |
| XSG-16 | 1600 | 1700*6000 | 70-135 | 18700-36000 | 250-2000 |
Performance Characteristics
1. Organic combination of swirling, fluidizing, spraying and
pulverizing and grading techniques.2. Compact equipment, small size, high production efficiency,
continuous production, and realize "small equipment, large
production".
3. Large drying strength, low energy consumption and high thermal
efficiency.
4. The material has short residence time and good finished product
quality, which can be used for drying heat sensitive materials.
5. Negative pressure or micro-negative pressure operation, good air
tightness, high efficiency and elimination of environmental
pollution.
After-sale service:
Provide considerate services to minimize clients’ worries.
1. Assist clients to prepare for the first construction scheme.
2. Install and debug the equipment.
3. Train the first-line operators.
4. Examine the equipment.
5. Take initiative to eliminate the troubles rapidly.
6. Provide technical support.
7. Establish long-term and friendly relationship.
Service commitment:
1. Provide clients one-year warranty to make sure the machine work
well.
2. We always keep certain inventory level of spare parts, which
means the replacements can be sent to you timely.
3. Send every client a preferential quotation.
