22mm Brushless Dc Planetary Gear Motor 24V 8w 3 Phase 0.02nm

22mm 3 phase 24V brushless dc motor match with Powder metallurgy planetary gearbox

The 22mm gearbox has 3 stages of reduction ratio. The first stage has reduction ratios of 1:4 and 1:4.75, the rated tolerance torque is 0.1 NM, max at 0.3NM. The second stage has reduction ratios of 1:16, 1:19, 1:22, 1:26. The rated tolerance torque for stage 2 is 0.4NM, peak torque is 1.2NM. The third stage has reduction ratios of 1:88, 1:104, 1:121 & 1:144. The rated tolerance torque is 0.8 NM, and max at 2.4NM.

The 22BL series is lightweight and space-saving, very suitable for those who are tight in install space.

MOTOR PART Electrical Specification:

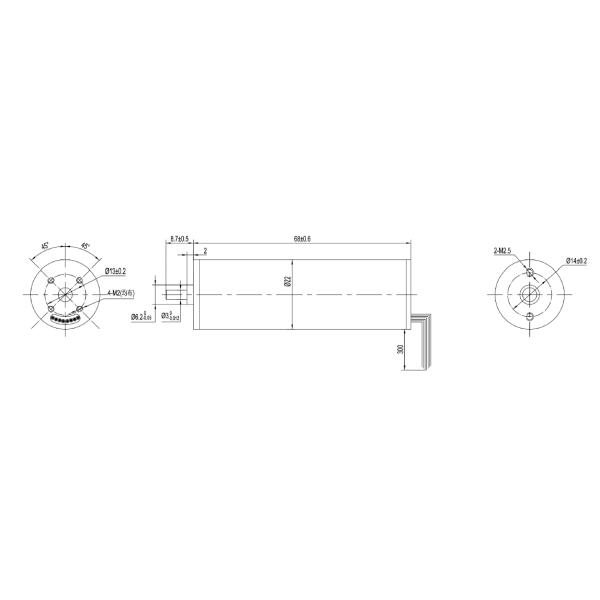

Mechanical Dimension

*Note: The products can be customized by your request. Please contact us for more details.

*Products can match gearbox 22 mm

Wiring Diagram:
