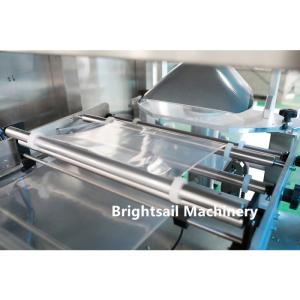

Packing Weight 10g 5kg automatic powder packing machine
BSPM powder filling machine can do the work of bag-making,
weighting, filling, filling the nitrogen, date coding, and
bag-cutting. It is suitable for packing power and granule material
such as milk tea, monosodium glutamate, solid beverage, sugar,
grape sugar, coffee, feedstuff, solid medicine, powder type
additive, and dye, etc.
Optional device for your choice: 1. Date Coder2. Hole Punching Device(Pinhole, Round hole, the butterfly hole)
3. Linking bag control device
4. Air-filling Device
5. Air Exhaust Device
6. Tear Notch Device
7. Nitrogen inflation device
8. Gusset Bag |  |
Main features:
1. Equipped with safety protection, comply with firm’s safety
management requirements.
2. Use intelligent temperature controller to have accurate
temperature, which ensures the artistic and neat seal.
3. Use PLC Servo System and pneumatic control system and super
touch screen to compose the drive control center,which maximize the
whole machine’s control precision ,reliability and intelligentized
level.
4 Touch screen can store the technical parameters of various kinds
of products ,it is unnecessary to reset while products changing.
5. With error indicating system , which help to handle the trouble
immediately.
6. Make pillow bags and hanging bags in terms of customers’
different requirements.
powder filling packing machineautomatic powder packing machinefood
powder packing machine
Technical data:
| Measure method | Auger dosing | Wrighing feedback tracking |
| Bag-making size | (W)80-200 mm (L)100-300 mm | (W)100-250 mm (L) 100-350 mm |
| Filling weight | 10-5000 g(by changing mould) |
| Packaging precision | ≤1% |
| Packaging speed | 25-60 bag/min |
| Power supply | Three phase 380/220 V 50-60HZ |
| Power | 6 kw |
| Pressure | 6-8 kg/cm2 |
| Use tolerance | 0.2 m3/min |
| Weight | 700 kg | 950 kg |
| Dimension | 1300*1500*2600 |
powder filling packing machineautomatic powder packing machinefood
powder packing machine
Process flow diagram:
 |
Screw dosing equipment:
1. Material contact parts are all 304 materials 2. The spiral mold can be replaced to measure different weight
specifications Main control system: 1. One key adjustment of package weight on the touch screen 2. The bag making length is adjusted at any time on the touch
screen 3. The display will show the packaging speed and the number of bags . Auxiliary control: 1. Independent horizontal and vertical seal temperature control,
convenient for adjustment 2. Set the start, stop and emergency stop switches for easy
operation. Cursor detection: Detect the color code of roll film and control the bag length. Ribbon printer: 1. Number of printing lines: 1-3 lines 2. Number of columns to be printed: up to 14 characters in a row 3. Particle size: 2 * 4mm 4. Preheating time: 5-10 minutes |
Other types of machines:
please click the picture ,you can know more about the other types
of machines.
