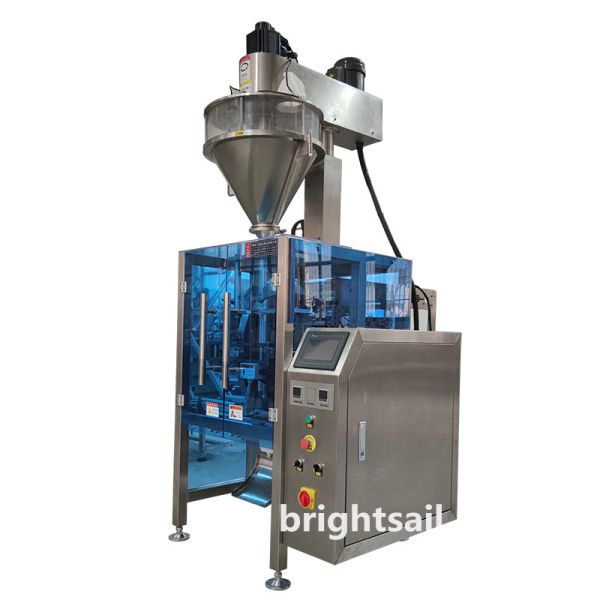

200 To 6000g Weigh Range 25 To 60 Bags Per Min Doypack Powder
Filling Machine
Product introduction: of doypack powder filling machine:
BSPM vertical powder packing machine is suitable for automatic
packing of flour, sugar, milk powder, monosodium glutamate,
condiment, food additive, pesticide, washing powder, health tea
powder, Chinese medicine powder, etc. . The machine is suitable for
quantitative filling and packing of compound flavoring, natural
flavoring, food additive, flavor flavor, flour, milk powder,
protein powder, solid beverage, sugar, monosodium glutamate,
pesticide, veterinary medicine, washing powder, enzyme preparation,
feed additive, chemical industry and new building materials.
Features: of doypack powder filling machine:
1. the machine is novel in design and beautiful in appearance. The
structure is perfect and the technology is advanced.
2. famous PLC computer control system and color touch screen
control board. Make the operation simpler and more efficient.
3. automatic alarm device is set to greatly reduce the loss.
4. the imported servo motor film pulling system, with the control
of the electric eye sensor, has higher precision and better
performance, making the bag shape more perfect.
Technical data:of doypack powder filling machine:
Models | BSPM-320 | BSPM-420 | BSPM-520 | BSPM-620 | BSPM-720 | BSPM-820 |
Bag size(mm) | W:50-150
L:50-200 | W:80-200
L:80-250 | W:100-250
L:100-300 | W:120-300
L:120-350 | W:150-350
L:150-400 | W:200-400
L:200-450 |
Bag Shape | |
Power(kw) | | |
Packaging weight range (powder) (g) | | ≤500 | ≤1500 | ≤3000 | ≤4000 | ≤6000 |
Packing speed (bag /min) | 25-60 (according to material characteristics and packing weight) |
Packaging Accuracy | ±1% (according to material characteristics and packing weight) |
Details: of doypack powder filling machine:
1. Running membrane structure: multi connected structure, stable
running performance of roll membrane.
2. Spiral packing measurement: eliminate spiral packing and ensure
high precision measurement (error within 1%)
3. Double membrane structure: double membrane structure makes the
process of bag making smooth.
4. Pneumatic cutting system: stable pneumatic cutting system, with
photocell, accurate positioning bag cutting.
Application:of doypack powder filling machine:
