Malaysia Classroom White Laminate Folding Door Wooden Acoustic Partition Walls

Ask Lasest Price
Brand Name :	EBUNGE
Model Number :	Type 65 foldable partition wall
Certification :	ISO 9001
Price :	$82-88 per square meter
Payment Terms :	T/T, MoneyGram
Supply Ability :	50000 square meters per month
Delivery Time :	7-15 days

Add to Cart

Product Details
Company Profile

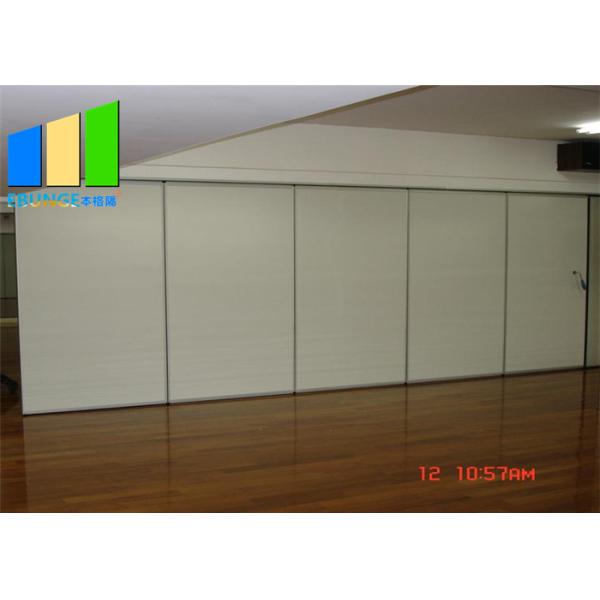

Malaysia Classroom White Laminate Folding Door Wooden Acoustic Partition Walls

Malaysia Classroom White Laminate Folding Door Wooden Acoustic Partition Walls

Wooden acoustic partition wall seal detail

Provide types of acoustical seals indicated that produce wooden acoustic partition wall panels complying with acoustical performance requirements and the following:

Manufacturer's standard PVC seals.

Seals made from materials and in profiles that minimize sound leakage.

Seals fitting tight at contact surfaces and sealing continuously between adjacent panels and between wooden acoustic partition wall perimeter and adjacent surfaces, when wooden acoustic partitionwall is extended and closed.

Each wooden acoustic partition walls panel has a spring loaded top and bottom retractable seal.

Seals are to be operated simultaneously by an easy action, maintenance-free detachable crank handled and engaged by a winding mechanism to ensure optimum contact pressure.

The retractable seal frames are constructed of aluminum with PVC seals at the contact points. Corner seals are fully interlocking.

Technical Information

Series	BG65	BG85	BG100
Panel suspension	Top hung only	Top hung only	Top hung only
Track system	Single or twin point	Single or twin point	Single or twin point
Panel thickness	65mm	80mm / 85mm	100mm
Panel height	Up to 4000mm	Up to 6000mm	Up to 18000mm
Max height	4000mm	6000mm	18000mm
Panel width	600-1230mm	600-1230mm	600-1230mm
Frame construction	Aluminum frame	Aluminum frame	Aluminum frame
Face material	9mm	9mm / 12mm	12mm
Fire safety	Optional Class I or O	Optional Class I or O	Optional Class I or O
Vertical profiles	Aluminum anodised with sealing profiles	Aluminum anodised with sealing profiles	Aluminum anodised with sealing profiles
Retractable seals	Aluminum black with double rubber seals	Aluminum black with double rubber seals	Aluminum black with double rubber seals
Operation of seals	Manual, with supplied operating handle	Manual, with supplied operating handle	Manual, with supplied operating handle
Locking	Optional lock to pass doors	Optional lock to pass doors	Optional lock to pass doors
Pass doors	Single open in panel or double open in two panel	Single open in panel or double open in two panel	Single open in panel or double open in two panel
Sound insulation	20-32dB Rw	28-36dB Rw	32-50dB Rw
Weight	Approx 22-35kg/sq M	Approx 25-40kg/sq M	Approx30-48kg/sq M
Finish Material	Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized)

Foldable partition wall solution

PROBLEM	POSSIBLE CAUSE	PROBABLE SOLUTION
Panels Hanging out of plumb.	1. Loose or broken trolleys. 2. Broken Trolley Support Beam.	1. Tighten loose carries to return panel to plumb. 2. Replace any broken carriers or support beam.
Panels sticking or hard to move.	1. Dirt in the track. 2.less lubricate oil.3. Misaligned track joints. 3. Trolley Broken.	1. Clean track. 2.Spread lubricate oil on the track.2. Align joints. 3. Replace trolley.
Abnormal noise during movement.	1. Broken trolley 2. Misaligned track joints	1. Replace trolley 2. Align joints
Top and bottom seal inoperative	1.Cranking mechanism stripped / broken link to mechanism 2.top seal stuck by the trolley support beam	1. Straighten or replace seal. /. Replace 2.Adjust the size of the hole located on the top seal
Pass doors not latching	1. Strike plate out of adjustment. 2.door jamb over pressure compressed.	1. Readjust strike plate. 2. Reverse previous step to re position the pass door,and not compress the LCP to much pressure
Broken or worn trolleys	1. Bad track joints. 2. 2. Abusive handling at "T" or "L" intersections.	1. Realign track joints & replace trolleys. 2. Replace trolleys and retrain personnel.
Lever closure jamb not extending or operates difficult.	1. Internal mechanism stripped. 2. Limit cables or chains tangled. 3. Tension bolts too tight.	1. Replace mechanism. 2. Adjust limit chains. 3. Adjust tension bolts on mechanism.
