Easy fabrication & Installation Ceramic Coated Aluminum Solid
Panel
Product Overview:
| Material | Aluminum | Aluminum Alloy | 1100 / 3003 / 5005 |
| Total Thickness | 2.0mm——4.5mm (normal), special thickness can be customized. | Surface Finish | Ceramic Coated |
| Class Fire Prevention | A1 | Warranty | 10-20 years |
| Size | 150~3000mm×150~6000mm, Special size can be customized. | Color | Customized |
| Packing | Wooden Box | MOQ | 500㎡ |
Product Information:
WHOLETOPS brand Easy fabrication & Installation Ceramic Coated Aluminum Solid
Panel is composed of ceramic coated surface and aluminum plate. It is
mainly made of high quality aluminum alloy and formed by sheet
metal workshop through a variety of processing techniques. It is a
kind of decoration material for building interior and exterior
walls with superior performance. Its surface coating using advanced
ceramic coating system, which has excellent durability, chemical
corrosion resistance and good hardness and absolutely excellent
fire prevention, insulation performance.
We are affianced in manufacturing and supplying a wide range of Wall Cladding Panel that is used to provided protective covering to the outside of a
building. In order to manufacture the offered product, we make use
of good quality raw material and latest technology. Also, this
product is available in various specifications to meet the diverse
needs of the clients. We are offering this item at industry leading
prices.
Specification:
1. Thickness: 1.5mm, 2.0mm, 2.5mm, 3.0mm, 4.0mm, 5.0mm, 6.0mm,
7.0mm, 8.0mm and so on.
2. Surface finish: PVDF coated / Power coated
3. Aluminum Alloy: 1100, 3003, 5005
Scopes of Application:
Easy fabrication & Installation Ceramic Coated Aluminum Solid

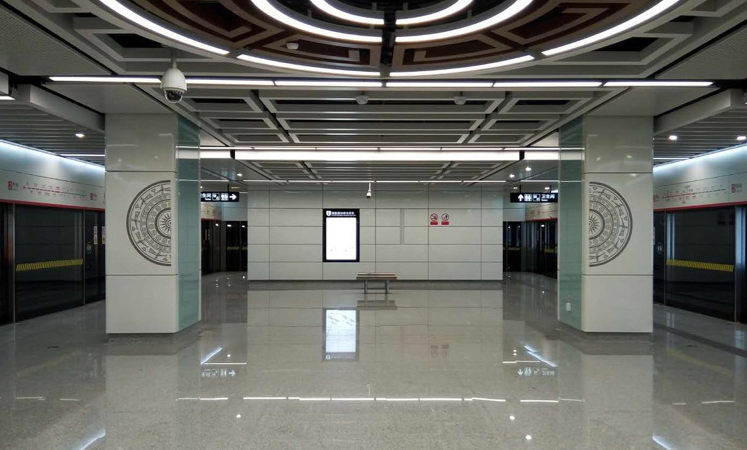

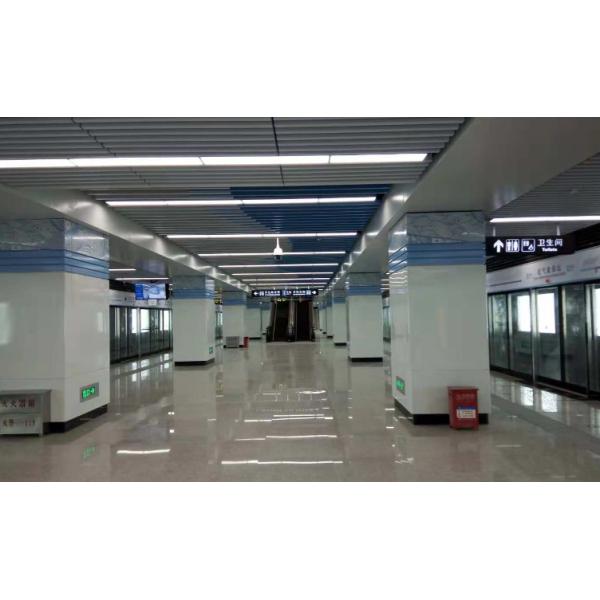

Panel is widely used in subway, high-speed rail, light rail station hall
and platform decoration, office buildings, shopping mall, hotels,
hospitals, stations, stadiums, exhibition halls, airports, and
other building indoor and outdoor decoration, building curtain
wall, fully meet the requirement of environmental protection and
fire prevention.
Product advantages:
1. High hardness and scratch resistance; its hardness ≥ 7H, is 7
times compare with the fluorocarbon (PVDF) coated hardness
2. Silicate ceramic aluminum panel is use water as the solvent, not
including xylene, it is safe and green product
3. At 300 degree, the color will not change and coating will not
damaged. At 600 degrees, The coating film only occur discoloration
without decomposition, It belonging to the incombustible decorative
material, fire rating of A1 (fluorocarbon sheet A2)
4. Inorganic material to eliminate static electricity, so that the
pollutants in the atmosphere will not adhesion, always keep the
gorgeous appearance, It has the self-cleaning function
5. Can provide a variety of color, can adjust the brightness in a
certain range, to meet the different requirements for the color and
luster of buildings, to the designer to provide more vast space
Compare with PVDF coated solid aluminum panel:
| Item | PVDF coated | Ceramic paint |
| Fire proof grade | A2 grade(smoke) | A1 grade(no smoke) |
| Hardness | 0~2H | 7~9H |
| Scratch resistant | Easy to scratch | Not easy to scratch |
| High temperature resistant | 280℃ have smoke | 1600 ℃ no smoke |
| QBWear resistant standard | ＜500 time | ＞2000 time |
| Toxicity | Organic solvent | water |
| cleaning | not self-clean | Self - clean |
| life | 15 years | 30 years |
