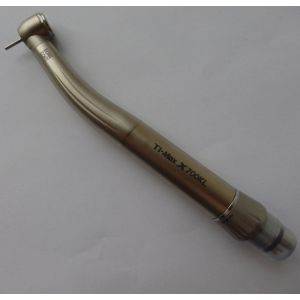

NSK Style TI-Max 700KL dental strong handpiece Miniature Head high speed air turbinas
1. The secret of the Max X fiber series is the use of German myonic
ball ceramic bearings.
2. This type of bearing significantly reduces contact between
moving parts, thus minimizing wear. Long service life and
durability.
3. Significant torque boosts and a quiet level of operation are
very effective in creating a good treatment environment and
relieving patient stress during treatment.
4. Titanium body Imported ceramic bearing Light guide glass body
Sanitary head system Four point spray Water gas independent Button
type needle change.
| DESCRIPTION | Push button type fibre optic high speed handpiece, four water
spray, anti-retraction system |
| AIR PRESSURE AT THE BACK END OF HP | 206~231 KPa (2.1~2.35 kgf/cm2) |
| AIR PRESSURE AT THE GAUGE IN THE DENTAL UNIT | 240-294 KPa (2.45-3.0 kgf/cm2) |
| WATER PRESSURE | 198Kpa (2 kg) |
| ROTATION SPEED | 300,000-450,000 rpm |
| HEAD HIGHT | 13.02 mm |
| HEAD DIAMETRE | φ12.5 mm |
| CHUCK TYPE | Push button |
| BUR APPLICABLE | φ1.59mm~φ1.6mm×21mm~23mm (diameter×length) |
| NOISE | ≤57dB |
| INTENSITY OF LIGHT | 25000 lux |
| SOURCE OF LIGHT | Haloid bulb |
| VOLT OF BULB | 3.0~3.2 V |
| SAFETY CLASSIFICATION | B type application part |
At present, we are dealing on seven categories like dental
equipment, dental orthodontic series, dental supplies, dental
material, dental decoration and dental accessories etc, amounts to
more than six hundreds kind of products, such as NSK/KAVO dental
handpiece, woodpecker brand of curing light and apex locator series
ect. autoclave, water distiller, ultrasonic Scaler, orthodontic
arch wire and bracket, dental study model, dental chair etc.
