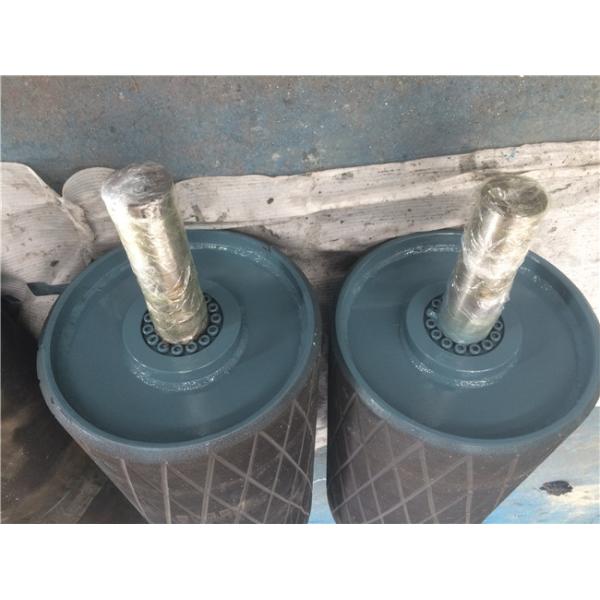

    Herringbone Lagging Conveyor Belt Drive Pulley For Fertilizer Industry

    Ask Lasest Price
    Brand Name : QINYI
    Model Number : Belt Conveyor Drive Pulley
    Certification : CE / ISO / FDA / SGS / TUV
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, Western Union
    Supply Ability : 5000 Ton/Tons per Month
    Delivery Time : 10~15 days
    • Product Details
    • Company Profile

    Herringbone Lagging Conveyor Belt Drive Pulley For Fertilizer Industry

    Herringbone Lagging Conveyor Belt Drive Pulley For Fertilizer Industry
    Belt Conveyor Drive Drum Bend Pulley For Fertilizer Industry

    Driving pulley provides the driving force for the conveyor. In order to increase pulley life and traction, it often has a larger diameter than other pulleys.

    Driven pulley is also called as redirection pulley, which is used to redirect the conveyor belt or press it tightly.

    The Head Pulley gives motion to the conveyor belt. The driving pulley can be at the head end or at the tail end, depending on the layout of the conveyor, space available and loading conditions. It is the head end where generally the belt discharges the carried material and return for loading. Besides, we offer these Head Pulleys at the affordable price range.


    Why Use Pulley Lagging?

    Pulley lagging is a layer of material bonded to the surface of a conveyor pulley. The pulley lagging is used to protect the conveyor pulley surface from damaging, increase the friction with the conveyor belt, extend the service life of the conveyor belt and conveyor pulley.
    There are several different types of pulley lagging, such as plain rubber pulley lagging sheet, diamond pulley lagging sheet and ceramic pulley lagging sheet. Each type of pulley lagging sheet has different variations, specifications and are used for a variety of purposes.
    Key Features of steel pipe bend pulley drum

    (1). Steady running, reliable quality and reduce maintenance;

    (2). Less movement longitudinally, rotating smoothly, extends the life span;
    (3). Various bearing housing and sealing structure are available for the customers choice;
    (4). Multipass labyrinthine sealing,preventing the mixed dirt and water immersed;
    (5). Manufacturing by steel pipe specially for of high precision roller, ensuring the strong
    load, low shaking and less noise.

    conveyor pulley Description

    SPECIFICATIONS
    Product Namebelt conveyor pulley drum
    TypeTransmission drum, Redirection drum, Driving Electric drum
    Length200mm-1800mm
    MaterialsCarbon steel, Stainless steel, Rubber
    Surface treatmentSmooth, Diamond grooved lagging, Herringbone lagging, Ceramic lagging
    WeldingSubmerged arc welding
    BearingSKF, NTN and other brands at home and abroad
    StructureTube,shaft,self-aligning bearing,bearing seat/house,hub, locking bushing,end disc

    NameConveyor Drive Drum Bend Pulley
    More DetailsPulley Diameter: 114-2400mm
    Pulley Length:260-3400mm
    Pipe/Tube/Shell Material: cast iron
    Shaft/Axis Material:#45 Steel
    Bearing:HRB/NSK
    Color:Red,green,blue or as require
    Standard:GB,ISO,DIN,CEMA,JIS
    Model NumberSXBMD-GT-Q
    Unit Typeset
    FOB Price( - )USD200-1000/set
    MOQ1set
    PortShanghai,Qingdao,Tianjin
    Supply Ability10000 Unit/Units per Month
    Packaging Detailsbundles/wooden pallets /Plywood case/Standard/As request
    DeliveryLead time: 15-20 days


    Drive/Head Pulley – A conveyor pulley used for the purpose of driving a conveyor belt. Typically mounted in external bearings anddriven by an external drive source.
    Return/Tail Pulley – A conveyor pulley used for the purpose of redirecting a conveyor belt back to the drive pulley.
    Tail pulleys can utilize internal bearings or can be mounted in external bearings and are typically located at the end of the conveyor bed.
    Snub Pulley – A conveyor pulley used to increase belt wrap around a drive pulley, typically for the purpose of improving traction.
    Take - Up Pulley– A conveyor pulley used to remove slack and provide tension to a conveyor belt. Take-Up pulleys are more common to conveyors of longer lengths.
    Bend Pulley – A conveyor pulley used to redirect the belt and provide belt tension where bends occur in the conveyor system.
