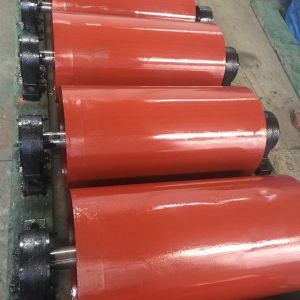

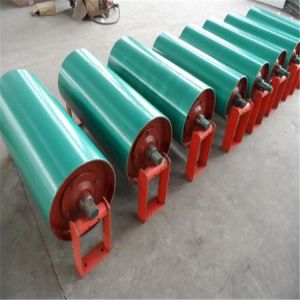

ASTM 1250mm Conveyor Belt Drive Pulley With Herringbone Lagging

    Buy cheap ASTM 1250mm Conveyor Belt Drive Pulley With Herringbone Lagging from wholesalers

    Buy cheap ASTM 1250mm Conveyor Belt Drive Pulley With Herringbone Lagging from wholesalers
    • Buy cheap ASTM 1250mm Conveyor Belt Drive Pulley With Herringbone Lagging from wholesalers
    • Buy cheap ASTM 1250mm Conveyor Belt Drive Pulley With Herringbone Lagging from wholesalers
    • Buy cheap ASTM 1250mm Conveyor Belt Drive Pulley With Herringbone Lagging from wholesalers

    ASTM 1250mm Conveyor Belt Drive Pulley With Herringbone Lagging

    Ask Lasest Price
    Brand Name : QINYI
    Model Number : Belt Conveyor Bend Pulley
    Certification : CE / ISO / FDA / SGS / TUV
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, Western Union
    Supply Ability : 5000 Ton/Tons per Month
    Delivery Time : 10~15 days
    • Product Details
    • Company Profile

    ASTM 1250mm Conveyor Belt Drive Pulley With Herringbone Lagging

    ASTM 1250mm Conveyor Belt Drive Pulley With Herringbone Lagging
    Export Bend Pulley Belt Conveyor Pulley Drive Drum Used For Belt Conveyor

    Pulleys are used for directional change in vertical plane in conveyor system & to form an endless loop for continuous operation. The necessary drive power is transmitted through pulleys. The pulleys are basically of two types Drive pulley and Non drive pulley.


    Snub pulley is used to achieve higher angle of wrap on the drive pulley thereby increasing the traction. It also reduces the belt tension maximizing the life of the conveyor component.It is mounted close to the drive pulley on the return side of the belt.


    Pulleys are one of the most important component of the conveyor system. These are designed to perform tasks like providing tension to belt,power transmission and belt tracking. Conveyor systems performance and reliability depends on the pulley.


    Feature of motorized drive conveyor drum pulley for conveyor


    1.Steady running, reliable quality and reduce maintenance;

    2.Less movement longitudinally, rotating smoothly, extends the life span;

    3.Various bearing housing and sealing structure are available for the customers choice;

    4. Multipass labyrinthine sealing,preventing the mixed dirt and water immersed;

    5.Manufacturing by steel pipe specially for of high precision roller, ensuring the strong load,

    low shaking and less noise.


    conveyor pulley Description

    SPECIFICATIONS
    Product namebelt conveyor pulley drum
    TypeTransmission drum, Redirection drum, Driving Electric drum
    Length200mm-1800mm
    MaterialsCarbon steel, Stainless steel, Rubber
    Surface treatmentSmooth, Diamond grooved lagging, Herringbone lagging, Ceramic lagging
    WeldingSubmerged arc welding
    BearingSKF, NTN and other brands at home and abroad
    StructureTube,shaft,self-aligning bearing,bearing seat/house,hub, locking bushing,end disc

    Bend Pulley (smooth surface & rubber surface)
    Belt WidthStandard Diameter of Pulley (mm)
    500 mm250,315,400,500
    650 mm250,315,400,500,630
    800 mm250,315,400,500,630,800,1000,1250
    1000 mm250,315,400,500,630,800,1000,1250,1400
    1200 mm250,315,400,500,630,800,1000,1250,1400
    1400 mm315,400,500,630,800,1000,1250,1400
    1600 mm400,500,630,800,1000,1250,1400
    1800 mm400,500,630,800,1000,1250,1400
    2000 mm500,630,800,1000,1250,1400
    2200 mm630,800,1000,1250,1400
    2400 mm800,1000,1250,1400

    Main Feature


    1) Solid design, suitable for heavy lifting.
    2) The bearing housing and steel tube are assembled and welded with a concentric automatic.
    3) Cutting of the steel tube and bearing is performed with the use of a digital auto device/machine/equipment..
    4) The bearing end is constructed to ensure that the roller shaft and bearing can be firmly connected.
    5) Fabrication of the roller is effected by an auto device and 100% tested for its concentricity.
    6) Roller and supporting components/materials are manufactured to DIN/ AFNOR/ FEM/ ASTM/ CEMA standard.
    7) The casing is manufactured with highly composite, anti corrosive alloy.
    8) The roller is lubricated and free from maintenance.
    9) Woring life expectancy is up to 30,000 hours or more, depending on usage.

    10) Vacuum sealed which has withstood anti water, salt, snuff, sandstone and dust proof experiments
