Material Loader For Powder Plastic Material Loading To The Feeder
Material Loader For Powder Plastic Material Loading To The Feeder
Material Loader For Powder Plastic Material Loading To The
FeederProduct Description

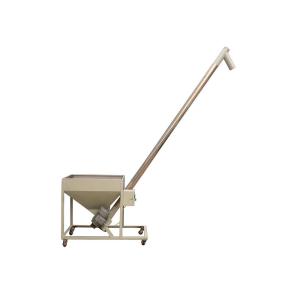

When matched with all kinds of extruders and high speed mixers,
Spiral Feeder can achieve automatic feeding of plastic powder or
particle by screw from storage bin (customized feeding height) and
feeding is controlled by material level.Besides Spiral Feeder is
endowed with automatic and fast feeding, it is labor-saving, safe
and reliable.
Material Loader For Powder Plastic Material Loading To The Feeder
Special Feature
DTC Spiral Loader is designed for dosing of powder or pellets into
batch weighing station.
Gear motor driven by frequency inverter, bearing support in two
ends, shaft sealing by air purging system. Pneumatic pad installed
in product inlet for discharge aid of non flow bulk material. U
shape barrel for easy disassemble and cleaning, product
distributing and lump breaking device are benefit to high accuracy
dosing. Screw with different pitch suitable for non flow bulk
material.
1. It can matched with extruders and high-speed mixers of all kinds
2. It can automatic feed the plastic powder in the via level gauge
with customized feeding height
3. Beside endowed with automatic and fast feeding ,it is
labor-saving ,safe and reliable.
Material Loader For Powder Plastic Material Loading To The Feeder
Technical Parameter
| Model | HYSL-100 | HYSL-300 | ZHYSL-700 |
| Motor power(kw) | 1.1 | 1.1 | 2.75 |
| Pushing motor power(kw) | 0.75 | 1.1 | 1.75 |
| Loading pipe diameter(mm) | φ30 | φ36 | φ59 |
| Capacity(kg/h) | 200 | 450 | 1000 |
| Silo cubager(kg) | 150 | 200 | 250 |
| Silo size(cm) | 100*75*80 | 120*80*80 | 160*80*80 |
| Weight(kg) | 150 | 200 |
300 |
Material Loader For Powder Plastic Material Loading To The Feeder
Material Loader For Powder Plastic Material Loading To The Feeder
Terms & conditions
1. Material Loader For Powder Plastic Material Loading To The
Feeder Training and services
1) Instruction of field installation
2) Equipment field debugging and trial run if required by the buyer
according to the rule.
3) Training on field operation and maintenance for customer's
personnel.
4) Provide technical consultation service on long-term basis.
2. Material Loader For Powder Plastic Material Loading To The
Feeder Installation and debugging
When the machine arrives at site, the customer should install it on
the appropriate position according to the specifications provided
by the supplier; and then the supplier should send its engineers to
the site if requirement approved,in order to instruct the customer
about trial run and debugging. The customer should provide
necessary conditions for trial run and provide materials for trial
run, and should decide the processing conditions in trial run with
consideration of the supplier's opinions.
1) The price covers the pre-commissioning of the machinery before
shipment at Seller's site. The Seller is obliged to test the
performance of machinery.
2) The Buyer is obliged to provide suitable space, tools and
manpower for the commissioning of the order.
3) This Price does not included commission and installation in
buyer’s factory.
3. Material Loader For Powder Plastic Material Loading To The
Feeder Pricing
1) The above mentioned quotation is valid within 30 days counted
from the issue date of quotation.
2) The price and machinery configuration should be updated and
confirmed by the Seller in the case that the quotation has been
beyond the validity period.
3) The above mentioned quotation is based on Ex works. Sea
transportation and wooden case packing is excluded.
4) The price does not cover the cost of testing material. The
testing material will be supplied by the Buyer. Or the Seller will
purchase the material as requested by the Buyer at Buyer's cost.
5) The price does not include the cost of commissioning at Buyer's
site.
The Seller reserves the right to modify the specification and
design of the machine in order to enhance the product quality.
4. Material Loader For Powder Plastic Material Loading To The
Feeder Terms of payment
1) T/T and L/C (irrevocable, at sight) both are acceptable.
2) 35% of the total contract value should be paid in advance,
balance 65% of the total value is to be paid before shipping at the
Seller’s factory.
5. Material Loader For Powder Plastic Material Loading To The
Feeder Time of delivery
1) When the contract becomes valid, the machine should be delivered
within 60 days since receipt of the advance payment. And the
equipment will be in normal operation after debugging within two
weeks after arrival.
2) During production, provided that the Buyer requests to modify
the specification of the order, the Buyer shall notify the Seller
of this modification in written form. Upon receipt of the notice,
the Seller will quote to the Buyer the cost of this modification
and notify the Buyer of any possible delay due to this
modification.
6. Material Loader For Powder Plastic Material Loading To The
Feeder Debugging charge
The buyer pays for the plane ticket of round-trip abroad and food
and accommodation of buyer’s country during debugging. And the wage
of technicians should be paid by the customer (80USD/day).
7. Material Loader For Powder Plastic Material Loading To The
Feeder Guarantee clause
1) Guarantee is 1 year (excluding human factor and wearing parts).
2) Under proper working conditions, 12 months from the date of
completion of commissioning at the buyer's site, and should be at
the latest within 14 months from the issuing date of Bill of
Lading.
