    Xy-1a Portable Oem Customized Borehole Geological Drilling Rig Machine

    Ask Lasest Price
    Brand Name : ShiTan
    Model Number : XY-1A
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : T/T, Western Union
    Supply Ability : One hundred units a month
    Delivery Time : Within 7-12 days
    • Product Details
    • Company Profile

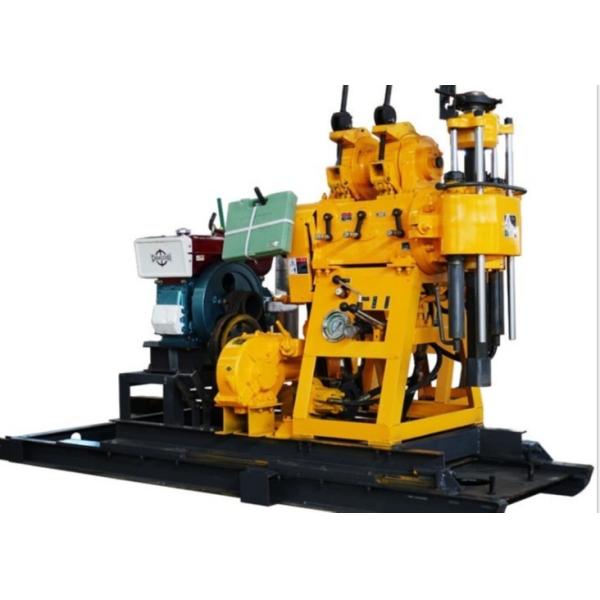

    Xy-1a Portable Oem Customized Borehole Geological Drilling Rig Machine

    XY-1A Portable OEM Customized Drilling Equipment Geological Drilling Rig Machine


    XY-1A Portable OEM Customized Drilling Equipment Geological Drilling Rig Machine​ Introduction


    XY-1A Portable OEM Customized Drilling Equipment Geological Drilling Rig Machine is mainly used for the general survey and engineering geological investigation of solid deposits, and various inspection holes of concrete structures


    XY-1A Portable OEM Customized Drilling Equipment Geological Drilling Rig Machine Parameters:


    BasicsDrill depth (m)150
    Drill hole(mm)75-300
    Final hole (mm)75
    Rod diameter (mm)42/50
    Drill angle (Degree)75-90
    Size(LxWxH)mm1710x8500x1340
    Weight (kg)500
    SpindleSpindle speed (r/min)1010/790/470/295/140
    Travel (mm)450
    Max. Pressure (kN)15
    Lifting force (kN)25
    HoistMaxing lifting force (kN)15
    Drum speed (r/min)121/76/36
    Drum diameter (mm)140
    Steel rope diameter (mm)9.1-12
    Steel rope capacity35
    Brake diameter (mm)252
    Brake band width (mm)50
    Oil PumpModelYB-20/125
    Rated pressure (Mpa)12.5
    Flow rate (ml/r)20
    Rated speed (r/min)1500
    Diesel engineModelZS1105(18HP)
    Nominal speed (r/min)2200
    Power(Kw)13.3

    XY-1A Geological Drilling Rig Machine Main Advantages


    1.2 Features

    1.2.1 The oil pressure feeding mechanism can improve drilling efficiency and reduce the labor intensity.

    1.2.2 The drilling rig is equipped with a ball mounted card blessing mechanism with six side active drill rods. The utility model can perform no stopping and falling rod. And it has the advantages of high work efficiency, convenient operation, safety and reliability.

    1.2.3 Hole pressure gauge indicates pressure which can be easy to grasp the situation inside the hole.

    1.2.4 Handle concentration, easy operation.

    1.2.5 It is compact, small in size, light in weight, strong in decomposition and easy to remove .It can be used in plains and mountains.


    XY-1A Portable OEM Customized Drilling Equipment Geological Drilling Rig Machine Purchase Attentions


    The product produced by the company has a long life and high durability. As long as it is operated according to normal operation rules, the product can be used for a long time, so the product is a more popular product type at present. The regular manufacturers should be selected for purchasing geological drill pipes. At present, the manufacturers in different regions may not be very uniform in terms of price. The purchaser should be prepared before purchasing
