980mm Height Bi-Directional Flap Barrier Gate Security Subway
Turnstile
Product Brief
1) Flap barrier gate can be compatible with face thermal detection,
NFC/RFID card, QR code/ ticket scanner, ESD tester, fingerprint
reader access control device used for staff, provide civilized,
orderly access methods.
2) The whole system running smoothly with low noise. The access gates
also have a double core engine, which applies for both sides access
which can apply to multi-channel.
3) It is also widely used together with other style gates like swing
barrier or turnstile as a manual lane for the handicapped user in
the building lobby.
4) Single core (movement) structure or dual-core (double movement)
structure is equipped for different installation requirements.
5) Single wing or double wings structure is equipped for different
requirements regarding Lane width.
6) Ideal for low traffic and light duty site that requires a more
affordable solution.
Technical specification
| Size: | 1200mm (L) * 300mm (W) * 1000mm (H) |
| Retractable arm length: | 285 mm ( can be custom-made) |
| Pass speed: | 40 persons/min (open), 30-35 persons/min (closed) |
| Passage width: | ≤600mm ( or <900mm width, custom-made) |
| Normal running life: | 3 million |
| Time of opening/closing: | 0.6 second |
| Time to work after power on: | 3 seconds |
| Reset time after break down: | 10 seconds |
| Direction: | single or bi-directional (optional) |
| Drive motor: | brushless motor ( or servo motor) |
| Working environment: | indoor/outdoor (with a tent over) -10℃～70℃ |
| Communication interface: | standard RS 485 interface, distance ≤1200m |
| Input interface: | +12V level signal or pulse width>100 ms
12V pulse, drive current>10 mA |
| Relative humidity: | ≤90% coagulation free |
| Housing material: | domestic standard 304 # stainless steel |
| Working voltage: | AC220±10%V 50±10%HZ |
Security Features
1. Emergency open: Equipped with emergency escape control device,
turnstile system will automatically unlock the gates to evacuate
people.
2. Flap Barrier Gate installed infrared sensor, when telescopic
flap arm meets resistance during open and close, it will automatic
bounces back or within a specified time motor stop working, the
intensity is very small, at the meantime gates send out alarm
signal and voice. In addition, access gates have anti-trailing,
orientation discrimination, anti-pinch injury functions etc.
3. Light and sound alarm indication function, preventing illegal
entry or irregular passing
4. There are LED light and indicator passing direction.
5. using unique sensors which detect visitors approaching
6. You can adjust the operation speed of the barrier according to
the flow of passengers and improve the passing rate.

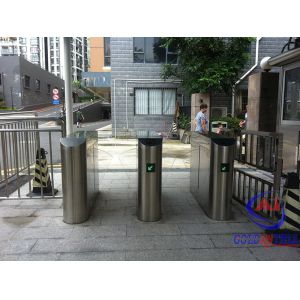

Product Show
Project Application
- factories,
- office building,
- clubs,
- intelligent community,
- airports,
- railway stations,
- docks,
- scenic spots,
- parks,
- student dormitories,
- pedestrian passages
FAQ
1. What is your MOQ?
Vivian: Any quantity is acceptable.
2. Can your machines be used outside?
Vivian: With waterproof function, could be used outside
3. What is the warranty for the machine?
Vivian: Within 1 year, if any quality problems, we will offer the
accessories
4. Can I customize it?
Vivian: Yes, Welcome. We are the manufacturer, we have rich OEM/ODM
experience for government, etc.
5. What are your terms of payment?
Vivian: 100% paid before shipment. We'll show you the photos or
videos of the products and packages before you pay the balance.
6. What are your terms of delivery?
Vivian: EXW, FOB, CFR, CIF, DDU.
Package Info
1. Inside with a carton package.Then outside,there are 2 kinds of
packages under your choice:
2. crate package and closed wooden package optional.
3. if <10pc, ship in 7 working days ; > 50, ship in 10-15
working days; For customized product, need 2-3 longer working days.
