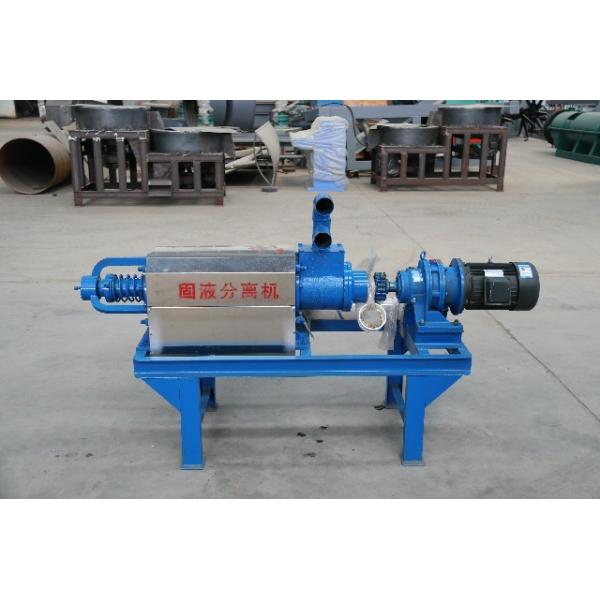

Farm Use Poultry Animal Chicken Cow Manure Dewatering Machine For
Sale
Product name
The animal manure dewatering machine is designed to reduce the
water content of animal manure, such as cow dung, pig manure and
chicken manure. In addition, the animal waste solid liquid
separator can remove acid sludge, dregs, kitchen waste and many
other dregs. It separates solids and liquids well. Solids can be
used to make organic fertilizers or fuels, and liquids are good
materials for irrigation.
Features
(1) Screw-type extrusion solid-liquid separator has small volume,
low rotation speed, simple operation, convenient installation and
maintenance, low cost, high efficiency, fast investment recovery,
and no need to add any coagulant;
(2) Integrated hopper design, stable feeding compensation, wet and
dry design;
(3) Thick stainless steel spiral shaft, the part is subjected to
wear-resisting treatment, long service life, and the pitch
parameter is scientific and reasonable;
(4) The electronic control system has overload protection, leakage
protection and low voltage protection; (5) The stainless steel
filter mesh is manufactured by strip-shaped high-precision molding
process, which has the characteristics of good filtration,
anti-clogging and long service life;
Working principle
The working process is as follows: The unplugged pump pumps
NON-fermented pig dung into the body and accelerates the discharge
under the action of a vibration motor. At this time, the power
transmission, squeezing the Dragon, gradually pushes the dung water
to the front of the body, while constantly improving the front edge
pressure, The moisture in the material is forced to squeeze out the
screen and flow out the drain pipe under the action of edge
pressure band filtration. The work of the Extrusion is continuous,
the material is continuously pumped into the body, and the pressure
on the leading edge is constantly increasing. When it is large to a
certain extent, the discharge mouth is opened and the extrusion
mouth is squeezed to achieve the purpose of extrusion. In order to
master the speed and water content of the feed, the weight
distribution block below the host can be adjusted to achieve a
satisfactory and appropriate feed state.
Main function
1. low power computations ,low invest, high efficiency
2. compact structure
3. main parts use stainless steel
4. easy to operate and easy to remain
Parameter
| Model MG-AD260 | Main dewater equipment | Pump |
| Motor power | 7.5kw | 4kw |
| Rotary speed | 45r/min | 1450r/min |
| Voltage | 380v 50HZ | 380v 50HZ |
| Working capacity | For pig manure: 12-15 m³/h For Cow manure : 9-12m3/h For Chicken manure : 7-9m3/h |
| Depth of manure pool | >1.5m |
| Weight | 750 kg |
