10-20% Efficiency High Performance Higher Offsetink Production 50 L
Sand Mill Machine
The Main Feactures of Sand Mill Machine:
1.Different materials could meeting different needs:
Adopted high abrasive-resisting materials: silicon carbide
ceramics, like hard alloy, 9Cr18Mo alloy steel, SUS 304 stainless
steel, to guarantee strengthen working life of bead mill machine.
Meanwhile we suggest the suitable grinding beads to match with the
inner chamber materials.
2. Decrease the temperature:
Applied self-owned double spiral cooling technology to enhance the
space of heat rejection, with superior material with good thermal
conductivity and lower the temperature before cooling come in pipe.
Also temperature is lower if choose the inner chamber of Silicon
carbide ceramics.
3. Strengthen the fineness:
The different fineness after grinding can be reached for your
different demands, the smallest grinding media of 0.1mm with
200-300nm.
4. Enhance the efficiency:
High efficiency with energy saving, have grinding and dispersing
technology, normally the efficiency is higher 10-30% than
traditional machines. Also it's more better if choose the
temperature is better.
5. Reduce the workforce with indicator light
One worker could easily operate and manage 5-10 sets mill machines
if mills add the indicator light, decrease the cost of human. The
mill machines will add more if need central control system. It will
be automation and intelligence and saving more labor cost.
Powerful control of five factors related to grinding and dispersing
mills (Energy consumption, material, speed, sealing, cooling)
Grinding process: Single Cycle or series
Application area: Pigments, dyes, paints, inks, food, chocolate, biologics and cell
breaks, cosmetics, non-metallic ores and ceramics.
The working principle:
The working principle is to use the material pump to feed the
solid-liquid mixture material that has been pre-dispersed and
wetted by the mixer into the chamber, and the material and the
grinding medium in the chamber are stirred by the high-speed
rotating disperser, so that the solid particles in the material and
the grinding media produce stronger collision, friction, and
shearing effects with each other to achieve the purpose of
accelerating the grinding of fine particles and dispersing .After
grinding and dispersing, the material passes through a dynamic
separator to separate the grinding medium and flows out of the
discharge pipe.
Technical specification:(from 5L to 300L )
| ”Super” SP series of Wet Milling Equipment |
| Type | Working Volume (L) | Power (kW) | Grinding Beads (mm) | Throughput (kg/h) |
| SP5 | 5 | 7.5 | 0.3-3.0 | 20-200 |
| SP15 | 15 | 15 | 0.3-3.0 | 50-500 |
| SP30 | 30 | 30 | 0.3-3.0 | 70-700 |
| SP50 | 50 | 30/37 | 0.3-3.0 | 100-1000 |
| SP100 | 100 | 55 | 0.3-3.0 | 300-3000 |
| SP250 | 250 | 75 | 0.3-3.0 | 450-4500 |
| SP300 | 300 | 90 | 0.3-3.0 | 550-5500 |

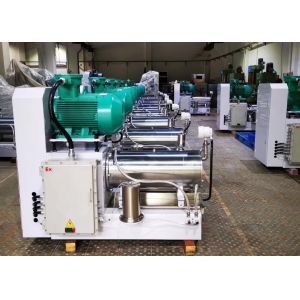

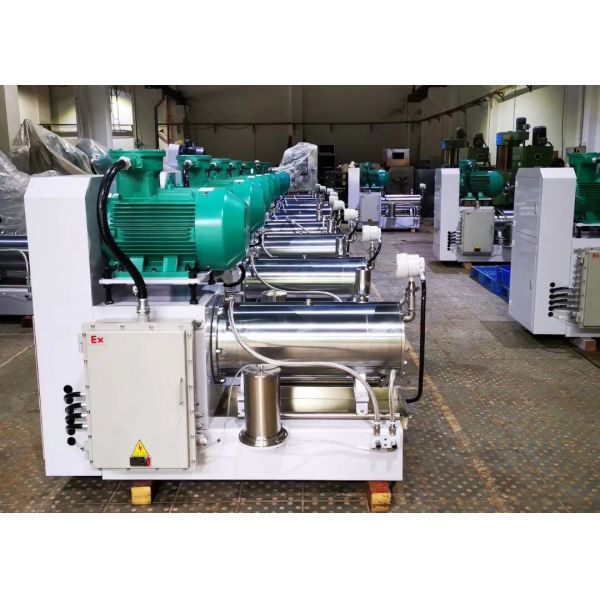

The Detailed Production Show:
The Customer siite picture:
The Application filed:
The After sales service:
1. Video instructions for installation and commissioning, if need,
we will arrange engineer to your factory.
2. 12-24H feedback any customers questions, firstly offer the video
help you solving, if need arrange maintenance engineer for you.
The package and shipping: Be covered with anti-abrasion film and then packed in wooden
boxes, then seashipping by FCLor LCL.

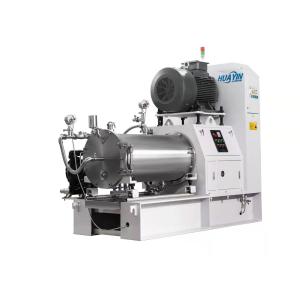

The related products( Dispersing machien for pre dispersion, the
Zirconical beads(Different size for meeting different finally
fineness)
If need more detailed information and price, please hesitate to
contact us, also warmly welcome to visit us.
