    Hydraulic Crawler Mounted 200m Water Well Drilling Rig Machine

    Ask Lasest Price
    Brand Name : JCDRILL
    Model Number : CWD200
    Certification : CE, ISO
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 2000 sets/year
    Delivery Time : 30-45 days
    • Product Details
    • Company Profile

    Hydraulic Crawler Mounted 200m Water Well Drilling Rig Machine

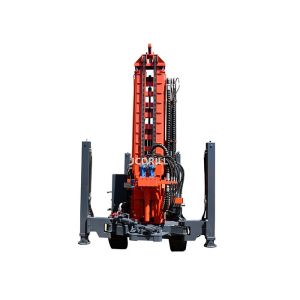

    CWD200 Crawler Mounted Water Well Drilling Rig

    CWD200 Multi-functional track mounted water well drilling rig is a efficient,multi-function full hydraulic water well drilling rig.It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular at home and abroad.

    Specification

    Geology DrilledAll kinds
    Drilling TypeDTH & Mud Rotary
    Drill System and OperationHydraulic
    Hole DiametermmΦ90—Φ450
    Hole Depthm200
    Rotation TorqueNm4500-6500
    Rotation Speedrpm0-90
    Drill Pipe Diametermm76/89/102/114
    Drill Pipe Lengthmm3000
    Max. Feed SpeedM/min18
    Max. Lifting SpeedM/min5-20
    Feed Strokemm3400
    Max. Lifting ForceTon14
    Lifting force of Main Winch(Optional)T4
    Lifting Force of HoistKgs1500
    Lifting Height of Tool Winchm6
    Engine
    Diesel Engine TypeYUCHAI
    Rated Horse PowerKw77
    Electrical SystemVolt24
    Compressor Required
    Compressor TypeRotary Screw/Movable
    Pressure RequiredMpa1.2—3.0
    Air Consumptionm³/min11-35
    Mud Pump(Optional)
    TypeHydrulic
    ModelBW450
    Strokemm100
    DisplacementL/Min450
    Discharge Pressure (Mpa)Mpa5
    Suction Tube Diametermm85
    Discharge Pipe Diametermm51
    Foam PumpOptional
    Dimension
    Net WeightKgs5400
    Shipping Lengthmm3950
    Shipping Widthmm1700
    Shipping Heightmm2150
    Ground Clearancemm300

    Shipping
