IEC606095 Flammability Test Equipment , K Type Glow Wire Tester

Glow Wire Thermocouple Flammability Testing Equipment Accessories

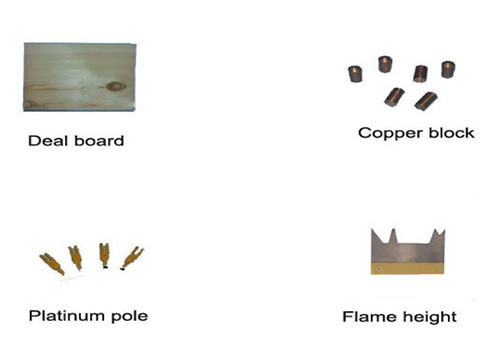

1.Flame height gauge

Material: thickness of 1-1.5mm stainless steel, IEC606095-11-4 picture 2, IEC606095-11-3 picture 2.

2.Copper block:

Horizontal-vertical tester,

needle flame tester dedicated thermometry copperΦ5.5,1.76g(50W)/Φ9,10g(500W)/4*6,0.58g(needle flame),

high cathode copper, purity over 99.5%.

3.Platinum pole:

Used platinum electrode for electric leakage,

front part purity is 99% platinum; 2mm± 0.1mm×5mm±0.1mm× 12mm ± 5mm,30°±2° bevel,

copper handle welded.

4.Deal board:

Use deal board of 20cm*20cm for glow wire testing.

5. K Type Glow Wire Thermocouple Flammability Testing Equipment Accessories For Flaming

K Type Glow Wire Thermocouple Flammability Testing Equipment

Imported with original packaging insulation high temperature resistance armour thermocouple,0.5mm type K,

armour heat-resisting1100℃(is superior to the standard 1050℃)

6. Glow Wire U Type Head Glow Wire Tip Supporting The Use With Glow Wire Tester

Glow wire is equipped with U type head,

material: imported Ni/Cr(80/20)alloy;

specification: dia. 4mm±0.04mm Ni/Cr(80/20)special made standard annular.

Our advantage service:

We have our own developing and designing team, which ensure our own technological and innovative products for customers.
For any customers who have new idea about some products, just let us know, we can according to your idea provide a unique design of the products.

Technical support:

All our workers are experienced and skilled.

After sale service:
Our working team and sales teams can guarantee a fast and high efficiency after-sale service for our product sold to everywhere of the global.

Guangzhou Shice Equipment Co., Ltd. (hereinafter referred to as Guangzhou Shice) is the one professional focus on IEC testing equipments, IP waterproof testing equipments, electronic testing products and other testing products. Guangzhou Shice is professionally dedicated in providing laboratory testing equipment. We are now the high-tech enterprises with technical superiority and R & D capabilities in test instruments industry.

Guangzhou Shice are designed and manufactured as per the requirements of IEC, EN, UL, VDE, BS, AS, ISO standards and etc.

Our main products are:

waterproof and dustproof (IP) environmental test equipment;

switch, plug, socket and coupler test equipment; mechanical strength impact test equipment;

material fire hazard test equipment, enclosure protection test probes;

household appliances safety test equipment;

wire and cable test equipment;

luminaires test equipment;

electric tools test equipment.

Our products are widely used in domestic and worldwide measurement & certification institutions, inspecting mechanism, laboratories, export & import inspection and quarantine bureau, various production companies and etc. Our customer includes Bureau Veritas, CSA, ITS, UL, TUV Rheinland, TUV SUD, SGS and etc.
