    2 SPST Relays Water Quality Transmitter Online Hydrogen Peroxide Analyzer

    Ask Lasest Price
    Brand Name : Daruifuno
    Model Number : ADS2-U3-WP10
    Certification : CE
    Price : Negotiable
    • Product Details
    • Company Profile

    2 SPST Relays Water Quality Transmitter Online Hydrogen Peroxide Analyzer


    Online Hydrogen Peroxide Analyzer 2 SPST Relays Especially For High Concentrations



    Product Introduction

    In the treatment of drinking water, hydrogen peroxide decomposes slowly, and has a mild effect on organic matter, which can ensure a long-term residual disinfection effect. Therefore, hydrogen peroxide is an ideal disinfectant.

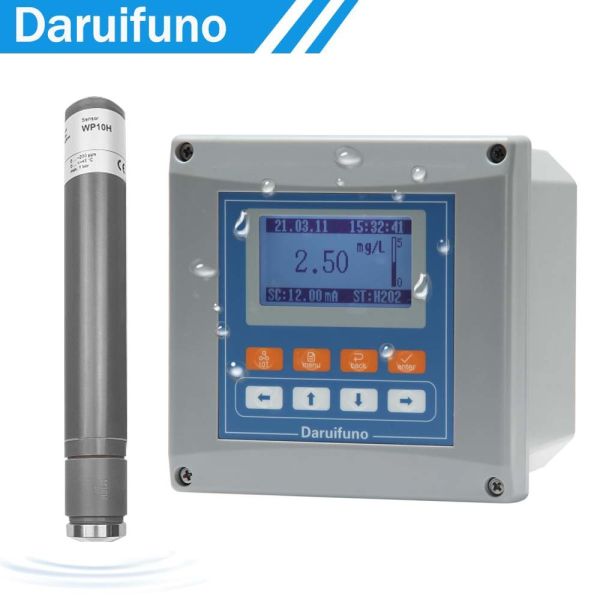

    The hydrogen peroxide analyzer ADS2-U3-WP10 is an instrument specially designed for the measurement of hydrogen peroxide, especially for high concentrations. DRFN’s hydrogen peroxide controller can be connected to all DRFN’s hydrogen peroxide sensors. We provide AC or DC power supply mode, both of which are wide-voltage power supply.


    Product Advantages


    1. The protection level of the hydrogen peroxide controller is IP66, which can effectively isolate the pollution and corrosive gas intrusion from the external environment.


    2. The hydrogen peroxide meter is equipped with a two-wire RS485 interface, the communication protocol is MODBUS RTU.


    3. The screen uses a 128*64 black and white graphic dot matrix screen, and the display backlight provides constant light and energy-saving mode selection.


    4. The hydrogen peroxide controller can record the user's maintenance details of the equipment, the calibration effect of the diagnostic sensor, and will give corresponding prompts for inaccurate calibration instruments.


    5. The meter supports a variety of installation methods and can be applied to more different installation environments.


    6. The hydrogen peroxide meter has clock and historical data recording functions to meet higher data management requirements.


    7. The standard configuration is 2 settable SPST relays. The setting objects include: alarms for the high and low values of the measurement parameters, the control of the cleaning cycle of the sensor. The warning of the working environment temperature of the instrument itself in harsh environment, as an auxiliary means of hazard protection, the maximum load of the relay is 3A/250VAC.


    Applications Of The Hydrogen Peroxide Analyzer

    Drinking water, industrial wastewater, water supply system, urban sewage treatment


    Parameters Of The Hydrogen Peroxide Analyzer


    Product Namehydrogen peroxide analyzer
    Product Model

    ADS2-U3-WP10

    Software Version

    DRFN H2O2 Analysis software V1.0

    Display Range

    0.00~200.00mg/L

    Resolution

    0.001mg/L

    Accuracy

    Better than 0.15% of the measuring range

    Stability

    0.05% of the measuring range every 24 hours, no accumulation

    Repeatability

    Better than 0.1% of the measuring range

    Relay Control

    2 settable SPST relays, the max. load 3A/250VAC

    Sensor Self-diagnosis

    screen image and buzzer prompt

    Analog Current Output

    2 settable 0/4~20mA active current loop output max. load 1000Ω

    Communication Method

    MODBUS RTU; support JSON text data format

    Display Screen

    128*64 LCD

    Time History/Data Record

    Year/month/day/hour/min/second, record 14000 historical data

    Protection Grade

    IP66

    Operating Environment

    0~60℃, relative humidity less than 95%

    Storage Environment

    -20~70℃, relative humidity less than 55%

    Shell Material

    Enhanced ABS

    Dimensions

    144*144*120mm (hole size 138*138 mm)

    Mounting Method

    Wall mounting, pipe clamping, panel installation

    Power Supply

    18~36V DC or 100~240V AC

    Weight

    800g

    Power Consumption12W




    Matching Hydrogen Peroxide Sensor Parameters

    • PH range: 2~11
    • Pressure range: 0~1 bar, no pressure surges and/or fluctuations
    • Temperature range: 5~45 ℃
    • Response time: T90 about 8 min
    • Flow rate: about 30 l/h, low flow-dependence
    • Sensor with automatic temperature compensation
    • Material: PVC-U, stainless steel 1.4571
    • Calibration: at the controller, analytical determination by DPD-method

    Type:

    Measuring range:

    ppm

    Resolution:

    ppm

    Output signalPower supplyItem number
    WP10MA-2000~2000.14~20 mA

    12~30 VDC

    RL 50Ω~900Ω

    3326313
    WP10MA-20000~200013326314
    WP10MA-2%

    0~2%

    (20000)

    0.001 % (10)3326310
    WP10MA-5%

    0~5%

    (50000)

    0.01 % (100)3326311
    WP10MA-10%

    0~10%

    (100000)

    0.01 % (100)3326312
    WP10MA-200-M120~2000.14~20 mA

    12~30 VDC

    RL 50Ω~900Ω

    3326323
    WP10MA-2000-M120~200013326324
    WP10MA-2%-M12

    0~2%

    (20000)

    0.001 % (10)3326320
    WP10MA-5%-M12

    0~5%

    (50000)

    0.01 % (100)3326321
    WP10MA-10%-M12

    0~10%

    (100000)

    0.01 % (100)3326322
