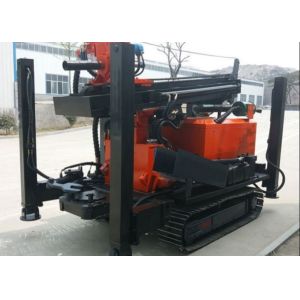

Customized Big St 200 Meters Pneumatic Drilling Rig

    Buy cheap Customized Big St 200 Meters Pneumatic Drilling Rig from wholesalers

    Buy cheap Customized Big St 200 Meters Pneumatic Drilling Rig from wholesalers
    • Buy cheap Customized Big St 200 Meters Pneumatic Drilling Rig from wholesalers
    • Buy cheap Customized Big St 200 Meters Pneumatic Drilling Rig from wholesalers

    Customized Big St 200 Meters Pneumatic Drilling Rig

    Ask Lasest Price
    Brand Name : Shitan
    Model Number : ST-200
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : T/T, Western Union
    Supply Ability : 2000 sets per year
    Delivery Time : 7-10 days
    • Product Details
    • Company Profile

    Customized Big St 200 Meters Pneumatic Drilling Rig

    Customized Big Pneumatic ST 200 Meters Water Well Drilling Rig Machine


    ST 200 Meters Water Well Drilling Rig Machine Introduction


    The Well Water Drilling Equipment is designed on the basis of ST-100 drilling rig by adding mud pump according to customer feedback. It is a kind of high-speed portable drilling rig with hydraulic feeding.


    Pneumatic ST 200 Meters Water Well Drilling Rig Machine Tech Data


    Drilling depth
    200m
    Maximum borehole caliber
    300mm
    Minimum borehole caliber
    75mm
    Diameter of Drill pipe
    42/50/60mm
    Drilling angle
    90°~75°
    Weight(Not include power)
    1600kg
    Unity machine dimension
    2750*950*1770mm
    2.Vertical Spindle
    Spindle rotating speed
    64/128/287/557r/min
    Spindle stroke
    450mm
    3.Hoist
    Max. single line lifting capacity
    2400kg
    Reel lifting speed
    1.64m/s
    Steel wire rope diameter
    13mm
    Steel wire rope capacity
    35m
    Hug floodgate diameter
    245mm
    Hug floodgate belt width
    70mm
    Movable distance
    400mm
    4. Mud pump
    Type
    BW-160
    Type
    Horizontal Single Cylinder with double function
    Max. Discharge
    Diesel engine 170L/min /Electrical Motor 140L/min
    Max. Pressure
    3MPa
    Work Pressure
    1.5MPa
    5. Power
    Diesel engine
    22HP
    Electric Motor
    15KW
    6. Drilling tower
    Type
    Integrated on drilling rig
    Control system
    Hydraulic
    7. Trailer chassis
    Type
    4 wheels

    Pneumatic ST 200 Meters Water Well Drilling Rig Machine Features


    1. It has automatic oil pressure feeding mechanism to improve drilling efficiency and reduce manual labor of workers.

    2. The ball clamping mechanism is used instead of chuck to realize rod reversing without stopping the machine, which is easy to operate, safe and reliable.

    3. The pressure gauge at the bottom of the hole is equipped to indicate the pressure, which is convenient to master the situation in the hole.

    4. The handle is centralized and easy to operate.

    5. The structure is compact. The drilling rig, water pump and diesel engine are all installed on one base, occupying a small area of the airport.

    6. Light weight, strong decomposition, easy to move, suitable for plain or mountain work.


    Pneumatic ST 200 Meters Water Well Drilling Rig Machine Application


    Pneumatic ST 200 Meters Water Well Drilling Rig Machine is suitable for geological survey, geophysical exploration, road and construction exploration.

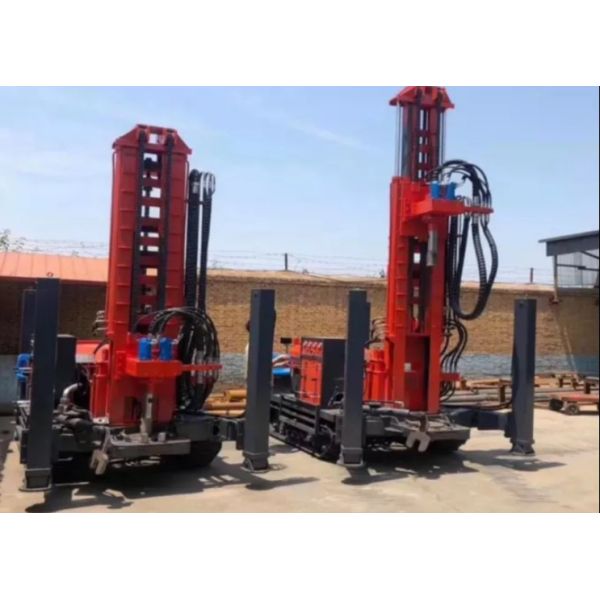

    Quality Customized Big St 200 Meters Pneumatic Drilling Rig for sale
