101-870-0510 1018700510 Cylinder Seal Service Kit For Bulldozer D20A-3 KOMATSU

Name: 1018700510 1018700510 Cylinder Seal Service Kit For Bulldozer D20A3 KOMATSU
Brand: SUNCAR
Price: 1 USD

Ask Lasest Price
Brand Name :	SUNCAR
Model Number :	Cylinder Repair Kit 101-870-0510 1018700510
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union,
Supply Ability :	550 Sets Per Week.
Delivery Time :	3-7 Days After Payment Received(Public Holiday Excluded)

Add to Cart

Product Details
Company Profile

101-870-0510 1018700510 Cylinder Seal Service Kit For Bulldozer D20A-3 KOMATSU

101-870-0510 1018700510 Cylinder Seal Service Kit for Bulldozer D20A-3 KOMATSU

Description: Service kit,101-870-0510 komatsu genuine, new aftermarket tractor parts with delivery bulldozers.Hydraulic Cylinder Seal Kits:

Seals matched to specific appliC-A-Tions for durability and long wear life.Hydraulic cylinder seal kits are used to seal the gap between different parts

of the hydraulic cylinder. The function of hydraulic cylinder seal kits is to prevent oil leakage, to assure the working pressure of the hydraulic

system, to maintain its power.

Product name	101-870-0510 1018700510 Cylinder Seal Service Kit for Bulldozer D20A-3 KOMATSU
Brand name	SUNCAR
OEM number	101-870-0510 ; 1018700510
Compatible model	Bulldozer D20A-3 ; D20P-3 ;D20PL-3 Komatsu
MOQ	10 sets
Function	Dust proof, Shaft seal,high and low temperature resistance
Compatible equipment	Bulldozer
Cross-Sectional shape	Circular
Material	PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ
Compatible brand	Komatsu
Supply alility	550 sets per week
Condition	100 % new
Feature	Oil resistance, Heat resistance, Durable, Sealing Performance, Manufacture
Transport mode	Air, Sea, Express ( FedEx , UPS,DHL,TNT etc.)
CertifiC-A-Tion	ISO9001
Market	North America, South America, Western Europe, Eastern Europe, Eastern Asia, Southeast Asia, Middle East, Africa, Oceania, Worldwide
Size	Standard size or as per customer request
AppliC-A-Tion	Building Material Shops, Machinery Repair Shops, Manufacturing Plant,Restaurant,Retail,Construction Works,Energy&Mining
Stock	In rich stock
Make up	Seal ring,O-ring,Back-up ring,packing
Availability	In rich stock.
Style	Hydraulic, Mechanical seal kit,Cylinder seal kit,Bulldozer seal repair kit

Relative Parts:

1	101-11-05100	[1]	SERVICE KIT,MAIN CLUTCH
	101-11-13121	[1]	GASKET,HOUSING
	101-11-13120	[1]	GASKET,HOUSING
	101-11-13141	[1]	GASKET,COVER
	101-11-13140	[1]	GASKET,COVER
	06122-02804	[2]	SEAL,BEARING
	101-11-14240	[2]	SEAL,OIL HOUSING
	07000-02018	[1]	O-RING,GAUGE
	101-11-13210	[1]	GASKET,TUBE
	101-11-13160	[1]	GASKET,SUMP
	101-11-13180	[1]	GASKET,SUMP
	07000-03022	[1]	O-RING,PLUG
	101-11-13310	[2]	GASKET,SCREEN
	07000-03035	[1]	O-RING,PUMP ASS'Y
	101-11-14140	[1]	GASKET,CAGE
	101-11-14150	[1]	SEAL,OIL CAGE
	04059-01020	[2]	WIRE,BOLT
2	102-12-05010	[1]	SERVICE KIT,DAMPER
	103-12-11121	[1]	GASKET,CNH
	07005-03016	[1]	GASKET,BLEEDER
	103-12-12130	[1]	SEAL,COVER
	07000-02070	[1]	O-RING,COVER
3	101-14-05032	[1]	SERVICE KIT,TRANSMISSION
	102-14-11130	[1]	GASKET,COVER
	102-14-11151	[1]	GASKET,ACCESS COVER
	07000-03068	[1]	O-RING,COVER
	07012-00040	[1]	SEAL,OIL COVER
	07000-03082	[1]	O-RING,COVER
	07000-03078	[1]	O-RING,CAGE
	07000-05220	[1]	O-RING,CNH
	04059-01010	[3]	WIRE
4	103-15-05100	[1]	SERVICE KIT,TRANSMISSION
	07000-02080	[1]	O-RING,CAGE
	07000-03030	[1]	O-RING,STRAINER
	07000-02055	[1]	O-RING,STRAINER
	07000-02016	[2]	O-RING,SLEEVE
	07000-03025	[5]	O-RING,SLEEVE
	07000-02012	[5]	O-RING,SLEEVE
			.
	103-15-11120	[2]	GASKET,PLATE
5	103-15-05910	[1]	SERVICE KIT,TRANSMISSION ACCESSORY
	07000-02020	[2]	O-RING,TUBE
6	103-15-05300	[1]	SERVICE KIT,SELECTOR VALVE
	07000-01009	[2]	O-RING,BODY
	07000-02014	[12]	O-RING,BODY
	07000-03028	[2]	O-RING,RETAINER
	07000-02015	[1]	O-RING,RETAINER
	07000-02008	[2]	O-RING,DETENT
7	103-15-05400	[1]	SERVICE KIT,MODULATING VALVE
8	101-21-05022	[1]	SERVICE KIT,STEERING CNH
	101-21-11160	[1]	GASKET,PLATE
	07049-01012	[4]	PLUG,MAIN FRAME
	07000-03032	[2]	O-RING,PLUG
	07049-01418	[8]	PLUG,MAIN FRAME
9	101-21-05100	[1]	SERVICE KIT,BEVEL GEAR AND SHAFT
	101-21-11330	[4]	LOCK,SHAFT
	07000-03110	[2]	O-RING,CAGE
	07012-11065	[2]	SEAL,OIL
	07000-03088	[2]	O-RING,COUPLING
11	103-21-05010	[1]	SERVICE KIT,STEERING CNH
	103-21-11150	[1]	GASKET,TUBE GAUGE
12	101-27-05100	[2]	SERVICE KIT,FINAL DRIVE
	101-27-11131	[1]	GASKET,CNH
	07000-03145	[1]	O-RING,CNH
	101-27-11230	[1]	PACKING,COVER
	102-27-11220	[1]	O-RING,RING
	101-27-11440	[1]	GASKET,FLANGE
13	101-30-05100	[2]	SERVICE KIT,TRACK FRAME
	07016-00558	[1]	SEAL,DUST COVER
	101-30-21151	[1]	GASKET,BOX
	101-30-05030	[1]	SERVICE KIT,FRONT IDLER
	07000-03062	[2]	O-RING,BUSHING
	101-30-05040	[5]	SERVICE KIT,TRACK ROLLER
	100-30-15140	[2]	O-RING,SHAFT
	101-30-05050	[1]	SERVICE KIT,CARRIER ROLLER
	07000-03052	[1]	O-RING,COVER
15	101-820-0501	[1]	SHOE BOLT AND NUT K.
	101-820-7210	[50]	BOLT SHOE
	01803-01218	[50]	NUT SHOE
16	101-40-05010	[1]	SERVICE KIT,STEERING BOOSTER
	101-40-11640	[1]	GASKET,BOX
	101-40-11560	[1]	GASKET,BRACKET
	101-40-11590	[2]	GASKET,COVER
17	103-43-05010	[1]	SERVICE KIT,STEERING BOOSTER
18	103-49-05010	[1]	SERVICE KIT,TRANSMISSION OIL LINE
	07000-02075	[1]	O-RING,COVER
	07000-02010	[1]	O-RING,BOLT
	07000-02021	[1]	O-RING,TUBE
	103-49-13120	[2]	GASKET,COVER
21	101-811-0521	[1]	SERVICE KIT,MARK AND PLATE
	101-14-11190	[1]	PLATE OPERATING,GEAR SHIFT LEVER
	09683-00060	[1]	PLATE OPERATING
	101-819-2110	[1]	CHART OIL
	09691-02204	[2]	PLATE MARK
	09653-00080	[1]	PLATE SAFETY
	09655-00120	[1]	PLATE INSTRUCTION
	09692-02204	[1]	PLATE MARK
	09690-00355	[2]	PLATE MARK
	112-60-13620	[1]	PLATE OPERATING,BLADE CONTROL
22	101-60-05050	[1]	SERVICE KIT,HYDRAULIC TANK
	07002-02434	[1]	O-RING,PLUG
	130-60-42181	[1]	GASKET,TANK
	130-60-42180	[1]	GASKET,TANK
	130-09-11450	[1]	SEAL,OIL TANK
24	101-60-05100	[1]	SERVICE KIT,HYDRAULIC FILTER
	07000-13072	[1]	O-RING,COVER
	102-60-15130	[1]	RING,BACK-UP COVER
25	701-11-05010	[1]	SERVICE KIT,CONTROL VALVE
	07000-13025	[4]	O-RING,BODY
	07000-12015	[8]	O-RING,BODY
	07000-13028	[1]	O-RING,BODY
	07000-23032	[1]	O-RING,HOUSING
	07000-13032	[1]	O-RING,HOUSING
	07000-23030	[1]	O-RING,SEAT
	07000-13030	[1]	O-RING,SEAT
	07000-13017	[2]	O-RING,PLUG

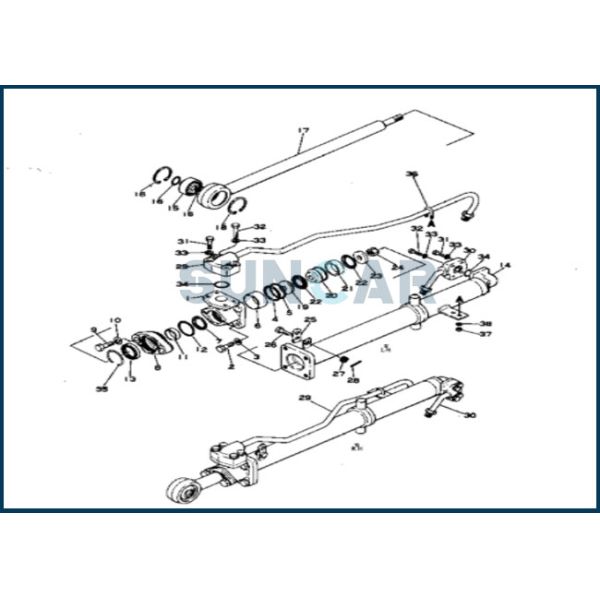

27	101-870-0510	[2]	SERVICE KIT,BLADE CYLINDER
	101-63-12660	[1]	RING,BACK-UP
	07146-02051	[1]	RING,BACK-UP
	07000-13045	[1]	O-RING,CYLINDER HEAD
	07000-12050	[1]	O-RING,CYLINDER HEAD
	10E-63-96540	[1]	U-PACKING,CYLINDER HEAD
	07195-00503	[1]	U-PACKING,CYLINDER HEAD
	07000-13050	[1]	O-RING,GLAND
	07016-00357	[1]	SEAL,DUST GLAND
	07155-00515	[1]	RING,WEAR PISTON
	101-63-12450	[2]	U-PACKING,PISTON
	07157-00503	[2]	U-PACKING,PISTON
	07000-23025	[2]	O-RING,TUBE
30	101-62-05100	[1]	SERVICE KIT,HYDRAULIC OIL LINE
	07000-23028	[1]	O-RING,TUBE
	07000-22018	[2]	O-RING,TUBE
