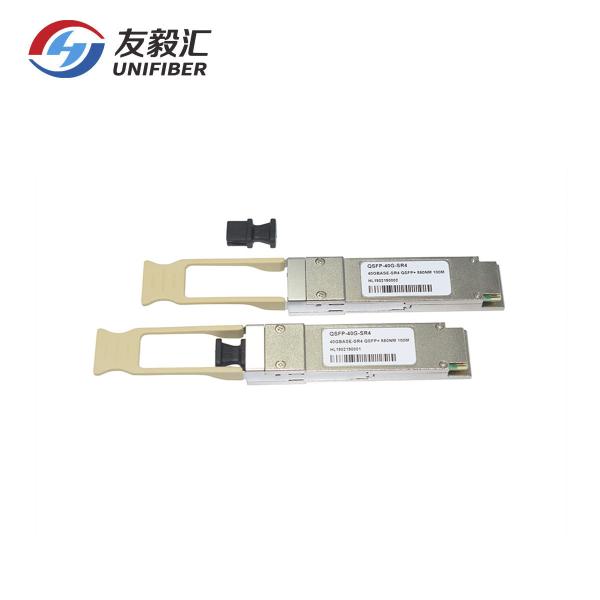

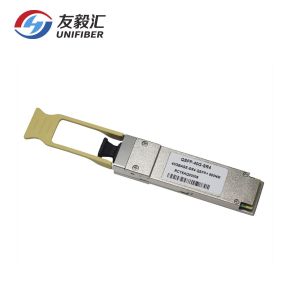

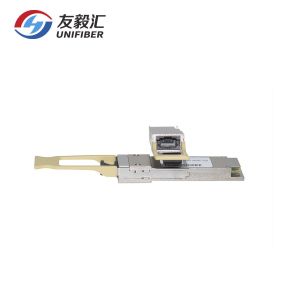

40G QSFP+ SR4 100m MMF 850nm SFP Fiber Transceiver Multimode

40G QSFP+ CSR4 MMF 850nm 400M OM4 multimode fiber transceiver

This product is an integrated transceiver module containing a micro-optic component and semiconductor material, and can implement optical-electrical conversion and electrical-optical conversion. The module is designed as a four-channel, pluggable, parallel, QSFP+ transceiver for 40Gbps fiber communication. Each channel can operate at 10.3125Gbps up to 100m on mpo fiber. And the operating wavelength is 850nm. The optical interface uses an 12 fiber MTP(MPO) connector, and the electrical interface uses a 38 contact edge type connector.UNIFIBER 40G QSFP+ transceivers include SR4, eSR4, LX4, LR4 Lite, IR4 PSM, LR4 PSM, LR4, ER4 and BiDi series.

Features :

Single +3.3V power supply

QSFP MSA compliant
Maximum 1.5W operation power

Digital diagnostic capabilities

4 independent full-duplex channels
Up to 11.2Gbps data rate per channel
MTP/MPO optical connector
Capable of over 400m transmission on OM4 multi-mode ribbon fiber
Operating case temperature:0~70C

Applications :
40G Telecom connections

40G Ethernet
Infiniband 4X SDR DDR QDR
