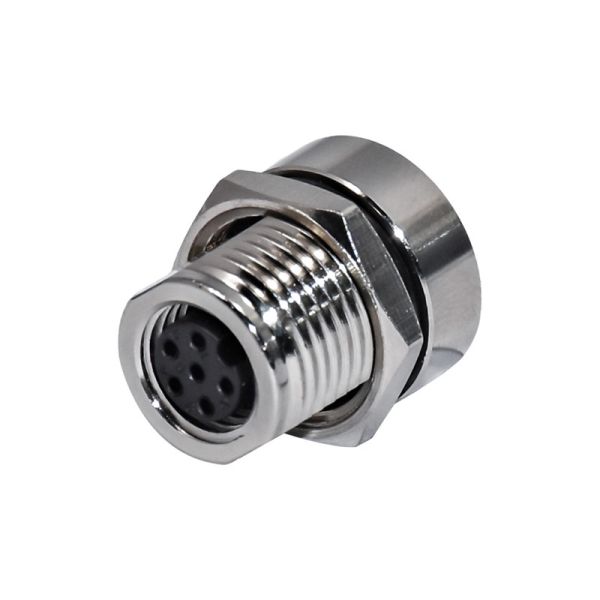

M8 Auto Female 6pins Front Cricular Screw Panel Mount Connector
IP67 Socket
Quick details
1. M8 panel mount connector female 4pins PCB connector
2. Connector locking system is bolted
3. Termination is solder
4. Wire gauge(mm) is 0.25mm²
5. Wire gage(AWG) 24
6. Cable outlet can be 3,5 - 5,0 mm
7. Temperature will from -40° to +85°
8. Contacts 3.4.5.6.8pins avaliable
Electrical values
Rated current (40 °C) :4 A
Rated voltage :60 V
Rated impulse voltage :1500 V
Pollution degree :3
Overvoltage category :III
Insulating material group :III
Volume resistivity :≤ 3 mΩ
EMC compliance :not shielded
Degree of protection :IP67
Mechanical operation :> 100 Mating cycles
| Number of Contacts | 3 | 4 | 5 | 6 | 8 |
| Rated voltage | 30V | 60V |
| Contact resistance | <5mΩ |
| Insulation resistance | <100mΩ |
| Pollution degree | 3 |
| Temperature range | 25 °C to 85° C |
| Degree of protection | IP 67 when mated |
| Mating times | 100 cycles |
| Wire gauge | 24AWG | 26AWG |
| Cable jacket | PVC or PUR |
| Material of housing | Brass Nickel Plated |
| Material of insert | PA+GF UL9V-0 |
| Material of contact | Brass phosohor bronze gold plated
|
Product photos
Packsging & Shipping
1.Our general packing: PE bag and PE bag contons. General Carton
size:40*30*30cm
2.Customized according to customer's request
M8 connector can be used a wide fields like LED, Automation,
Sensor, mechanise equipment etc.
• LED lighting , white light , color light etc
• Low current equipement
• Connector be used in narrow environment
• Communication equipement
• Lighting harness
Production Advantage
1. Water circular connectors can connect electrical products
perfectly
2. Approved by UL,CE,TUV,ROHS,CCC,TS16949,ISO14001
3. Our connector can be used outdoor during harsh winter or sweat
summer . the endurance temperature range is -40℃-105℃
4. We have got REACH certification ,Environmental connector is
worthy of your reliable
Rigoal-----Your Best Connection!
