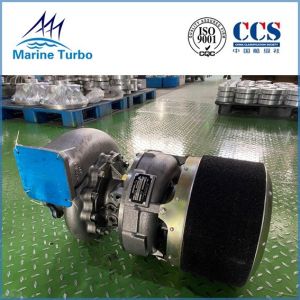

    AT14 Diesel Engine Marine Turbocharger With Black Filter

    Ask Lasest Price
    Brand Name : Marine Turbo
    Model Number : AT 14
    Certification : ISO; CCS
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 300 pcs / month
    Delivery Time : 2-3 working days
    • Product Details
    • Company Profile

    AT14 Diesel Engine Marine Turbocharger With Black Filter

    Top level AT14 turbocharger for diesel engine with black filter


    Features for Top level AT14 turbocharger for diesel engine with black filter​:

    AT 14 marine diesel turbocharger with silencer includes the design features as below:

    • / AT14 turbochargers is radial type of turbocharger
    • AT14 turbocharger was designed especially emphasize compressor, turbine and bearing in order to enhance reliability and durability.
    • AT14 turbochargers can reach almost 8,000 hours long running time without any problem and the condition of its bearings are good for such long operating hours.
    • T-AT14 turbocharger compressor is capable of achieving a maximum pressure ratio of 5.0.
    • T-AT14 turbochargers applied in diesel engine and its output can cover approx. 320-750 kW.
    • T-AT14 is easy maintenance with low life cycle cost.

    / AT14 exhaust gas turbocharger's construction:

    The above T- AT14 Turbocharger's cross-sectional drawing shows that the T- AT14 turbocharger is consisted of the turbine and compressor, and the thrust bearing and two journal bearings which make the axial and radial forces respectively becoming possible. From static section view, T-AT14 turbocharger consists of the comprssor casing, bearing casing and turbine casing.


    turbocharger for diesel engine includes:

    T- T- RH SeriesAT SeriesRU Series
    T- T- RH133AT14RU110
    T- T- RH143 RU120
    T- T- RH163
    T- T- RH183
    T- T- RH203

    Description of Top level AT14 turbocharger for diesel engine with black filter​:

    The exhaust gas turbocharger is the main equipment in the diesel engine boosting system. It consists of a single-stage exhaust gas turbine and a centrifugal compressor. They are mounted on the same shaft to form the moving part of the exhaust gas turbocharger - the rotor. The function of the exhaust gas turbocharger is to use the diesel exhaust energy to drive the turbine to drive the compressor on the coaxial to increase the air pressure into the cylinder, so that the diesel engine power is greatly improved.

    When the diesel-exhaust turbocharger combination is in operation, the exhaust gas turbocharger is prone to failures such as turbine casing corrosion, bearing damage, blade damage, gas seal damage, and supercharger vibration. The daily good maintenance agement can reduce these failures.


    More pictures of Top level AT14 turbocharger for diesel engine with black filter:


    Brief profile for Marine Turbo Company:

    Marine Turbo has been specialized in turbocharger spare parts replacement in Marine industry for more than 20 years since 1999, serving hundreds and thousands customers from the whole world with premium product quality and quick service on offering and delivery. Marine Turbo has more than 100 models for customers to choose quickly which suitable for , , KBB, MET, and other brands of turbocharger spare parts replacement. Among them, 90% of the product model Marine Turbo has inventory, can meet the turbocharger maintenance and repair needs for various brands with a quick response and a reasonable price.
