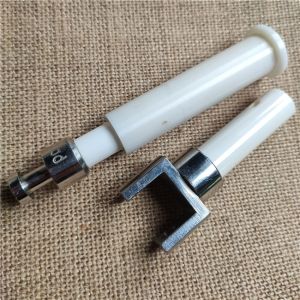

Diamond Polished Wear Resistance Precision Alumina Zirconia Ceramic
Piston
Description:
The Ceramic piston is made of high-purity ceramic raw materials,
which are formed by dry pressing or cold isostatic pressing,
high-temperature sintering and precision machining.Ceramic piston
can work in the acid and alkali corrosion conditions, high
toughness and low friction coefficient, high pressure environment
for a long time, and the maximum temperature to 1800 ºC
(3272ºF)...Molding process is mainly hot, dry pressure, isostatic
pressing; Products alumina purity to meet customer requirements.
Technical Parameters:
| Test item/Unit | Numerical Value | Test item/Unit | Numerical |
| Product Material | Alumina | Zirconia | Product Material | Alumina | Zirconia |
| Component Content % | ≥99% | ≥95% | ≥90% | Volume Resistance MM | >1012 | >1012 | >1012 |
|
| Sintering Temp ℃ | 1780-1800 | 1650-1680 | 1550-2600 | Bending Strength Mpa | 400 | 320 | 1100 |
|
| Specific Gravity g/cm3 | ≥3.8 | ≥3.6 | >6 | Thermal Expansion Coefficient'10' | 6.8-8.0 | 6.2-8.5 | 6.9-10 |
|
Breakdown Voltage
Strength kv/mm | 15 | 15 | 15 | Roughness um | ≤0.8 | ≤0.8 | ≤0.8 |
|
| Bibulous Rate% | <0.01 | <0.01 | <0.01 | Mirror Polished Ra | ≤0.05 | ≤0.1 | ≤0.05 |
| Anti Pressure Mpa | 3700Mpa | 2400Mpa | 5000Mpa | Thermal Conductivity W/m.k | 25 | 20 | 25 |
|
| Hardness Hra | ≥88 | ≥82 | ≥88 | Temperature Resistance ℃ | 1700 | 1600 | 1800 |
Advantages:
1.High hardness
2.Relatively low strength and fracture toughness
3.Resistance to wear and corrosive
4.Excellent thermal stability
5.Resistance to high temperatures
6.High electrical resistivity
7.Good chemical stability and resistance
Application:
1.Kiln furniture, components & accessories.
2.Thermocouple protection tubes.
3.Heater Support Elements.
4.High Temperature Electrical Insulators.
5.Extreme temperature measurement components.
6.Ceramic Laser components.
7.High voltage electrical insulators.

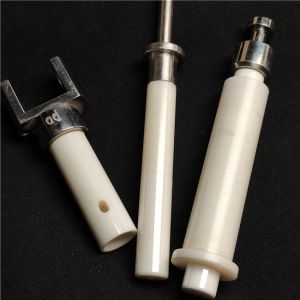

More pictures:
FAQ:
Q:Are you a trading company or a manufacturer?
A:We are professional manufacturer which has almost 5 years of
experience in this industry.
Q:Can you produce according to the samples?
A:Yes,we can produce by your samples or technical drawings.
Q:Would it be possible for us to visit your factory?
A:Sure,we welcomed our customers visit our factory in any time.
Q:Will your company supply samples?
A:Yes,the sample expense will be deducted from the value of your
order.
