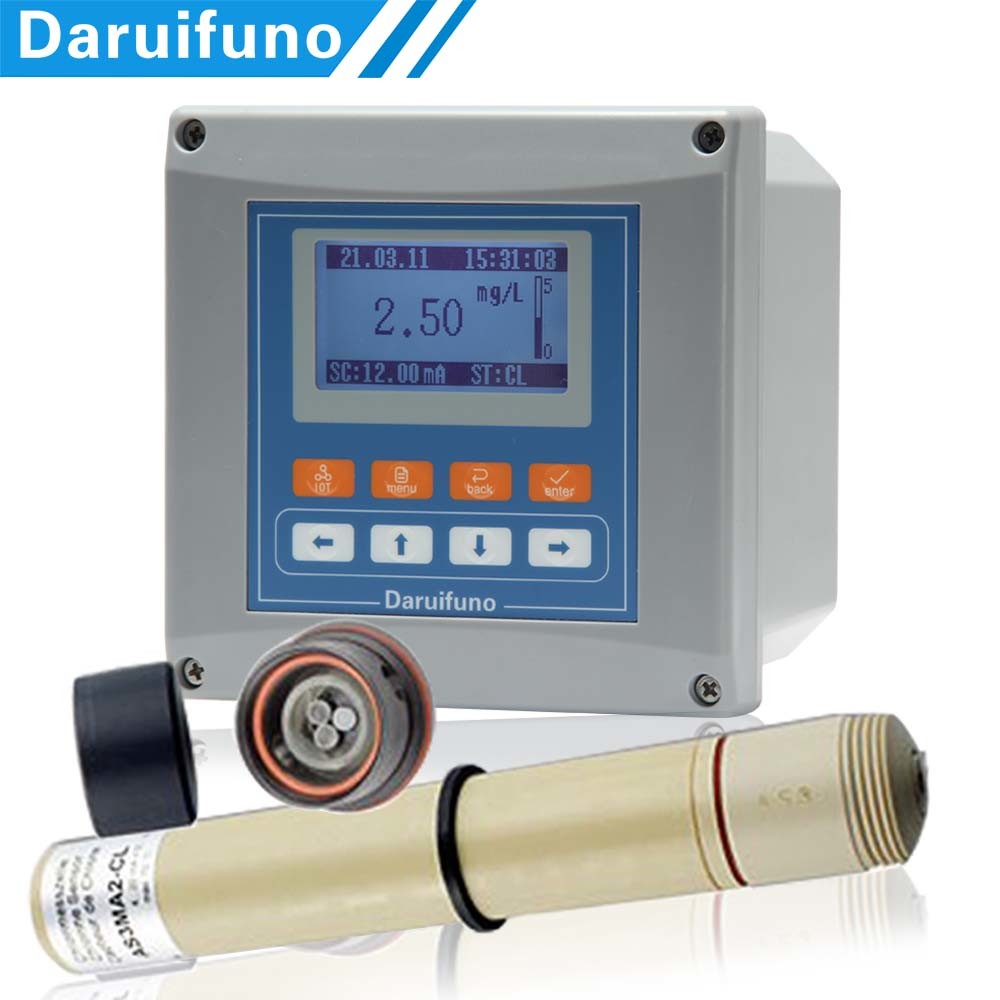

    18~36V Online Chlorine Meter For Industrial Disinfection Measurement

    Ask Lasest Price
    Brand Name : Daruifuno
    Model Number : ADS2-U3D-CL4.2-AS2/AS3
    Certification : CE
    Price : Negotiable
    • Product Details
    • Company Profile

    18~36V Online Chlorine Meter For Industrial Disinfection Measurement


    18~36V Online Chlorine Meter For Industrial Disinfection Measurement


    Introduction


    When chlorinating disinfection, the amount of chlorine input should generally meet the chlorine demand for killing bacteria to reach the designated disinfection index and oxidizing organic matter, and the residual chlorine required for inhibiting the re-reproduction of pathogenic bacteria remaining in the water. At the same time, if the dosage is too high, it is easy to produce carcinogens such as trichloromethane and tetrachloromethane. Therefore, it is very important to properly control the amount of chlorine added in the water treatment process.



    Advantages Of The Online Chlorine Meter


    1. Menu password can be set to facilitate hierarchical management;


    2. The languages that the system can display include at least Chinese and English. The user can choose whether the displayed data is timely response or smooth response by adjusting the display rate according to observation habits.


    3. The standard configuration is equipped with 2 settable 0/4~20mA active current loop outputs, and each current output allows the user to specify what measurement value it represents.


    4. The standard configuration is 2 settable SPST relays. The setting objects include: alarms for the high and low values of the measurement parameters, the control of the cleaning cycle of the sensor. The warning of the working environment temperature of the instrument itself in harsh environment, as an auxiliary means of hazard protection, the maximum load of the relay is 3A/250VAC.


    Applications Of The Online Chlorine Meter


    Water treatment monitoring: domestic water, swimming pool, environmental protection sewage discharge monitoring;


    Industrial process monitoring: circulating water, cooling water, aquaculture, papermaking, food, medicine manufacturing, etc.


    Technical Parameters


    Product NameOnline Chlorine Meter
    Product Model

    ADS2-U3D-CL4.2-AS2/AS3

    Software Version

    DRFN Chlorine Analysis software V1.0

    Display Range

    0.00-200.00mg/L

    Resolution

    0.001 mg/L

    Accuracy

    Better than 0.15% of the measuring range

    Stability

    0.05% of the measuring range every 24 hours, no accumulation

    Repeatability

    Better than 0.1% of the measuring range

    Relay Control

    2 settable SPST relays, the max. load 3A/250VAC

    Sensor Self-diagnosis

    screen image and buzzer prompt

    Analog Current Output

    2 settable 0/4~20mA active current loop output max. load 1000Ω

    Communication Method

    MODBUS RTU; support JSON text data format

    Display Screen

    128*64 LCD

    Time History/Data Record

    Year/month/day/hour/min/second, record 14000 historical data

    Protection Grade

    IP66

    Operating Environment

    0~60℃, relative humidity less than 95%

    Storage Environment

    -20~70℃, relative humidity less than 55%

    Shell Material

    Enhanced ABS

    Dimensions

    144*144*120mm (hole size 138*138 mm)

    Mounting Method

    Wall mounting, pipe clamping, panel installation

    Power Supply

    18~36V DC

    Weight

    800g



    The Matching Chlorine Sensors Recommendation

    • Model: AS2 AS3
    • pH range: 5~9

    • Pressure range: 0~8 bar
    • Temperature range: 0~50℃(AS2), 0~70℃ (AS3)

    • Integrated automatic temperature compensation
    • Response time: T90 about 30 s
    • Flow rate: about 30 l/h
    • Shaft length: standard 175 mm, and up to 220 mm in length (mA-Version)
    • Connection: for mA-version 2-pole terminal, M12 male

    • Material: PVC-U (AS2), PEEK (AS3)

    Type:

    (up to 50℃)

    Measuring range:

    ppm

    Resolution:

    ppm

    Output signal:Power supply:Item number:
    AS2MA1-CL0.03~1.000.014~20 mA

    12~30 V DC

    RL 50~900Ω

    3326111
    AS2MA2-CL0.03~2.000.013326113
    AS2MA5-CL0.03~5.000.013326112
    AS2MA10-CL0.03~10.000.013326115
    AS2MA20-CL0.03~20.000.013326116
    AS2MA1-CL-M120.03~1.000.013426790
    AS2MA2-CL-M120.03~2.000.013426791
    AS2MA5-CL-M120.03~5.000.013426792
    AS2MA10-CL-M120.03~10.000.013426793
    AS2MA20-CL-M120.03~20.000.013426794


    Type:

    (up to 70℃)

    Measuring range:

    ppm

    Resolution:

    ppm

    Output signal:Power supply:Item number:
    AS2MA1-CL0.03~1.000.01

    4~20 mA

    12~30 V DC

    RL 50~900Ω

    3326121
    AS2MA2-CL0.03~2.000.013326123
    AS2MA5-CL0.03~5.000.013326122
    AS2MA10-CL0.03~10.000.013326125
    AS2MA20-CL0.03~20.000.013326127
    AS2MA1-CL-M120.03~1.000.013426740
    AS2MA2-CL-M120.03~2.000.013426741
    AS2MA5-CL-M120.03~5.000.013426742
    AS2MA10-CL-M120.03~10.000.013426743
    AS2MA20-CL-M120.03~20.000.013426744
