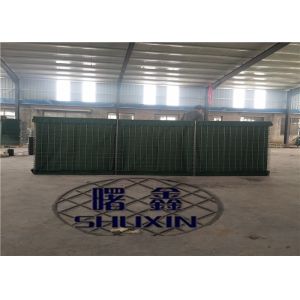

Mil 1 7 10 Galvanized Hesco Barrier Welded Defensive Barriers for
Military
Hesco barrier also named as Hesco bastion, Hesco defense wall, sand
cage, welded gabion box, etc.It is a
prefabricated,multi-cellularsystem, made of zinc coated steel
welded mesh and lined with non-woven geotextile. Units can be
extended and joined using the providedjoining pins. It is easy
installed with using minimal manpower and commonly available
equipment. After extended,it is filled into sand,stone,then hesco
barrier like a defence wall or bunker,it is widely used for
military fortification and flood control.
Product Item standards | Height | Width | Length | Cells |
SHUXIN MIL1 | 54''(1.37m) | 42''(1.06m) | 32'9''(10m) | 1*4+1*5 cells |
SHUXIN MIL2 | 24''(0.61m) | 24''(0.61m) | 4'(1.22m) | 2 cells |
SHUXIN MIL3 | 39''(1.00m) | 39''(1.00m) | 32'9''(10m) | 2*5 cells |
SHUXIN MIL4 | 39''(1.00m) | 60''(1.52m) | 32'9''(10m) | 2*5 cells |
SHUXIN MIL5 | 24''(0.61m) | 24''(0.61m) | 10'(3.05m) | 5 cells |
SHUXIN MIL6 | 66''(1.68m) | 24''(0.61m) | 10'(3.05m) | 5 cells |
SHUXIN MIL7 | 87''(2.21m) | 84''(2.13m) | 91'(27.74m) | 2*4+1*5 cells |
SHUXIN MIL8 | 54''(1.37m) | 48''(1.22m) | 32'9''(9.14m) | 1*4+1*5 cells |
SHUXIN MIL9 | 39'(1.00m) | 30''(0.76m) | 30'(9.14m) | 2*6 cells |
SHUXIN MIL10 | 87''(2.21m) | 60''(1.52m) | 100'(30.5m) | 4*5 cells |
SHUXIN MIL11 | 48''(1.22m) | 12''(0.3m) | 4'(1.22m) | 4 cells |
SHUXIN MIL12 | 84''(2.13m) | 42''(1.06m) | 108'(33m) | 6*5 cells |
SHUXIN MIL19 | 108''(2.74m) | 42''(1.06m) | 10'5''(3.18m) | 3 cells |
Specification:
| Material: | Galvanized Iron Wire |
|---|
| Application: | Gabion Mesh, Gabions, Construction Wire Mesh |
|---|
| Hole Shape: | Square |
|---|
| Usage: | Civil, Military |
|---|
| Technics: | Welded |
|---|
| Surface Treatment: | Galvanized, Galfan Coated |
|---|
Material: Galvanized steel wire or Galfan/
zinc-5%aluminum wire
Service Life: 15-20 years
Price:19.8$-99.8$/set
Wire diameter: 3.0mm- 6.0mm
Aperture:50*50mm 75*75mm
76.2*76.2mm 80*80mm 100*100mm etc
Color of geotextile:Grey and Military
Green,Sand color etc
Gram Weight of geotextile:200g/m2
or 300g/m2
Finish:hot dipped galvanized,Galfan wire.
Welded method:welded after galvanized
or galvanized after welded
Packing:Wrapped with shrink film then
packed in wood pallet or iron pallet

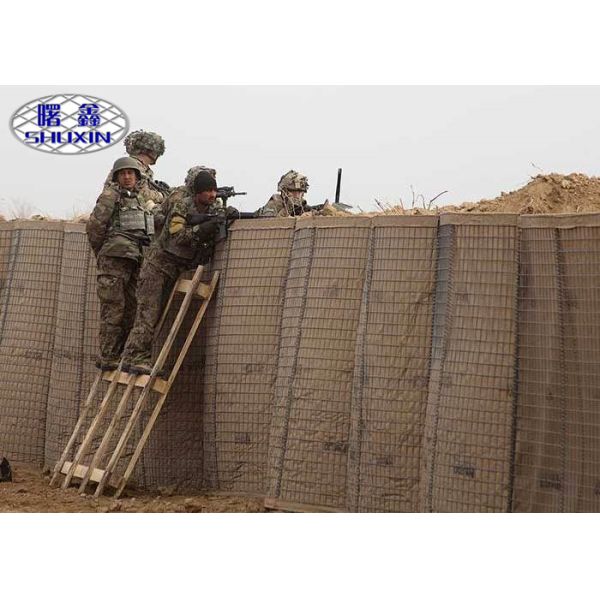

Application:
1.Perimeter security and defence walls
2.Equipment revetments
3.Ammunition compounds
4.Personnel and material bunkers
5.Obsercation points
6.Defensive firing positions
7.Entry control points
8.Guard posts
9.Explosives and contraband search areas
10.Highway checkpoints
11.Border crossing checkpoints
12.Protecting existing structures
13.Highway traffic management
14.Hostile Vehide Mltigation
Certification:
CE certification, BV Certification, SGS Certification
We can provide inspection and certification before shipment,
quality assurance
The strength factory has its own equipment for 10 years
Payment method, convenient, simple and safe
Export term:FOB Tianjin port
CIF Port
