Galvanized Welding Anti-corrosion HESCO Defensive Military Barrier
Wall With Dark Green In Canada
Product Description:

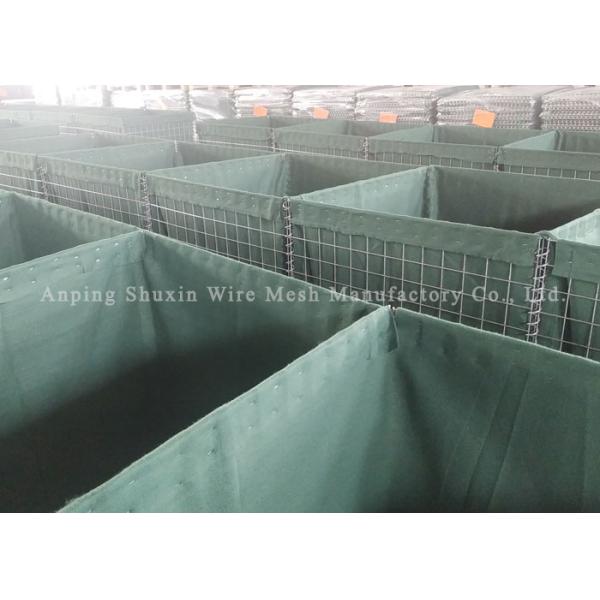

Hot dip galvanized gabion boxes with geotextile are also called
fortresses, protective walls, sand cages, welded gabion boxes, etc.
This is a multi-cellular system made of galvanized welded mesh and
lined with non-woven fabric. The provided connection extension and
connection unit may be used. It is easy to install and requires
minimal manpower and commonly available equipment. After expansion,
it is filled with sand and stones, and then welded with gabion
barriers like defense walls or bunkers. It is widely used for
military defense and flood control.
It is made of galvanized welded mesh plate, spring belt and other
accessories, which can be filled with sand, soil, cement and stone,
and can be used alone or connected by some defense barriers.
Our factory has been verified on site by SGS Group, the world's
leading inspection company. Our products strictly follow ISO9001,
SGS and CE certification. Our products comply with BS EN
10244-2:2009 and BS EN 1208-2:2012
Details of Defensive type military sand wall defensive barriers in Philippines:
| Model | Height | Width | Length | Internal Cells |
| SX-1 | 54”(1.37m) | 42”(1.06m) | 32’9”(10m) | 5+4=9 cells |
| SX-2 | 24”(0.61m) | 24”(0.61m) | 4’(1.22m) | 2 cells |
| SX-3 | 39”(1.0m) | 39”(1.0m) | 32’9”(10m) | 5+5=10 cells |
| SX-4 | 39”(1.0m) | 60”(1.52m) | 32’9”(10m) | 5+5=10 cells |
| SX-5 | 24”(0.61m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-6 | 66”(1.68m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-7 | 87”(2.21m) | 84”(2.13m) | 91’(27.74m) | 5+4+4=13 cells |
| SX-8 | 54”(1.37m) | 48”(1.22m) | 32’9”(10m) | 5+4=9 cells |
| SX-9 | 39”(1.0m) | 30”(0.76m) | 30’(9.14m) | 6+6=12 cells |
| SX-10 | 87”(2.21m) | 60”(1.52m) | 100’(30.5m) | 5+5+5+5=20 cells |
| SX-11 | 48”(1.22m) | 12”(0.30m) | 4’(1.22m) | 2 cells |
| SX-12 | 84”(2.13m) | 42”(1.06m) | 108’(33m) | 5+5+5+5+5+5=30 cells |
| SX-19 | 108”(2.74m) | 42”(1.06m) | 10’5”(3.18m) | 6 cells |
Military sand wall defensive barrier/welded gabion box barriers come in many sizes. Most fences can also be stacked and packed into
a compact set. Whether used as protective barriers or to define
borders, security barriers and T-walls are used to protect
equipment, facilities, vehicles and personnel in military,
peacekeeping, humanitarian and civil operations.
Applications of the Defensive Barriers:
Peripheral security and defense wall
Equipment protection
Shelter for personnel and materials
Observation point
Defensive firing position sentry
Explosive and contraband search area
Highway inspection station
Border crossing checkpoint
Protect existing structures
Flood control retaining wall beach erosion
Coastal Area Protection Project
Defensive barrier advantages:
1. Removable It is assembled by panels and spring wires, and can be
folded into a whole during loading and transportation.
2. Anticorrosion The raw material is hot-dip galvanized wire, which
can be used for 10 years or more and is suitable for external
protection.
3. Easy installation When you get it, open it in a spacious place
and fill it with sand and mud. Even 2-3 people can finish it.
4. Rapid displacement When you want to use it in another place,
just move it and it can be used many times.
5. Easy to repair If a part is damaged, throw it away and connect
it with a new one.
