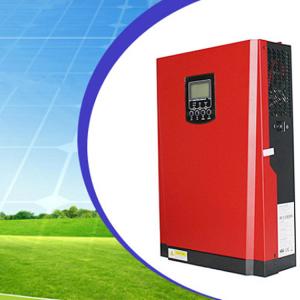

24vdc to 120vac High Wattage High Frequency Solar Inverter 3200W Electric Inverter For Home

    Buy cheap 24vdc to 120vac High Wattage High Frequency Solar Inverter 3200W Electric Inverter For Home from wholesalers

    Buy cheap 24vdc to 120vac High Wattage High Frequency Solar Inverter 3200W Electric Inverter For Home from wholesalers
    • Buy cheap 24vdc to 120vac High Wattage High Frequency Solar Inverter 3200W Electric Inverter For Home from wholesalers
    • Buy cheap 24vdc to 120vac High Wattage High Frequency Solar Inverter 3200W Electric Inverter For Home from wholesalers

    24vdc to 120vac High Wattage High Frequency Solar Inverter 3200W Electric Inverter For Home

    Ask Lasest Price
    Brand Name : ZGD
    Model Number : zgd~s3kw
    Certification : CE
    Price : $380.00/Sets 1-9 Sets
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 50000 sets per month
    Delivery Time : 7~15 working days
    • Product Details
    • Company Profile

    24vdc to 120vac High Wattage High Frequency Solar Inverter 3200W Electric Inverter For Home

    High Wattage 3200W High Frequency Power Solar Inverter Reverse Control Integrated

    Communication Connection

    • Please use supplied communication cable to connect to inverter and PC. Insert bundled CD into a computer and follow on-screen instruction to install the monitoring software. For the detailed software operation, please check user manual of software inside of CD.
    • Wi-Fi cloud communication (option):

    Please use supplied communication cable to connect to inverter and Wi-Fi module. Download APP and installed from APP store, and Refer to “Wi-Fi Plug Quick Installation Guideline” to set up network and registering. The inverter status would be shown by mobile phone APP or webpage of computer.


    • GPRS cloud communication (option):

    Please use supplied communication cable to connect to inverter and GPRS module, and then applied external power to GPRS module. Download APP and installed from APP store, and Refer to “GPRS RTU Quick Installation Guideline” to set up network and registering. The inverter status would be shown by mobile phone APP or webpage of computer.




    Specification
    INVERTER MODEL3200W5200W
    Rated Output Power3200W5200W
    Output Voltage WaveformPure Sine Wave
    Output Voltage Regulation230Vac±5%
    Output Frequency50Hz
    Peak Efficiency93%
    Overload Protection5s@≥150% load; 10s@110%~150% load
    Surge Capacity2* rated power for 5 seconds
    Nominal DC Input Voltage24Vdc48Vdc
    Cold Start Voltage23.0Vdc46.0Vdc
    Low DC Warning Voltage
    @ load < 50%23.0Vdc46.0Vdc
    @ load ≥ 50%22.0Vdc44.0Vdc
    Low DC Warning Return Voltage
    @ load < 50%23.5Vdc47.0Vdc
    @ load ≥ 50%23.0Vdc46.0Vdc
    Low DC Cut-off Voltage
    @ load < 50%21.5Vdc43.0Vdc
    @ load ≥ 50%21.0Vdc42.0Vdc
    High DC Recovery Voltage32Vdc62Vdc
    High DC Cut-off Voltage33Vdc63Vdc
    No Load Power Consumption<35W

    INVERTER MODEL3200W5200W
    Input Voltage WaveformSinusoidal (utility or generator)
    Nominal Input Voltage230Vac
    Low Loss Voltage170Vac±7V (UPS);
    90Vac±7V (Appliances)
    Low Loss Return Voltage180Vac±7V (UPS);
    100Vac±7V (Appliances)
    High Loss Voltage280Vac±7V
    High Loss Return Voltage270Vac±7V
    Max AC Input Voltage300Vac
    Nominal Input Frequency50Hz / 60Hz (Auto detection)
    Low Loss Frequency40±1Hz
    Low Loss Return Frequency42±1Hz
    High Loss Frequency65±1Hz
    High Loss Return Frequency63±1Hz
    Output Short Circuit ProtectionCircuit Breaker
    Efficiency (Line Mode)>95% ( Rated R load, battery full charged )
    Transfer Time10ms typical (UPS);
    20ms typical (Appliances)

    Certificate
    Packing & Delivery
    FAQ
    1. who are we?
    We are based in Guangdong, China, start from 2013,sell to Domestic Market(50.00%),Southeast Asia(5.00%). There are total about 101-200 people in our office.

    2. how can we guarantee quality?
    Always a pre-production sample before mass production;
    Always final Inspection before shipment;

    3.what can you buy from us?
    Industrial UPS,Capacitive UPS,Modular UPS,High Frequency UPS,Low Frequency UPS

    4. why should you buy from us not from other suppliers?
    As a manufacturer with over 10 years of experience, Shenzhen ZGD Technology Co., Ltd. has more than 10 production lines which can produce 100,000 pieces of UPS every month. Over 10% of our staff members are engineers and professional technicians and more

    5. what services can we provide?
    Accepted Delivery Terms: FOB,CIF,EXW;
    Accepted Payment Currency:USD,CNY;
    Accepted Payment Type: T/T,L/C,Western Union;
    Language Spoken:English,Chinese
