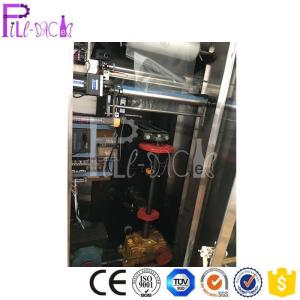

    Automatic 500ML Liquid Sachet Packing Machine 2200 Bags Per Hour

    Ask Lasest Price
    Brand Name : FillPack
    Model Number : 500A1
    Certification : CE / ISO9001
    Price : 1365-2520USD/set
    Payment Terms : L/C, D/A, D/P, T/T, , MoneyGram
    Supply Ability : 20 Sets Per Months
    Delivery Time : 25 Working Days After Deposit
    • Product Details
    • Company Profile

    Automatic 500ML Liquid Sachet Packing Machine 2200 Bags Per Hour

    Sachet liquid filling machine with plastic bag for water/oil/soy sauce/milk pouch packing
    Features:
    1.The whole process is completed automatically and highly efficient.
    2. Either under set length control or photoelectric color tracing, bag length is set and cut in one step.
    3. The temperature is under independent PID control, more suitable for different packing materials, the tolerance is ±1%.
    4. Equip easy tear-off gap device, so there is an easy tear-off gap on each finished product.
    5. The driving system is simple and reliable, and maintenance is easy.
    6. Main parts are made of stainless steel, meet the GMP standard.
    7. Automatic self support lubricating system, the machine can continuous more than 24 hours.
    8. Applicable material should be composite film like: PET/PE, Paper/PE, PET/AL (PET-AL), PE, OPP/PE etc.
    Model list and technical specifications:
    Model
    500A1
    1000A1
    500A-2
    Bag length (mm)
    50-150
    50-250

    50-150

    Bag width (mm)
    40-150
    40-175
    40-150
    Packaging film width (mm)
    100-320
    100-380
    100-320
    Package volume (ml)
    0-500
    0-1000
    0-500
    Packing speed (bags/h)
    2000-2200
    1100-1300
    2000-2200
    Power (kw)
    1.6
    2.5
    1.6
    External dimensions (mm)
    880*760*1800
    1050*850*2050
    850*760*1800
    Weight (kg)
    275
    380
    275

    General:
    1, Application: all kinds of liquid without gas, especially soy, wine, vinegar, juice, fruit pulp, soybean
    milk, peanut oil, vegetable oil, plant oil, mineral water, and liquid chemical products.
    2, Sealing style: back sealing
    3, Function: film sterilization,auto complete Bag-making, filling, sealing, printing, cutting and
    counting
    4, Whole machine with stainless steel covering, With foot wheels for easy transportation;


    Packaging film parameters:
    Material:LDPE
    Printing:1-6 colors
    Width:320mm (suitable for up to and including 500ml);350mm (suitable for 1000ml)
    Thickness:75micron,80micron,90micron(suitable for 1000ml)
    Sachet volume:250ml,330ml,400ml,500ml,1000ml
    Packing detail:18kg/roll,1 roll/cartoncarton size:30*30*33.5cm
    1ton have 1.72cbm,20' container could load 898 cartons,about 17tons.
    1kg film could make how many pcs 500ml sachet with different thickness:
    80micron thickness:1kg roll film could make about 280 sachets
    75micron thickness:1kg roll film could make about 298 sachets
    1kg film could make how many pcs 1000ml sachet with 90micron thickness:
    90micron thickness:1kg roll film could make about 136 sachets
    Application:water pouch packaging, water sachets, pure water packaging,mineral water packaging,flavoured water bag packaging,Juice packaging,water bags packaging
    We can also provide matching water treatment lines.
