1. Introduction
CD05HPT is a mini Full HD Video links and duplex two way data ip
protocol, provided full hd video transmission and ttl data
telemetry, ip video payload in and out.
It support video format(H.264+H.265) coding, support video
resolution of 1080P/60, larger range(air to ground 5000m) and low
delay(50-70ms) transmission. The system
supports two-way communication for ttl data, adjustable video
resolution, bit rate output with 115200. It can using on industrial
drone, drone, mapping drone, delivery drone.
2. Feature
- Latency:50-70ms
- Support TTL/Mavlink video Telemetry
- Support H.264 and H.265 coding and decoding.
- High video streaming signal
- Offering control, telemetry & payload HD and ethernet video out.
- Video: Video sources self-adaptive(Max 1080P/60), Support HD
digital Input/output
3. Specifications
| Wireless |
| Frequency Range | 2.4GHZ (2402-2482GHZ) |
| Bandwidth | 4Mhz |
| Data Rate | 3 ~ 5Mbps |
| RF Power | 500mW (Air to Ground 5km) |
| Error Detection | LDPC FEC,Video H.264/265 Super Error Correction |
| Latency | ≤15-30ms |
| Receive Sensitivity | -100dBm@4Mhz |
| Video |
| Video Input | Mini HDMI |
| Ressolution | Ultra HD 1080p/60fps |
| Compressed Format | H.264/H.265 |
| Color Space | 4:2:0(Default),4:2:2/4:4:4(Op.) |
| System |
| Start-up Time | ≤30s |
| Transmission | Video＋Duplex Control Data |
| Data Protocol | SBUS/TTL/MAVLINK Telemetry |
| Power Supply | DC7 ~ 18V Power Supply |
| Security | AES128 Encryption |
| Interface |
| RF Antenna | SMA×1 |
| HDMI Interface | Mini HDMI(HDMI Type C)×1 |
| Serial Port Interface | TTL Serial to USB Connector×1 |
| Ethernet Interface | Ethernet to RJ45 Connector×1 |
| Power Input | 2Pin to DC Jack Connector×1 |
| Physical |
| Dimension | 72x47x19mm |
| Weight | 94g(Transmitter),94g(Receiver) |
| Operating temperature | -40°C ~ ＋85°C |
4. Technical Support of drone transmitter
Q1:How long range from air to ground?
4-6km from airborne to ground
Q2:Video output type?
HD+Ethernet RJ45 Port
Q3:Frequency would be?
2.4GHz S band only
Q4:Transmitting power?
27dbm 0.5Watts

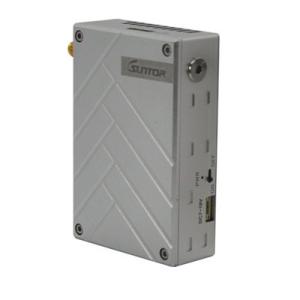

5. Product picturer of drone transmitter:
