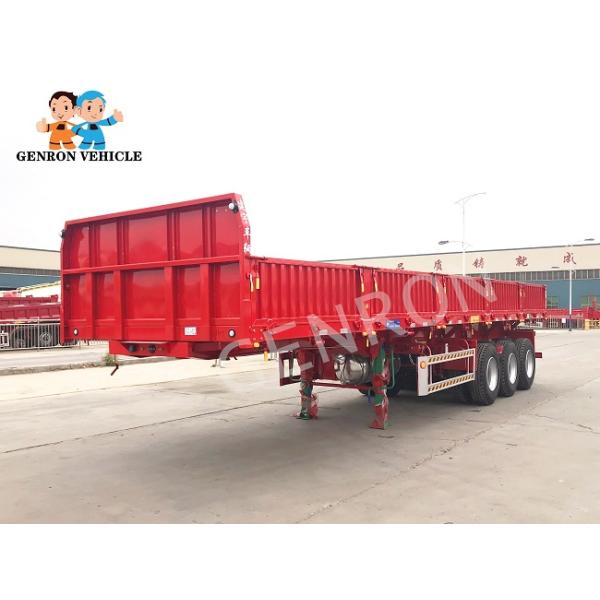

30 - 40 Tons Capacity Drop Side Dump Trailer Drop Side Semi Trailer
Function & Details Show:
1,Fence semi trailer side wall semi trailer is one of the most
widely used type of trailer, can transporting all kinds of cargo,
ex: wood, sand, stone, cement, equipment and so on；
2,Transporting 20ft or 40ft container with twist locks (twist locks
can setting 8 pcs or 12 pcs). All of our product can be customized.
3, The Fence height is standard size 600mm, and also can be
customized as 800mm or 1000mm.
We adopt e-coating process,complete chassis of container semi
trailer is sand blasted to clean rust,1 coat of anticorrosive
prime, 2 coats of final paint.Make sure 7 years not drop paint,and
not lose varnish.
| Tare Weight | About 7.6T |
| Dimension | 13000mm*2490mm*2860mm |
| Loading Capacity (T) | ≤ 60 T |
| Axle | 13 T/16T, FUWA /BPW /Huajing Brand |
| Rim | 9.00-22.5 9.75-22.5(special for export market ) |
| Tire | 12.00R22.5/ 315 80R22.5 (special for export market ) |
| Suspension | Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW brand ) (special for export
market ) |
| Spring Leaf | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 (special for export market ) |
| King pin | JOST brand 2.0 or 3.5inch bolts type or Welding type |
| Support leg | JOST brand D200T or China brand 28Tons (Double speed) |
| Main beam | Height: 500mm, upper plate is 14mm, middle plate is 8mm, Down plate is 16mm; Material is Q345B Steel. |
| Side beam | 16mm or 18mm channel steel (Material is Q235steel). |
| Bottom Platform | 3mm diamond steel plate |
| Side Wall | 600mm-1500mm ,or can be do box type ,for choose |
| Brake chamber | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL
brand.One piece of 45L air tankers. |
| ABS | Optional |
| Twist Locks | Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type)
,optional |
| Valve | WABCO valve |
| Light | LED light (special for export market ) |
| Voltage | 24V |
| Receptacle | 7 ways (7 wire harness) |
| Tool box | One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1
unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of
anticorrosive prime, 2 coats of final paint |
| Shipping Terms: | By bulk cargo carrier, RORO or 40HQ container. |
Shipping Item : A & B
A:
This package for roro ship or bulk cargo ship delivery .
If your order is more than three units or 6 or 9 can be package
like this .
Pls check your destination port if there is bulk cargo port near to
your city.
Disadvantage : the bulk cargo fee is a little expensive than the
container fee.
Advantage: no need welding ,can be work directly after you
received.
B:
If your order is two units container semi trailer or double pieces
you can choose put two units into one 40HQ container for shipping ,
we will design one tail part connected by strong bolts ,after you
received the trailer you should connecting them by strong bolts
first and then welding the two parts together ,Its easily work for
welding man.
