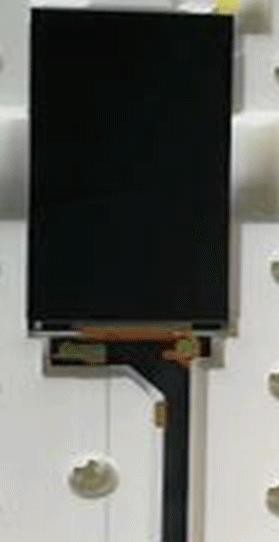

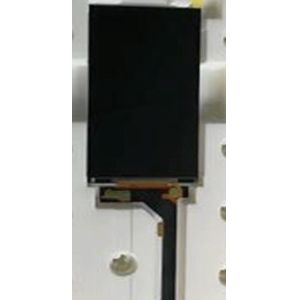

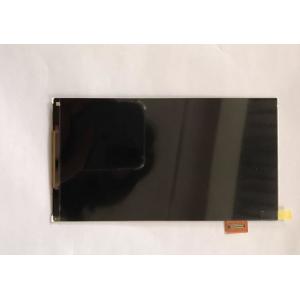

    LS055R3SX01 5.5" 1536×2560 RGB 460cd/m² Sharp TFT LCD Display

    Ask Lasest Price
    Brand Name : SHARP
    Model Number : LS055R3SX01
    Certification : ISO9001
    Payment Terms : TT/PAYPAL/WESTERN UNION/ESCROW
    Supply Ability : 1000PCS
    Delivery Time : 1-2 DAYS
    • Product Details
    • Company Profile

    LS055R3SX01 5.5" 1536×2560 RGB 460cd/m² Sharp TFT LCD Display

    1.Sharp LS055R3SX01 Application Features

    Basic Information :Brand NameModel NameTypeModel Alias
    SHARPLS055R3SX01CG-Silicon , LCM-
    Maximum Ratings :RoHSOperating TemperatureStorage TemperatureVibration Level
    -20 ~ 60 °C-30 ~ 70 °C-

    2.Sharp LS055R3SX01 Optical Features

    Basic Information :LuminanceWork ModeContrast Ratio
    460 cd/m² (Typ.)New Mode2, Normally Black, Transmissive1280:1 (Typ.) (Transmissive)
    Good View atViewing AngleResponse Time
    Symmetry80/80/80/80 (Typ.)(CR≥10)30 (Typ.)(Tr+Td) (ms)
    Dispaly Color :Color Temperature:Support ColorColor Coordinate
    6778K16.7M (8-bit)X:0.308; Y:0.327
    1931 Color Gamlt :NTSC RatiosRGB CoverageAdobe RGB Coverage
    71%98%74%
    DCI-P3 CoverageRec.2020 CoverageRemarks
    74%53%sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
    White Uniformity :1.25/1.43 (Typ./Max.)(9 points)

    3.Sharp LS055R3SX01 Backlight Features

    Back-light Features:TypePositionLife(Hours)AmountShapeReplacement
    WLEDEdge light type-8S2P2 strings-
    WLED Electrical :Input VoltageInput CurrentPower Consumption
    24/26.4V (Typ./Max.)20mA (Typ.)
    Interface Features :WLED Driver StatePhysical TypeInterface Position
    NoIncluded in panel signal interface-

    4.Sharp LS055R3SX01 Mechanical Features

    Screen Size :5.5"
    Pixel Features :Pixel NumberPixel FormatDot Pitch (H×V)Pixel Pitch (H×V)
    1536(RGB)×2560RGB Vertical Stripe0.0155×0.0465 mm0.0465×0.0465 mm [546PPI]
    Mechanical Size :Display Area (H×V)Bezel Opening (H×V)Overall Dimension (H×V)Overall Depth
    71.424×119.04 mm-73.824×126.44 mm1.30±0.1 mm
    Outline Features :Form ShapeAspect Ratio (H:V)OrientationShape Style
    Flat Rectangle3:5Portrait type
    Other Spec :MassPanel CoverSurface Treatment
    21.1g--

    5.Sharp LS055R3SX01 Electronics Features

    Refresh Rate :60Hz
    Reverse Scan :No
    Driver IC List:COG Built-in S6D1HA0

    6.Sharp LS055R3SX01 Interface Features

    Signal Electrical :Input VoltageInput CurrentPower Consumption
    1.8/5.5/-5.5V (Typ.)(IOVDD/VSP/VSN)43.0/37.4/33.7mA (Typ.)(IOIDD/ISP/ISN)-
    Interface Features :Signal TypePhysical TypeInterface Position
    MIPI (4 data lanes)Connector-
    Interface Detail :Brand NameModel NameAmountPinsPin PitchPin Configuration
    JAEWP9-P032VA11 pcs32 pins0.4 mm

    7.Sharp LS055R3SX01 Packing Features

    Package Box :AmountWeightSize (L×W×H)
    120 pcs / box8.20 Kgs575×360×225 mm (L×W×H)
