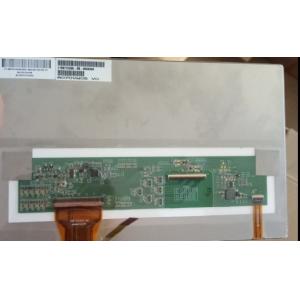

12.1" LCM 800×600RGB  340cd/m² LQ121S1LG0A Sharp TFT LCD Display

    Buy cheap 12.1

    Buy cheap 12.1
    • Buy cheap 12.1
    • Buy cheap 12.1
    • Buy cheap 12.1

    12.1" LCM 800×600RGB  340cd/m² LQ121S1LG0A Sharp TFT LCD Display

    Ask Lasest Price
    Brand Name : SHARP
    Model Number : LQ121S1LG0A
    Certification : ISO9001
    Payment Terms : TT/PAYPAL/WESTERN UNION/ESCROW
    Supply Ability : 500PCS
    Delivery Time : 1-2 DAYS
    • Product Details
    • Company Profile

    12.1" LCM 800×600RGB  340cd/m² LQ121S1LG0A Sharp TFT LCD Display

    LQ121 Series LQ121S1LG45 LQ121S1LG44 LQ121S1LG42 LQ121S1LG41 LQ121S1LG0A


    Sharp LQ121S1LG0A Optical Details

    Basic Detail :
    Luminance
    340 cd/m² (Typ.)
    Contrast Ratio
    850:1 (Typ.) (Transmissive)
    Good View at
    -
    Response Speed
    30 (Typ.)(Tr+Td) ms
    Viewing Angle
    80/80/80/80 (Typ.)(CR≥10)
    Operating Mode
    TN, Normally White, Transmissive
    Color Performance :
    Chromaticity
    Wx:0.290; Wy:0.305
    Support Color
    262K/16.2M (6-bit / 6-bit + FRC)
    Color Temperature
    8405K
    White Variation
    1.33 (Max.)(5 points)
    1931 Color Gamlt :
    NTSC Ratio
    78%
    sRGB
    100% coverage
    Adobe RGB
    78% coverage
    DCI-P3
    81% coverage
    Rec.2020
    58% coverage
    Remarks
    sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

    Sharp LQ121S1LG0A Mechanical Details

    Pixel Features :
    Number of Pixel
    800(RGB)×600, SVGA
    Arrangement
    RGB Vertical Stripe
    Dot Pitch(W×H)
    0.1025×0.3075 mm
    Pixel Pitch(W×H)
    0.3075×0.3075 mm [82PPI]
    Physical Size :
    Active Viewing
    246(W)×184.5(H) mm
    Overall Dim.
    265(W)×205(H) mm
    Bezel Opening
    249.6(W)×188.1(H) mm
    Overall Depth
    9.5 (Typ.) mm
    Outline Features :
    Form Shape
    Flat Rectangle
    Orientation
    Landscape type
    Aspect Ratio(W:H)
    4:3
    Shape Style
    Fixation :
    Side mounting holes (4-M2) on up, down bezel
    Other Detail :
    Mass
    550g (Max.)
    Surface
    Antiglare, Hard coating (3H)

    Sharp LQ121S1LG0A Interface Detail

    Signal Electrical :
    Input Current
    260/350mA (Typ./Max.)
    Input Voltage
    3.3V (Typ.)
    Consumption
    -
    Signal Interface
    LVDS (1 ch, 6/8-bit)
    Interface Features :
    Position
    -
    Type
    Connector
    Interface Detail :
    Brand
    Model
    Pitch
    Pins
    Amount
    Pin Assignment
    JAE
    FI-XPB30SRL-HF11
    1.0 mm
    30 pins
    1 pcs
    LVDS-30P1C8B-270A

    Sharp LQ121S1LG0A Backlight Details

    Backlight Features :
    Type
    WLED
    Quantity
    -
    Position
    Edge light type
    Replacement
    -
    Shape
    -
    Life Time
    70K(Typ.) (Hours)
    Interface Features :
    Position
    -
    Type
    Included in signal interface
    Backlight Driver :
    With LED Driver
    Driver Electrical :
    Voltage Supply
    12.0±1.8V
    Current Supply
    350/500mA (Typ./Max.)


    FAQ:

    Q1: What's the quality of your LCD Panel?
    A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

    Q2: What is your return and refund policy?
    A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

    Q3: How long is the lead time?
    A: The lead time is about 1-3 working days after receipt of payment.

    Q4: How can I get the quotation?
    A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
