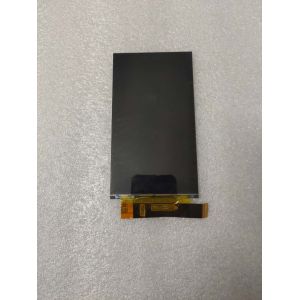

LQ055T3SX02 Sharp 5.5" LCM 1080×1920RGB  450cd/m² INDUSTRIAL LCD DISPLAY

LQ055 Series LQ055T3SX03 LQ055T3SX02Z LQ055T3SX02

LQ055T3SX02 supports display 1080(RGB)×1920 (FHD) with aspect ratio of 9:16 (W:H), whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 403 PPI. As for mechanical detail, it features active area of 68.04(W)×120.96(H) mm, outline size of 70.84(W)×128.56(H)×1.65(D) mm, net weight of 23.0g (Typ.). As a New Mode2, Normally Black, Transmissive LCM product, LQ055T3SX02 can provides 450 cd/m² display brightness 1000:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 35 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 70% (NTSC). This product adopted 6S2P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed.

Sapientia Display Co.,LIMITED is a professional leading company for LCD panels in China and Hong Kong China,established in year 2015, strong at collecting OEM excess stock from world famous big OEM factories, with experienced sourcing and sales and QC team, we can offer most competitive price with qualified panels.

Main products widely used for industrial facilities display, medical machine display, automotive display system, advertisement display and other portable display. We have our own warehouses which located in HK, SHENZHEN, HUIZHOU and HANGZHOU cities, with huge inventories of world famous brands LCD panels such as NEC, AUO, SHARP, LG, TIANMA, HITACHI, MITSUBISHI, TOSHIBA, SAMSUNG.

Panel size from 0.96 inch to 55inch, most panels packed in new original, factory box packing, panels been well kept in good status in our professional warehouses, engineering teams can support professional techique supports for lighting on panels, offering suitable cables/inverters/driving boards and other relative accessories.

Sapientia display will be your best choice for LCD panels, contact us for WIN-WIN business!
