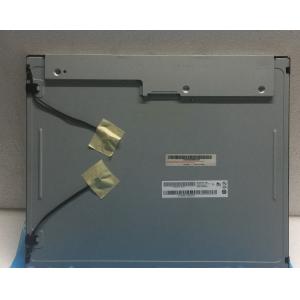

M170E5-L09 CMO 17.0" 1280(RGB)×1024 300 cd/m² INDUSTRIAL LCD DISPLAY

    Buy cheap M170E5-L09 CMO 17.0

    Buy cheap M170E5-L09 CMO 17.0
    • Buy cheap M170E5-L09 CMO 17.0
    • Buy cheap M170E5-L09 CMO 17.0
    • Buy cheap M170E5-L09 CMO 17.0
    • Buy cheap M170E5-L09 CMO 17.0
    • Buy cheap M170E5-L09 CMO 17.0

    M170E5-L09 CMO 17.0" 1280(RGB)×1024 300 cd/m² INDUSTRIAL LCD DISPLAY

    Ask Lasest Price
    Brand Name : CMO
    Model Number : M170E5-L09
    Certification : ISO9001
    Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION
    Supply Ability : 100PCS
    Delivery Time : 1-2 DAYS
    • Product Details
    • Company Profile

    M170E5-L09 CMO 17.0" 1280(RGB)×1024 300 cd/m² INDUSTRIAL LCD DISPLAY

    CMO M170E5-L09 Application Details

    Basic Detail :ManufacturerModel NameM170E5-L09 3 Compatible
    Panel Typea-Si TFT-LCD , LCMAnother Name-
    Panel Size17.0 inchDesigned For
    Maximum Ratings :OP Temperature0 ~ 50 °CST Temperature-20 ~ 60 °C
    Vibration Level-RoHS
    Features :
    Remarks :High color saturation

    CMO M170E5-L09 Optical Details

    Basic Information :Luminance300 cd/m² (Typ.)Contrast Ratio600 : 1 (Typ.) (Transmissive)
    Good View at-Response Speed2/6 (Typ.)(Tr/Td) (ms)
    Viewing Angle88/88/80/80 (Typ.)(CR≥5)Operating ModeTN, Normally White, Transmissive
    Color Performance :ChromaticityWx:0.313; Wy:0.329Support Color16.2M (6-bit + FRC)
    Color Temperature6485KWhite Uniformity1.25/1.33 (Typ./Max.)(9 points)
    1931 Color Gamlt :NTSC Ratio73%sRGB93% coverage
    Adobe RGB76% coverageDCI-P376% coverage
    Rec.202055% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

    CMO M170E5-L09 Mechanical Details

    Pixel Features :Number of Pixel1280(RGB)×1024 [SXGA]ArrangementRGB Vertical Stripe
    Dot Pitch(W×H)0.088×0.264 mmPixel Pitch(W×H)0.264×0.264 mm [96PPI]
    Physical Size :Active Viewing337.92(W)×270.336(H) mmOverall Dim.358.5(W)×296.5(H) mm
    Bezel Opening341.9(W)×274.4(H) mmOverall Depth17.0±0.5 mm
    Outline Features :Form ShapeFlat RectangleOrientationLandscape type
    Aspect Ratio(W:H)5:4Shape StyleNormal bezel
    Fixation :Side mounting holes (8-M3) on left, right bezel
    Other Detail :Mass2.23/2.25Kgs (Typ./Max.)SurfaceAntiglare (Haze 25%), Hard coating (3H)

    CMO M170E5-L09 Electronics Details

    Refresh Rate :60Hz
    Reverse Scan :No

    CMO M170E5-L09 Interface Details

    Signal Electrical :Input Current0.81/1.13mA (Typ./Max.)Input Voltage5.0V (Typ.)
    Consumption-Signal InterfaceLVDS (2 ch, 8-bit)
    Interface Features :Position-Physical TypeConnector
    Signal Interface :BrandModelAmountPin PitchPin AmountPin Assignment
    JAEFI-XB30SRL-HF111 pcs1.0 mm30 pinsLVDS-30P2C8B-160D

    CMO M170E5-L09 Lightting Details

    Lamp Features:Lamp ShapeStraightLamp TypeCCFLPositionEdge light type (Top and Bottom)
    Exchange-Amount4 pcsLife40K(Min.) (Hours)
    Lamp Electrical :Input Current2.0/7.0/7.5mA (Min./Typ./Max.)Input Voltage640±64V
    Frequency40/60/80KHz (Min./Typ./Max.)Turn-on Voltage1260/1500V (Max.)(Ta=+25/0℃)
    Consumption17.92W (Typ.)
    Interface Features :Position-Physical TypeConnector
    Interface Detail :BrandModelAmountPin PitchPin AmountPin Assignment
    JSTBHSR-02VS-14 pcs3.5 mm2 pinsBLL-2PINS-HL
    Backlight Driver :No

    CMO M170E5-L09 Packing Details

    Package Box :AmountSize (L×W×H)Weight
    5 pcs / box537×316×462 mm12 Kgs
