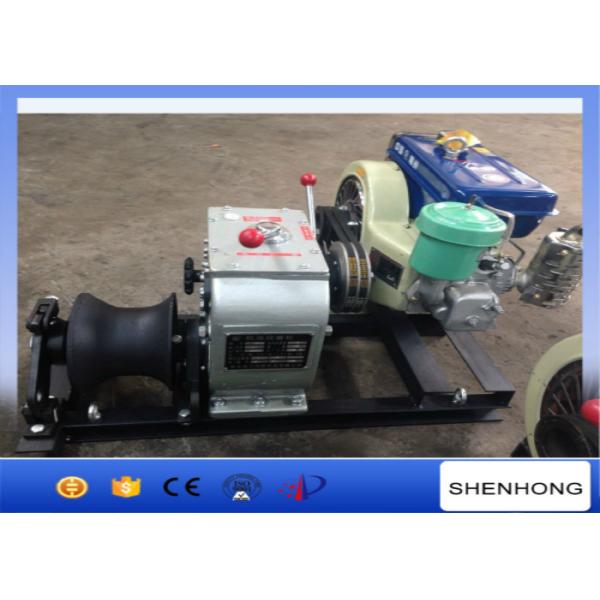

3 Ton Tower Erection Tools Cable Diesel Winch 4HP Single Capstan
For Cable Pulling
Introduction
The hoist another name is winch. Vertical lifting transport
machinery is an important component of the tie in with the , mast,
pulley blocks, and auxiliary equipment, used to enhance the
materials, installation of equipment operations, from human or
mechanical power-driven drum, winding traction rope to complete the
installation work. Vertical, horizontal or inclined simple tractor
Lifting heavy objects. Two types of the hoist are manual and
electric two kinds. The design of the 3-ton electric hoist motor
contions electromotor ,coupling,arrester,retarder,drum,boom sheave
,a system of pulleys set,hook, etc..
INTENDED USE
Cable Winch is used for tower erection,pole setting,stringing wire
in electrical power line construction.
Winch can be modified as per requirement, such as changing curve
capstan into straight even cylindrical shape and coming with steel
rope.
Features
1. Small size & compact structure. The machine is now supported by
gasoline engine, diesel engine, electric or imported gasoline
engine.
2. Light weight. For example, the weight of 3 ton gasoline engine
powered winch is 88 kgs. Equipped with diesel engine or motor, the
winch is 108 kg. Equipped with imported gasoline engine, the winch
is only 82 kg, which is very convenient transported. They are
especially suitable for line construction in water area and
mountain. String machine equipped with a small capstan, can also be
used for a vertical rod, wire. One machine with two function in the
wild field helps to reduce crop losses.
3. High efficiency. It reduces the labor intensity, improves
working efficiency with less operators and convenient field
command.
4. Safe and reliable. The machine has the interlocking brake
device, accurate positioning, excellent braking performance ,
flexible usage, safety and trust.
5. Widely used. According to customers’ response and field
investigation, this machine has wide usage, such as rod up, a
vertical rod, the pull rod, line release, line reel, the bridge
plate traction, lifting and other purposes.
Technical Data
| Model | Engine | Gear | Pulling Speed(m/min) | Pulling Force(Ton) | Weight(Kg) |
| JJM1Q | HONDA GX160 5.5HP | (Slow) | 6 | 0.8 | 50 |
| (Fast) | 18 | 0.6 |
| Reverse | 15 | No Lifting! |
| JJM1D | Electric motor 2.2kw | (Slow) | 6 | 0.8 | 55 |
| (Fast) | 18 | 0.6 |
| Reverse | 15 | No Lifting! |
| JJM3Q | HONDA GX160 5.5HP/LIFAN Chinese Gasoline engine 6.6HP | (Slow) | 4 | 3.0 | 82 |
| (Fast) | 8 | 1.8 |
| Reverse | 4 | No Lifting! |
| JJM3C | Diesel engine(4HP) | (Slow) | 4 | 3.0 | 108 |
| (Fast) | 8 | 1.8 |
| Reverse | 4 | No Lifting! |
| JJM3D | Electric Engine 3KW | (Slow) | 3.5 | 3.0 | 108 |
| (Fast) | 7.5 | 1.8 |
| Reverse | 3.5 | No Lifting! |
| JJM5Q | YAMAHA Engine MZ360/
HONDA Engine GX390/
LIFAN Chinese Gasoline engine | (Slow) | 5 | 5.0 | 145 |
| (Fast) | 11 | 3.0 |
| Reverse | 3.2 | No Lifting! |
| JJM5C | Diesel Engine 6HP | (Slow) | 4.5 | 5.0 | 160 |
| (Fast) | 8.5 | 2.5 |
| Reverse | 4 | No Lifting! |
| JJM5D | Electric Engine 4KW | (Slow) | 4.5 | 5.0 | 108 |
| (Fast) | 8.5 | 3.0 | |
| Reverse | 4 | No Lifting! | |
| JJM5B | Diesel Engine R186 10HP | I | 5 | 5 | 160 |
| II | 9 | 3 |
| III | 14 | 1.5 |
| IV | 24 | 0.9 |
| JJM8Q | HONDA Engine GX390/LIFAN Chinese Gasoline engine
| (Slow) | 4 | 8.0 | 180 |
| (Fast) | 8 | 4.0 |
| Reverse | 3.8 | No Lifting! |
| JJM8C | Diesel engine 10HP | (Slow) | 4 | 8.0 | 200 |
| (Fast) | 8 | 4.0 |
| Reverse | 5.5 | No Lifting! |
| JJM8D | Electric Engine 5.5KW | (Slow) | 4 | 8.0 | 200 |
| (Fast) | 7 | 4.0 |
| Reverse | 5 | No Lifting! |
GENERAL SAFETY RULES
WARNING:Read and understand all the instructions.Failure to follow all
instructions listed below may result in electric shock,fire or
serious injury.
WARNING:The warnings,cautions and instructions discussed in this
instruction manual cannot cover all possible conditions or
situations that could accur.It must be understood by the operator
that common sense and caution are factors which cannnot be built
into this product,but must be supplied by the operator.
WINCH USE & SAFETY
1. WARNINGNever overloaded.
2. Always keep the oil in the gearbox up to 0.8L.
3. There are spring and steel ball in the shifting fork to prevent
jumping gears.Always check if the spring and steel balls are in the
right position.
4. Always check the wear pattern of brake pad.
5. Never change the anchor position randomly.
6. Always keep the guard sheet lock core grinder.Never use it when
the guard sheet is off.
7. Gearbox is made of aluminum alloy,never screw too tight.
8. If there is anything drop in the gearbox,always stop the working
machine first.Otherwise it may cause damage to the wheel gear and
box.
9. Always check if there is anywhere loosens after long distance
transportation.10. Follow the instructions,fill right oil before
operating.
