    3S 11.1V 12.6V 25A W / Balance 18650 Li Ion Battery Protection Board

    Ask Lasest Price
    Brand Name : DZSICO
    Model Number : 18650 Li-Ion Lithium Battery PCB Protection Board
    Certification : ISO9001 | ISO14001 | CE | ROHS
    Price : 10 - 449 Pieces = $1.28, 450 - 889 Pieces = $1.16, 890 - 8999 Pieces = $1.13, ≥ 9000 Pieces = $1.11
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 18600 Pieces Per Month 18650 Li-Ion Lithium Battery PCB Protection Board
    Delivery Time : 1-10T - 7Days, 11-25T - 10Days, 26-100 - 10Days, > 100-To be negotiated
    • Product Details
    • Company Profile

    3S 11.1V 12.6V 25A W / Balance 18650 Li Ion Battery Protection Board

    3S 11.1V 12.6V 25A W / Balance 18650 Li-Ion Lithium Battery PCB Protection Board

    # 18650 Li-Ion Lithium Battery PCB Protection Board Properties

    Brand new
    Size: about 56mm*45mm*1.2mm
    Over voltage range: 4.25-4.35v±0.05v
    Over discharge voltage range: 2.3-3.0v±0.05v
    Maximum operating current: 0-25A
    Maximum transient current: 34-40A
    Quiescent current: less than 30uA
    Internal resistance: less than 100mΩ
    Working temperature: -40---+50°C
    Storage condition: -40-- +80°C
    Effective life: more than30000h
    Short circuit protection: Yes, delayed self recovery


    # 18650 Li-Ion Lithium Battery PCB Protection Board Precautions:

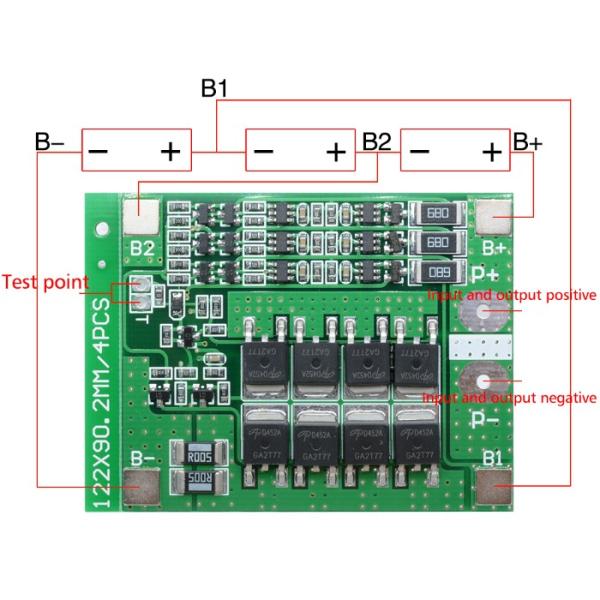

    Strictly according to the diagram wiring: 0V(B-)3.7V(B1)7.4V(B2)11.1V(B+), Do not deliberately short circuit.
    After the line is connected, Need to charge first, then have output.
    When the battery is connected in series with 3 groups, Please ensure that the voltage of each battery is the same. If not same, please fill in each set of batteries and then use.
    Do not mix the good battery and the battery.
    The capacity of the battery internal resistance is closer will be better.
    Attention: Do not mix the good battery and poor battery to use. The internal resistance of 3 battery capacity are closer will be better. Please buyers know the professional knowledge of this module before buying


    # 18650 Li-Ion Lithium Battery PCB Protection Board Note:
    Due to different producing batches, product details might might a little different. If you minding the difference, please buy it carefully.
    Please allow 1-5mm differs due to manual measurement.
    Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same


    # 18650 Li-Ion Lithium Battery PCB Protection Board Package Included:
    1PCS X PCB Protection Board
