    Double Wall Galvanized Steel Outdoor Power Cabinet Rectifier System Enclosure

    Ask Lasest Price
    Brand Name : ESTEL
    Model Number : ET9090210-UP-2D-HEX
    Certification : ISO9001
    Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 1800PCS per month
    Delivery Time : 15 to 20 days
    Price : 715-4286 usd
    • Product Details
    • Company Profile

    Double Wall Galvanized Steel Outdoor Power Cabinet Rectifier System Enclosure


    Double Wall Galvanized Steel Outdoor Power Cabinet Rectifier System Enclosure IP55 2100mm Height


    1. Introduction of outdoor telecom cabinet


    Outdoor telecom cabinet ET9090210-UP-2D-HEX includes 23U 19 inch rack and two layer battery shelf which are used for installing 19” equipment & power system and battery. One front door and one rear door design is easy for equipment install and maintenance. The material adopts Sandwich structure panel, and use heat exchanger for cooling.


    2. Technical spec of outdoor power cabinet


    ModelET9090210-UP-2D-HEX
    External SizeW×D×H 900×900×2100mm
    Equipment Install MethodStandard 23U 19” rack and 2 layer battery shelf (can hold battery size L×W×H 546×125×317mm, 8 pcs, 2 string)
    DoorTotally 2 doors: 1 front door and 1 rear door
    LockAnti-theft three point lock, specially for outdoor cabinet(support padlock)
    MaterialSandwich structure panel, double wall, galvanized steel, with heat insulation
    Cabinet Installation methodFloor mounted, including floor mount accessories.

    Cable Inlet

    On the bottom front and back
    Lifting Ear4 ears on the cabinet base
    EarthingGrounding copper bar
    Working Temperature-40°C~+75°C
    Ingress ProtectionIP55
    Relative Humidity5% ~ 100%
    Air Pressure62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
    Solar Radiation Intensity1120 ×(1±5%)W/m2
    Cooling

    (1) Heat Exchanger Cooling Capacity: 150W/K; Power Supply: 220VAC, 60Hz

    (2) Fan Two AC220V 60Hz fans,connected to heat exchanger

    Both heat exchanger and fan on the front door

    Environment Monitoring System

    1* environment monitoring unit, 1U,SNMP communication; 1* smoke sensor;

    1* water sensor;

    1* temperature&humidity sensor;

    1* tilt &shock combination sensor;

    1* door sensor

    Power Supply: 220VAC, 60Hz

    Busbar1 PC
    LED LampPower Supply: 220VAC, 60Hz
    Socket8 -bit universal socket, 220V 16A
    3. ​Feature
    • IP55 ingress protection, waterproof, dustproof.
    • Front and rear doors use standard three-point anti-theft lock. Three point means an upper, middle and lower three-point locking structure. Enhance the cabinet safety.
    • Sandwich structure panel: galvanized steel, double wall with heat insulation.
    • Standard 19 inch mounting posts.comply with IEC60297.
    • Both heat exchanger and fan include outer cover, effectively isolate the external harsh environment.
    • Cable entry is via the base as standard with side or roof entry available upon request.

    4. Advantage


    • Multi-stage cleaning and pre-treatment prior to the application of a 120micron powder coating
    • The cabinet structure have earthquake resistance function
    • Outdoor cabinet is compact and durable, space layout is reasonable, greatly reducing the construction cost
    • Waterproof, anti-corrosion, anti sand and anti ultraviolet, ensure cabinet can work longer in a harsh outdoor environment
    • Simpler: compared with on-site construction, deep integration of outdoor cabinet of communication base station and factory pre verification test are more standardized, safe and reliable; dynamic environment monitoring system monitors infrastructure in an all-round way, alarms abnormal conditions in time, and is safe.
    • More time saving: the outdoor cabinet of communication base station is of modular design, which can be installed and delivered in one day.

    ​5. Applications


    Our cabinet is widely used in outdoor communication industry. The cabinet can be equipped with various communication equipment, rectifier power supply system, monitoring unit, battery, optical fiber, etc. Suitable for use in streets, building tops, mountain tops, urban, rural, residential areas and other areas.


    6​. Size drawing

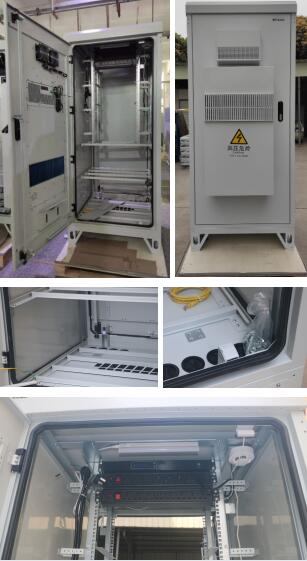

    7. Cabinet details display



    8. Package


    Cabinet package use free fumigation plywood which suitable for export. This package is anti moisture, anti impact and srong to ensure safe transportation.
