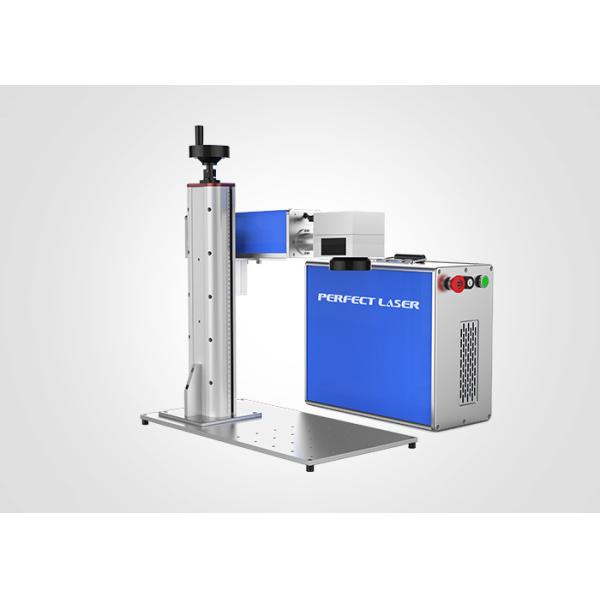

    Desktop 50W Metal Fiber Laser Marking Machine Cut And Engraving Gold And Silver Jewelry

    Desktop 50W Metal Fiber Laser Marking Machine Cut And Engraving Gold And Silver Jewelry

    (Model:PEDB-400B)


    ★ Product Introduction of laser marking and engraving machine


    This laser marking machine uses high-quality imported fiber lasers with fast marking speed and exquisite effects. A variety of laser light sources with different powers are available, suitable for any material and industry. The laser marking machine is small in size, convenient to transport,laser etching machine for metal can work for a long time in harsh environments, and has a long service life.


    ★ Machine Features of laser marking and engraving machine


    1. Using high-quality imported lasers, it is suitable for all kinds of ultra-fine marking with exquisite effects.

    2. The laser light source has a variety of different powers, which can be applied to a variety of different materials and industries.

    3. Fast marking speed can increase output.

    4. Small laser marking machine can adapt to harsh environments and has a long service life.

    5. No consumables, reducing costs.


    ★ Application of laser marking and engraving machine


    1. Metal engraving laser machine is widely used in jewelry, translucent plastic and various metal materials.

    2. This machine is widely used in jewelry industry,stainless steel products, communication industry, daily necessities, auto parts manufacturing industry, food and beverage packaging industry, etc.


    ★ Technical Date


    Model NoPEDB-400APEDB-400BPEDB-400CPEDB-400D
    TypePortableDesktopColorfulStandby
    ComputerNot includes PCIncludes PC
    Laser Source
    IPG SeriesPulsed, High Energy Ytterbium Fiber Lasers
    Mode of operationPulsed
    Polarizationrandom
    Nominal average

    10W - 30W For PEDB-400A /400B /400C


    output power10W - 50W For PEDB-400D
    Central emission wavelength1060-1070 nm ,Q-switched operation Output power adjustment range 10%-100%

    Emission Bandwidth

    (FWHM)

    <10 nm
    Long-term average power instability<5%
    Pulse width, (FWHM)100 ns
    Laser switching ON time180 μsec
    Laser switching OFF time180 μsec
    Pulse Repetition Rate* kHz20-80 kHz
    Energy per pulse (PRR = 20 kHz)0.95 mJ
    Typical beam quality, M2<1.8
    Output fiber delivery length3m
    Operating voltage220V
    Max. Power consumption600W
    Net Dimensions70*20*50cm80*38*72cm70*20*50cm143*62*101cm
    Net Weight44 kgs53 kgs44 kgs130 kgs
    Gross Weight60 kgs70 kgs60 kgs200 kgs
    Laser system
    Scanning Speed0-7000mm/s
    Marking Speed0-5000mm/s
    Marking size110mm×110mm (F-theta 160)
    Spot size≤ 40 micron (F-theta 160)
    Cooling unitAir cooled
    Pilot laser650nm diode laser, visible red light for marking guide
    Continuous working time≥16h
    Humidity45~85% (no condensation)
    Operating temperature0~40℃
    Control unitsLaser Mark (English Version)

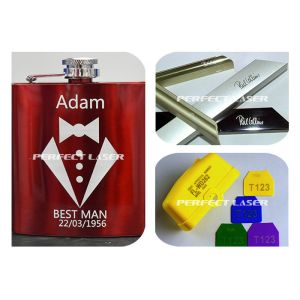

    ★ Machine Samples



    ★ Packaging & Delivery

    1. Prompt deliver at the very day.

    2. Well-trained and disciplined packing team.

    3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.

    4. Sophisticated and professional logistic agent.


    ★Competitive Advantages


    1. 100% custom pass guaranteed.

    2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.

    3. Flexible and Untraceable payment terms.

    4. Good after-sale service.

    5. We offer high quality products at competitive price in quick delivery.
