    HRC 60 Powdered Metal Gears Density 6.5g/Cm3 For Automotive Subassemblies

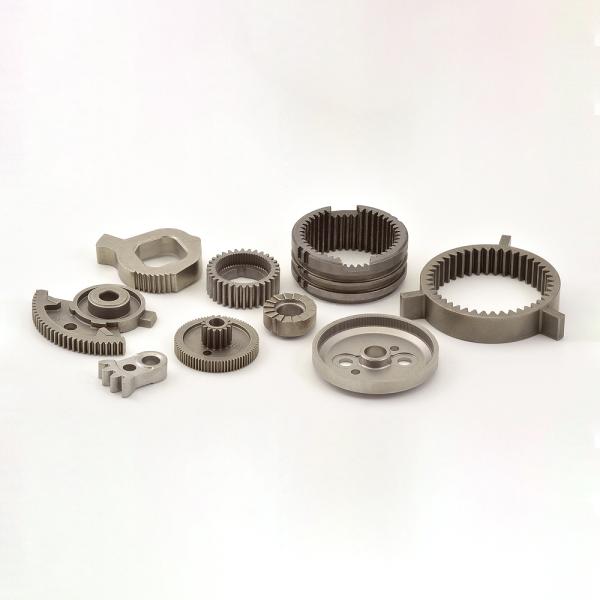

    Powder metal products for small gears and miniature components

    powder metal products for small applications, including small gears and miniature components for planetary drives, automotive sub-assemblies, drills, and electronics, and in particular, small components and assemblies for medical devices.

    Specialists in stainless steel and material blending, SFT provides you with technical expertise and the ability to discover a cost effective solution that maintains the integrity of your design.

    The benefits of powder metal products include:

    • High Quality, High Strength Small Metal Parts to Precision Tolerances.
    • Up to 70% Cost Savings over Other Processes.
    • Repetitive Accuracy.
    • Dimensional Accuracy.
    • Ability to Tailor Material to Be Ductile or Hard.
    • Ability to Blend Materials to Gain Desirable Properties.
    • Corrosion Resistance.
    • Scrap-Free, Environmentally “Green” Manufacturing Process.

    Performance of Oil Bearing

    (1)Performance of oil bearing (copper based & iron based)
    No.Features
    IllustrateUnitCopper basedCopper & iron basedIron based
    1Densityg/cm36.5-7.26.0-6.75.9-6.5
    2Surface porosity/After heated in lubricating oil from the sliding surface
    3Noise (distance 50 mm)dbbelow 20
    4Abrasion lossmbelow 15
    5Oil Content RateV%above 18
    6Pressure stains strengthMpaabove 150above 250above 280
    7HardnessMHV60-9060-9060-110
    8Friction coefficient/below 0.15below 0.25below 0.25
    9Lifehabove 2000

    (2) Performance of structuralparts (copper based & iron based)
    No.CuNiMoCFeDensity g/cm3Tensile strength MpaElongation %Hardness HBPerfect for
    1<1//<0.3other6.4-6.81504>45Low load structure
    21-5//<0.3other6.4-6.82003>55Middle load structure
    31-5//<0.3other6.8-7.23007>80High load structure, can carburizing heat treatment
    41-31-5<0.80.3-0.6other6.8-7.26002>160Upper load structure, can heat treatment
    53-51-5<0.80.3-0.6other7.2-7.47002>180Higher load structure, can heat treatment

    Dimensions and Capacities

    TypeMax.Torque (N.m)

    Nominal Overrunning

    Drag(N.m)

    Max. Overrunning

    (r/min)

    Max. Indexing

    (cycle/min)

    Stock Bore Size
    Inner RaceOuter Race

    Dia

    (H7)

    Keyway
    MZ151860.201800900150155×2.3
    MZ172150.201700800150175×2.3
    MZ203230.291600700150206×2.8
    MZ30-227350.391500500150226×2.8
    MA30-25258×3.3
    MZ303010×3.3
    MZ3510800.4914003001503510×3.3
    MZ45-4016200.6914003001504012×3.3
    MZ454514×3.8
    MZ60-5021100.9812002501505014×3.8
    MZ60-555516×4.3
    MZ606018×4.4
    MA70-6530401.2711002501506518×4.4
    MA707020×4.9
