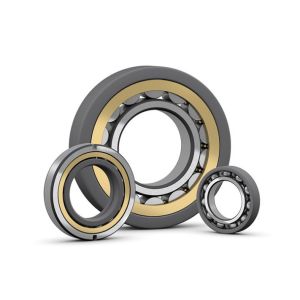

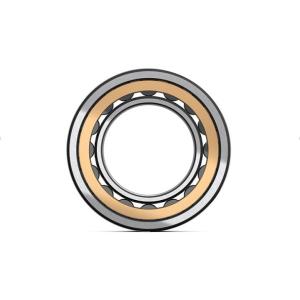

    Single Row Cylindrical Roller Bearing NJ205 With Brass Cage

    Ask Lasest Price
    Brand Name : SFT
    Model Number : NJ205
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 50000PCS/MONTH
    Delivery Time : 20-45DAYS
    • Product Details
    • Company Profile

    Single Row Cylindrical Roller Bearing NJ205 With Brass Cage

    Single Row Nj205 Bearing Cylindrical Roller Bearing

    Cylindrical roller bearing

    Cylindrical rollers and raceways are linear contact bearings. Load capacity, mainly bear radial load. The friction between the rolling body and the ferrule is small, suitable for high-speed rotation. According to the presence or absence of ribs, it can be divided into NU, NJ, NUP, N, NF and other single-row cylindrical roller bearings, and NNU, NN and other double-row cylindrical roller bearings. The bearing has a separable inner ring and outer ring structure.Generally use steel plate stamping cage, or copper alloy car body cage. But some also use polyamide forming cages

    Cylindrical Roller Bearings are designed to handle radial load at high performance and speed. Because of their particular design, These Bearings are one of the most suitable options for carrying multiple radial loads yet there are some other factors too that define the ultimate outcome or performance of this apparatus. In order to get the maximum results from these, you must optimize their cost, weight, performance, load capacity and durability. As these bearings are used for long term, you have to select the suitable variation according to your need carefully.

    Specification of High speed Cylindrical Roller Bearing :

    Model no

    d(mm)

    D(mm)

    T(mm)

    W(KG)

    NU204

    20

    47

    14

    0.11

    NU205

    25

    52

    15

    0.137

    NU206

    30

    62

    16

    0.211

    NU207

    35

    72

    17

    0.3

    NU208

    40

    80

    18

    0.382

    NU209

    45

    85

    19

    0.438

    NU210

    50

    90

    20

    0.493

    NU211

    55

    100

    21

    0.648

    NU212

    60

    110

    22

    0.84

    NU213

    65

    120

    23

    1.07

    NU214

    70

    125

    24

    1.16

    NU215

    75

    130

    25

    1.25

    NU216

    80

    140

    26

    1.5

    NU217

    85

    150

    27

    2.5

    NU218

    90

    160

    30

    2.35

    NU219

    95

    170

    32

    2.8

    NU220

    100

    180

    34

    3.42

    NU221

    105

    190

    36

    4.07

    NU222

    110

    200

    38

    4.73

    NU224

    120

    215

    40

    5.65

    NU226

    130

    230

    40

    6.5

    NU228

    140

    250

    42

    8.2

    NU230

    150

    270

    45

    10.4

    NU232

    160

    290

    48

    14.4

    NU234

    170

    310

    52

    17.7

    NU236

    180

    320

    52

    18.4

    NU238

    190

    340

    55

    22.3

    NU240

    200

    360

    58

    26.6

    NU244

    220

    400

    65

    37.3

    NU248

    240

    440

    72

    50.5

    NU252

    260

    480

    80

    67.1

    Advantages of High speed Cylindrical Roller Bearing :

    Cylindrical roller bearings feature high radial load capacity because the rollers and raceway are in linear contact. These bearings are suitable for applications that involve heavy radial and impact loading. They are also appropriate for high-speed applications inasmuch as they can be machined very accurately due to their structure. Having a separable inner or outer ring, these bearings can be easily mounted and dismounted.
