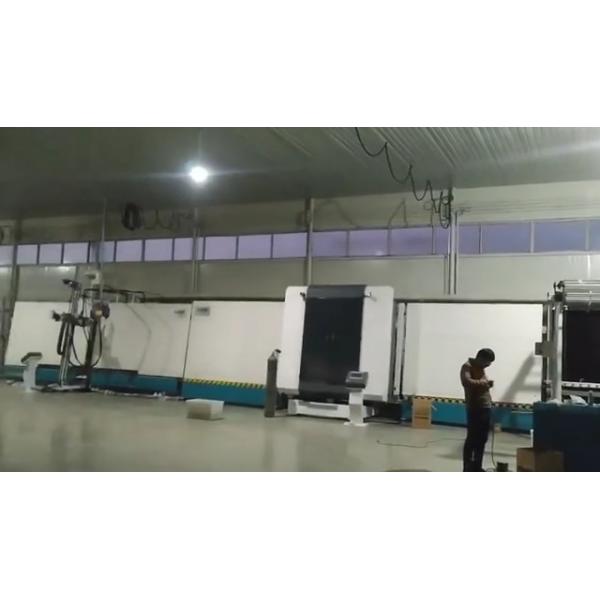

Automatic Insulated Glass Processing Line With Filling Argon Gas
Online LJBZ2535G
Technical parameters
| Max. glass size | 2500mm*3500mm |
| Max glass size for filling gas | 2500mm*3200mm |
| Min. glass size | 280mm*450mm |
| Glass thickness | 3-15mm |
| Insulating glass thickness | 60mm |
| Glass washing speed | 2-10m/min |
| Glass conveyor speed | 45m/min |
| Washing brushes | 3 pairs of soft brushes with 0.1mm hair |
| Water supply | Water consumption:0.5t/h conductivity:40μs/cm |
| Air supply | Flow: 0.8m/min |
| Air pressure | ≥0.8MPa |
| Total power | 3P 380V 50HZ 40KW |
| Dimension | 23500*3500*3700mm |
| Weight | 6500kg |
Description of Automatic Insulated Glass Processing Line
Insulated Glass Processing Line main purpose is to create high-end
quality, to provide customers with the latest production
technology, improve production efficiency, save production costs
and produce maximum benefits.
Main Features:
• Insulated Glass Processing has 7 sections: 01 transfer section;
02 washing machine; 03 discharge section; 04 inspection and
installation section; 05 transfer section; 06 pressing and filling
section; 07 discharge section
• Using Siemens servo motors
• PLC control system, touch screen interface
• Applicable to produce double glass, triple glass
• Step glass with optional edges and shaped glass
Details introduce of the Insulating glass line
• 01 transfer section
Automatic detection of offline Low-e film,Coating detection mechanism
• 02 washing machine
Advantages:
• Using 3Pairs of soft brushes with 0.1mm soft hair, can wash low-e
glass
• Pre-washing (Optional)
• The air knife can automatically adjust the width of the air knife
according to the thickness
• New air knife uses aluminum profile (Duckbill Air Knife), the
size of the air outlet is adjusted by the aluminum profile duck
beak. This can reduce the number of adjusting screws, ensure that
each screw is not loose, and avoid the resonance of the air knife.
• The operation box with washing speed display, can accurately
display washing speed (8-10m)
• Water tank automatic temperature control, water replenishing
system
• European silencer system
• Stainless steel material
• 03 discharge section
• Storage glass
• 04 inspection and installation section
It is easy to inspect and wipe the glass.The new structure of this section is changed to an inline beam
lifting structure (double beam).
• 05 transfer section
• It can be used according to actual needs when working.Automatic
measurement of glass thickness.
• 06 pressing and filling section
Advantages:
• Ultra-long (2500mm*3500mm) insulating glass can be compressed
twice
• Adopts conveyor belt to transfer glass, uses servo motor to press
glass
• The pressing plate can be opened for easy maintenance
• Pressing board with adjustable structure to guarantee
long-lasting service life
• Automatically fill argon gas with significant sealing effect,
higher argon content
• Fast reacting sensor for permanent control of gas filling process
• Gas concentration can reach more than 90%
• Set zones to fill different size of glass with follow-up sealing
method reduces argon loss
• Can set gas value and show the process of filling gas on the
touch screen
• No need to drill holes on the spacer frame
• Standard gas is Argon gas
• 07 discharge section
• Storage glass
• Can be connected to sealing machine
